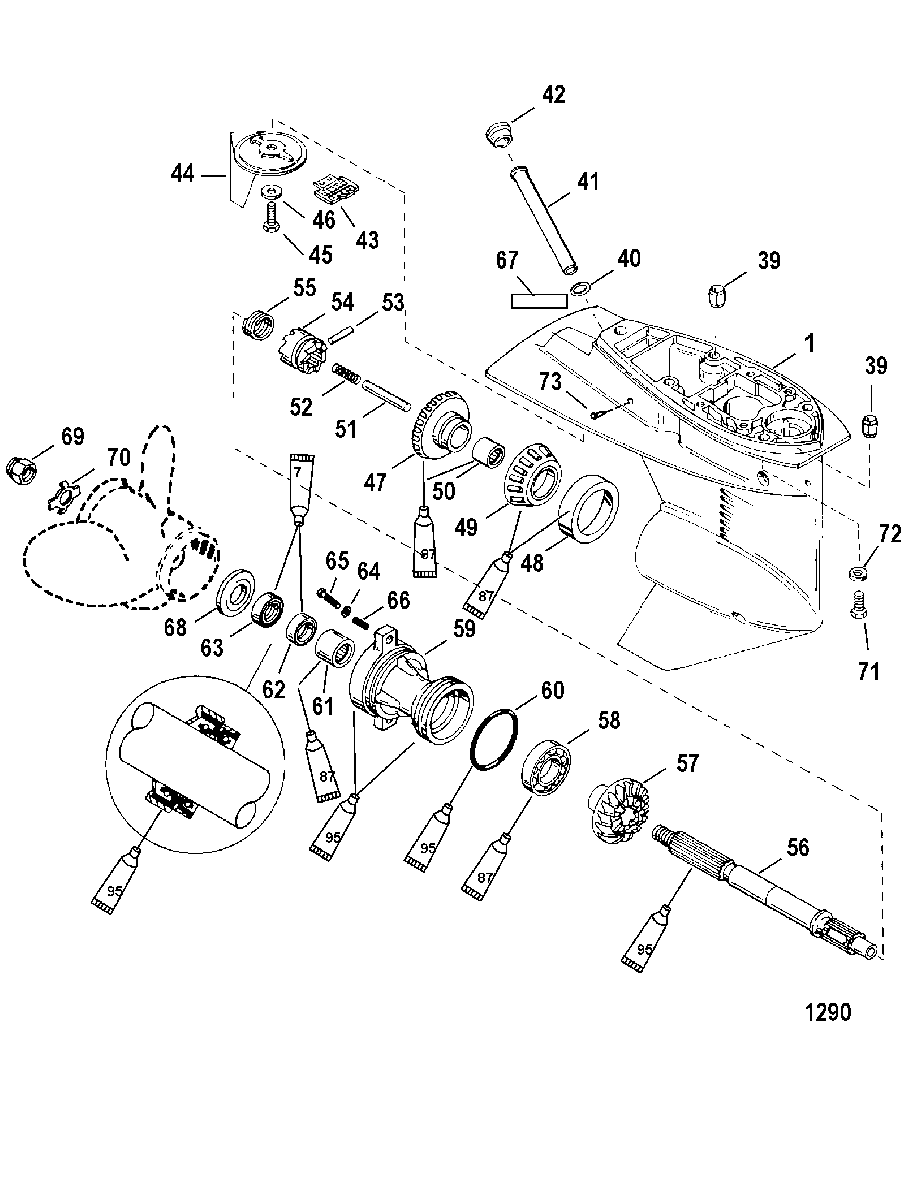

GEARHOUSING(PROPSHAFT)(1.83:1/2:1 GEAR RATIO) для Mercury - 40 (4-STROKE) 9944807 THRU 0P016999

  • №
    Артикул
    Название
  • -
    1682-821306T24 GEAR HOUSING ASSEMBLY
    (BLACK)(1.83:1) SN# 0G442710 & Up
    GEAR HOUSING ASSEMBLY
    (BLACK)(1.83:1) SN# 0G442710 & Up
  • -
    1682-821306T25 GEAR HOUSING ASSEMBLY
    (GRAY)(1.83:1) SN# 0G442710 & Up
    GEAR HOUSING ASSEMBLY
    (GRAY)(1.83:1) SN# 0G442710 & Up
  • -
    1682-821306T17 GEAR HOUSING ASSEMBLY
    (BLACK)(2:1) SN# 0G442709 & Below
    GEAR HOUSING ASSEMBLY
    (BLACK)(2:1) SN# 0G442709 & Below
  • -
    1682-821306T18 GEAR HOUSING ASSEMBLY
    (GRAY)(2:1) SN# 0G442709 & Below
    GEAR HOUSING ASSEMBLY
    (GRAY)(2:1) SN# 0G442709 & Below
  • 1
    1682-821306T12 GEAR HOUSING ASSEMBLY
    (BLACK)
    GEAR HOUSING ASSEMBLY
    (BLACK)
  • 1
    1682-821306T12 GEAR HOUSING ASSEMBLY
    (GRAY)
    GEAR HOUSING ASSEMBLY
    (GRAY)
  • 39
    17-821327 PIN, Dowel
    PIN, Dowel
  • 40
    27-823942 GASKET
    GASKET
  • 41
    32-8M0026108 TUBE
    TUBE
  • 42
    19-824928001 PLUG, Rubber
    PLUG, Rubber
  • 43
    821829 SCREEN
    SCREEN
  • 44
    822157T2 TRIM TAB
    TRIM TAB
  • 45
    10-82497020 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 46
    12-72397 WASHER
    WASHER
  • 47
    43-822162T2 GEAR ASSEMBLY, Forward (22 TEETH)
    (1.83:1 GEAR RATIO)
    GEAR ASSEMBLY, Forward (22 TEETH)
    (1.83:1 GEAR RATIO)
  • 47
    43-821315T1 GEAR ASSEMBLY, Forward (26 TEETH)
    (2:1 GEAR RATIO)
    GEAR ASSEMBLY, Forward (26 TEETH)
    (2:1 GEAR RATIO)
  • 48
    31-8M0103470 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 49
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 50
    31-41326 BEARING, Roller
    BEARING, Roller
  • 51
    821578 FOLLOWER, Cam
    FOLLOWER, Cam
  • 52
    24-8261991 SPRING
    SPRING
  • 53
    17-8M0020999 PIN
    PIN
  • 54
    52-821314T CLUTCH
    CLUTCH
  • 55
    24-38114 SPRING
    SPRING
  • 56
    44-8M0140441 PROPELLER SHAFT
    PROPELLER SHAFT
  • 57
    43-822163T1 GEAR, Reverse (22 TEETH)
    (1.83:1 GEAR RATIO)
    GEAR, Reverse (22 TEETH)
    (1.83:1 GEAR RATIO)
  • 57
    43-821312T1 GEAR, Reverse (26 TEETH)
    (2:1 GEAR RATIO)
    GEAR, Reverse (26 TEETH)
    (2:1 GEAR RATIO)
  • 58
    30-20839T BEARING, Ball
    BEARING, Ball
  • 59
    19291A3 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 60
    25-815460 O-RING
    O-RING
  • 61
    31-21700 BEARING, Needle
    BEARING, Needle
  • 62
    26-69188 SEAL, Oil
    SEAL, Oil
  • 63
    26-69189 SEAL, Oil
    SEAL, Oil
  • 64
    14-826613 TAB WASHER
    TAB WASHER
  • 64
    12-855941 WASHER, (.323 x .590 x .112) Stainless Steel
    (USE W/THREADED INSERT)
    WASHER, (.323 x .590 x .112) Stainless Steel
    (USE W/THREADED INSERT)
  • 65
    10-4000353 SCREW, (M8 x 25)
    (USE W/TAB WASHER)
    SCREW, (M8 x 25)
    (USE W/TAB WASHER)
  • 65
    10-85594030 SCREW, (M8 x 30)
    (USE W/THREADED INSERT)
    SCREW, (M8 x 30)
    (USE W/THREADED INSERT)
  • 66
    8227731 INSERT, Threaded
    INSERT, Threaded
  • 67
    NSS NOT SOLD SEPARATE, Decal-Gear Ratio
    NOT SOLD SEPARATE, Decal-Gear Ratio
  • 68
    73345A1 THRUST HUB
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    THRUST HUB
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
  • 69
    11-69578Q1 PROP NUT KIT
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    PROP NUT KIT
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
  • 70
    14-76281 TAB WASHER
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    TAB WASHER
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
  • 71
    10-4000380 SCREW, (M10 x 45)
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    SCREW, (M10 x 45)
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
  • 72
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    WASHER, (.453 x .812 x .105) Stainless Steel
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
  • 73
    19-95925 PLUG
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    PLUG
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
  • -
    823547A2 SEAL KIT
    SEAL KIT
