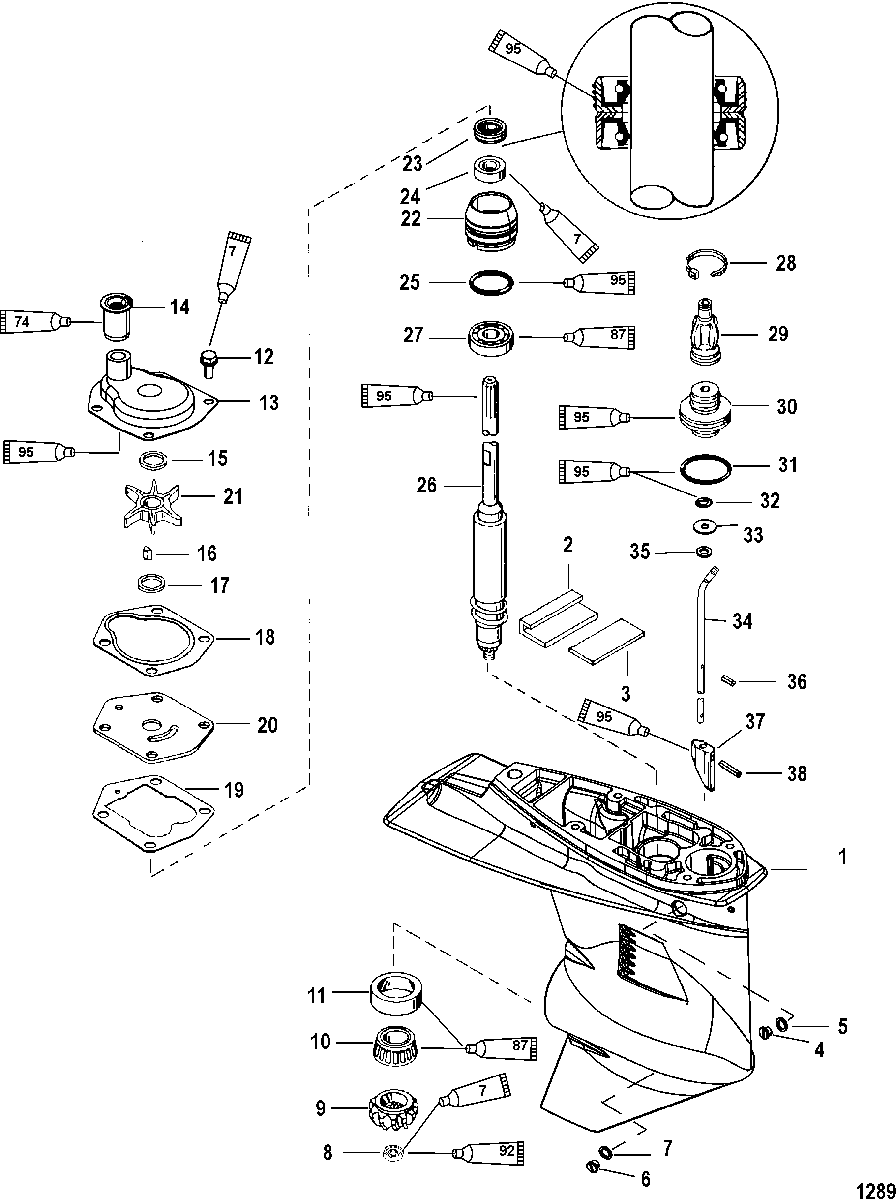

Gear Housing(Driveshaft-2:1 Gear Ratio) для Mercury - 40 (4-STROKE) 0P017000 THRU 0P153499
-
№АртикулНазвание
-
-1682-821306T54 GEAR HOUSING ASSEMBLY, (3.44 Inch/87.37 mm Torpedo Diameter) Complete
(SHORT)GEAR HOUSING ASSEMBLY, (3.44 Inch/87.37 mm Torpedo Diameter) Complete
(SHORT) -
-1682-821306T17 GEAR HOUSING ASSEMBLY, Complete
(LONG)GEAR HOUSING ASSEMBLY, Complete
(LONG) -
11682-821306T12 GEAR HOUSING ASSEMBLY, Basic
(BASIC)GEAR HOUSING ASSEMBLY, Basic
(BASIC) -
2818226A1 SEAL/PLATE KITSEAL/PLATE KIT
-
3NSS NOT SOLD SEPARATE, PlateNOT SOLD SEPARATE, Plate
-
410-79953Q04 SCREW KIT, (.375-16 x .250) (.375-16 X .25)SCREW KIT, (.375-16 x .250) (.375-16 X .25)
-
512-191833 WASHER, FiberWASHER, Fiber
-
610-79953Q04 SCREW KIT, (.375-16 x .250)SCREW KIT, (.375-16 x .250)
-
622-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
(MAGNETIC)FITTING KIT, Magnetic, Plug Fill/Drain
(MAGNETIC) -
712-191833 WASHER, FiberWASHER, Fiber
-
811-55910 NUT, (.437-20)NUT, (.437-20)
-
943-821326T1 GEAR, Pinion - 13 TeethGEAR, Pinion - 13 Teeth
-
1031-821321A2 BEARING ASSEMBLYBEARING ASSEMBLY
-
11NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
1210-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1346-821351A3 HOUSING ASSEMBLY, Water Pump UpperHOUSING ASSEMBLY, Water Pump Upper
-
1443023 SEAL
(SHORT - 1-3/4)SEAL
(SHORT - 1-3/4) -
148235471 SEAL
(LONG - 2-1/4)SEAL
(LONG - 2-1/4) -
1512-866451 WASHERWASHER
-
1628-8M0032838 KEYKEY
-
1712-866451 WASHERWASHER
-
1827-822189 GASKET, Upper Water PumpGASKET, Upper Water Pump
-
1927-822217 GASKET, Lower Water Pump (LOWER)GASKET, Lower Water Pump (LOWER)
-
208213542 FACE PLATEFACE PLATE
-
2147-8508910 IMPELLERIMPELLER
-
2246-821307A2 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
2326-821309 SEALSEAL
-
2426-821310 SEALSEAL
-
2525-821308 O-RING, (1.421 x .139)O-RING, (1.421 x .139)
-
2645-826193T2 DRIVESHAFT
(SHORT)DRIVESHAFT
(SHORT) -
2645-826194A1 DRIVESHAFT
(LONG)DRIVESHAFT
(LONG) -
2730-821311 BEARING, BallBEARING, Ball
-
2854-8M0064024 TIE STRAPTIE STRAP
-
29822158 BOOTBOOT
-
30821827 RETAINERRETAINER
-
3125-26855 O-RING, (1.609 x .139)O-RING, (1.609 x .139)
-
3225-85594 O-RING, (.239 x .174)O-RING, (.239 x .174)
-
3312-814803 WASHERWASHER
-
34827865A2 SHIFT SHAFT
(SHORT)SHIFT SHAFT
(SHORT) -
34827865A1 SHIFT SHAFT
(LONG)SHIFT SHAFT
(LONG) -
3512-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
3617-85593 PIN, (.078 x .437)PIN, (.078 x .437)
-
378213161 CAM, ShiftCAM, Shift
-
3817-822369 PIN, (.125 x .625)PIN, (.125 x .625)
-
-823547A2 SEAL KITSEAL KIT
-
-821354A2 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
