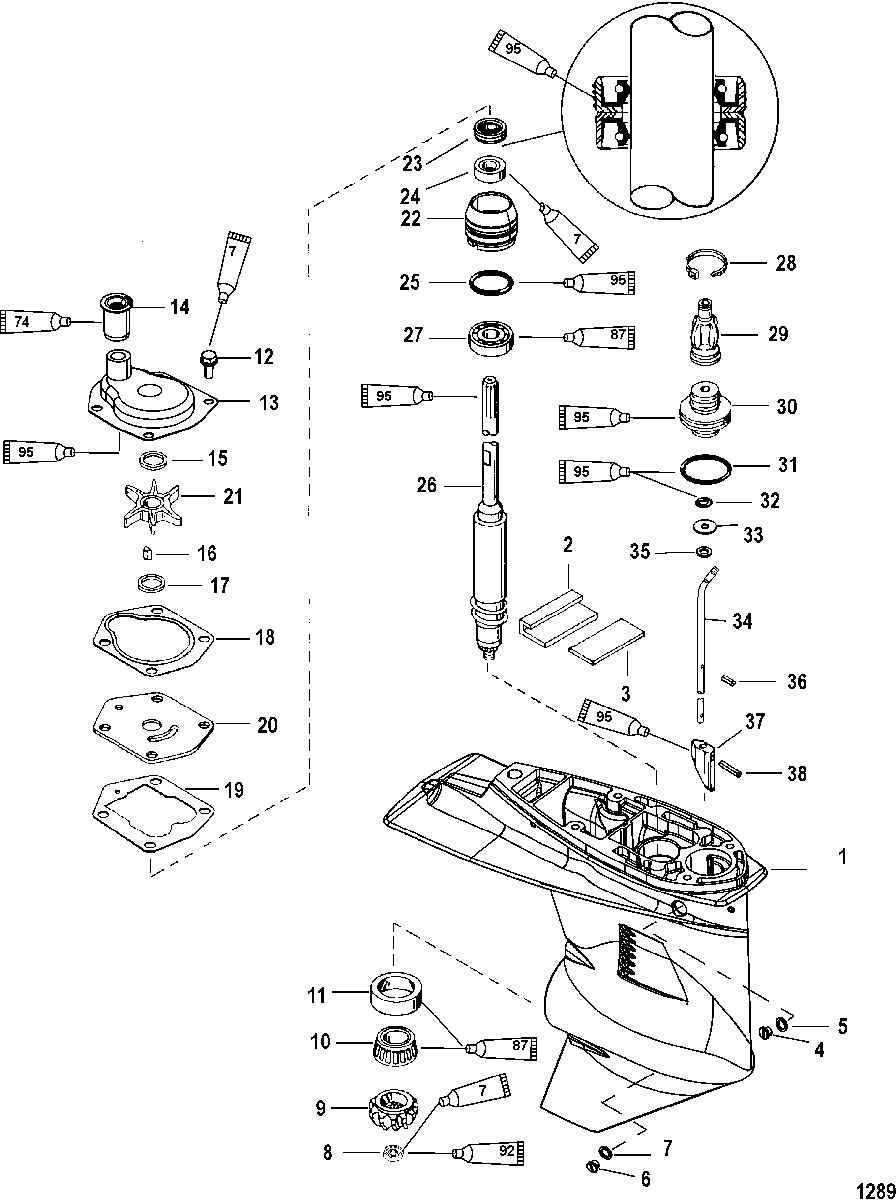

GEARHOUSING(DRIVESHAFT)(1.83:1/2:1 GEAR RATIO) для Mercury - 40 (4-STROKE) 0G231123 THRU 0G760299

  • №
    Артикул
    Название
  • -
    1682-821306T24 GEAR HOUSING ASSEMBLY
    (BLACK)(1.83:1) SN# 0G442710 & Up
    GEAR HOUSING ASSEMBLY
    (BLACK)(1.83:1) SN# 0G442710 & Up
  • -
    1682-821306T25 GEAR HOUSING ASSEMBLY
    (GRAY)(1.83:1) SN# 0G442710 & Up
    GEAR HOUSING ASSEMBLY
    (GRAY)(1.83:1) SN# 0G442710 & Up
  • -
    1682-821306T17 GEAR HOUSING ASSEMBLY
    (BLACK)(2:1) SN# 0G442709 & Below
    GEAR HOUSING ASSEMBLY
    (BLACK)(2:1) SN# 0G442709 & Below
  • -
    1682-821306T18 GEAR HOUSING ASSEMBLY
    (GRAY)(2:1) SN# 0G442709 & Below
    GEAR HOUSING ASSEMBLY
    (GRAY)(2:1) SN# 0G442709 & Below
  • 1
    1682-821306T12 GEAR HOUSING ASSEMBLY
    (BASIC-BLACK)
    GEAR HOUSING ASSEMBLY
    (BASIC-BLACK)
  • 1
    1682-821306T12 GEAR HOUSING ASSEMBLY
    (BASIC-GRAY)
    GEAR HOUSING ASSEMBLY
    (BASIC-GRAY)
  • 2
    818226A1 SEAL/PLATE KIT
    SEAL/PLATE KIT
  • 3
    NSS NOT SOLD SEPARATE, Plate
    (PART OF 818226A1)
    NOT SOLD SEPARATE, Plate
    (PART OF 818226A1)
  • 4
    10-79953Q04 SCREW KIT, (.375-16 x .250)
    SCREW KIT, (.375-16 x .250)
  • 5
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 6
    22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
    FITTING KIT, Magnetic, Plug Fill/Drain
  • 7
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 8
    11-55910 NUT, (.437-20)
    NUT, (.437-20)
  • 9
    43-822161T2 GEAR, Pinion (12 TEETH)
    (1.83:1 GEAR RATIO)
    GEAR, Pinion (12 TEETH)
    (1.83:1 GEAR RATIO)
  • 9
    43-821326T1 GEAR, Pinion (13 TEETH)
    (2:1 GEAR RATIO)
    GEAR, Pinion (13 TEETH)
    (2:1 GEAR RATIO)
  • 10
    31-821321A2 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 11
    NSS NOT SOLD SEPARATE, Cup (PART OF 31-821321A2)
    NOT SOLD SEPARATE, Cup (PART OF 31-821321A2)
  • 12
    10-8248324 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 13
    46-821351A3 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 14
    8235471 SEAL
    SEAL
  • 15
    12-866451 WASHER
    WASHER
  • 16
    28-8M0032838 KEY
    KEY
  • 17
    12-866451 WASHER
    WASHER
  • 18
    27-822189 GASKET, Upper Water Pump
    GASKET, Upper Water Pump
  • 19
    27-822217 GASKET, Lower Water Pump
    GASKET, Lower Water Pump
  • 20
    8213542 FACE PLATE
    FACE PLATE
  • 21
    47-8508910 IMPELLER
    IMPELLER
  • 22
    46-821307A2 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • 23
    26-821309 SEAL
    SEAL
  • 24
    26-821310 SEAL
    SEAL
  • 25
    25-821308 O-RING, (1.421 x .139)
    O-RING, (1.421 x .139)
  • 26
    45-826194A1 DRIVESHAFT
    (30-3/4)(LONG)
    DRIVESHAFT
    (30-3/4)(LONG)
  • 26
    45-826195A1 DRIVESHAFT
    (33-1/3)(LL)
    DRIVESHAFT
    (33-1/3)(LL)
  • 27
    30-821311 BEARING, Ball
    BEARING, Ball
  • 28
    54-8M0064024 TIE STRAP
    TIE STRAP
  • 29
    822158 BOOT
    BOOT
  • 30
    821827 RETAINER
    RETAINER
  • 31
    25-26855 O-RING, (1.609 x .139)
    O-RING, (1.609 x .139)
  • 32
    25-85594 O-RING, (.239 x .174)
    O-RING, (.239 x .174)
  • 33
    12-814803 WASHER
    WASHER
  • 34
    827865A1 SHIFT SHAFT
    (31.14)(LONG)
    SHIFT SHAFT
    (31.14)(LONG)
  • 34
    8278652 SHIFT SHAFT
    (33.64)(LL)
    SHIFT SHAFT
    (33.64)(LL)
  • 35
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 36
    17-85593 PIN, (.078 x .437)
    PIN, (.078 x .437)
  • 37
    8213161 CAM, Shift
    CAM, Shift
  • 38
    17-822369 PIN, (.125 x .625)
    PIN, (.125 x .625)
  • -
    823547A2 SEAL KIT
    SEAL KIT
  • -
    821354A2 REPAIR KIT, Water Pump
    REPAIR KIT, Water Pump
