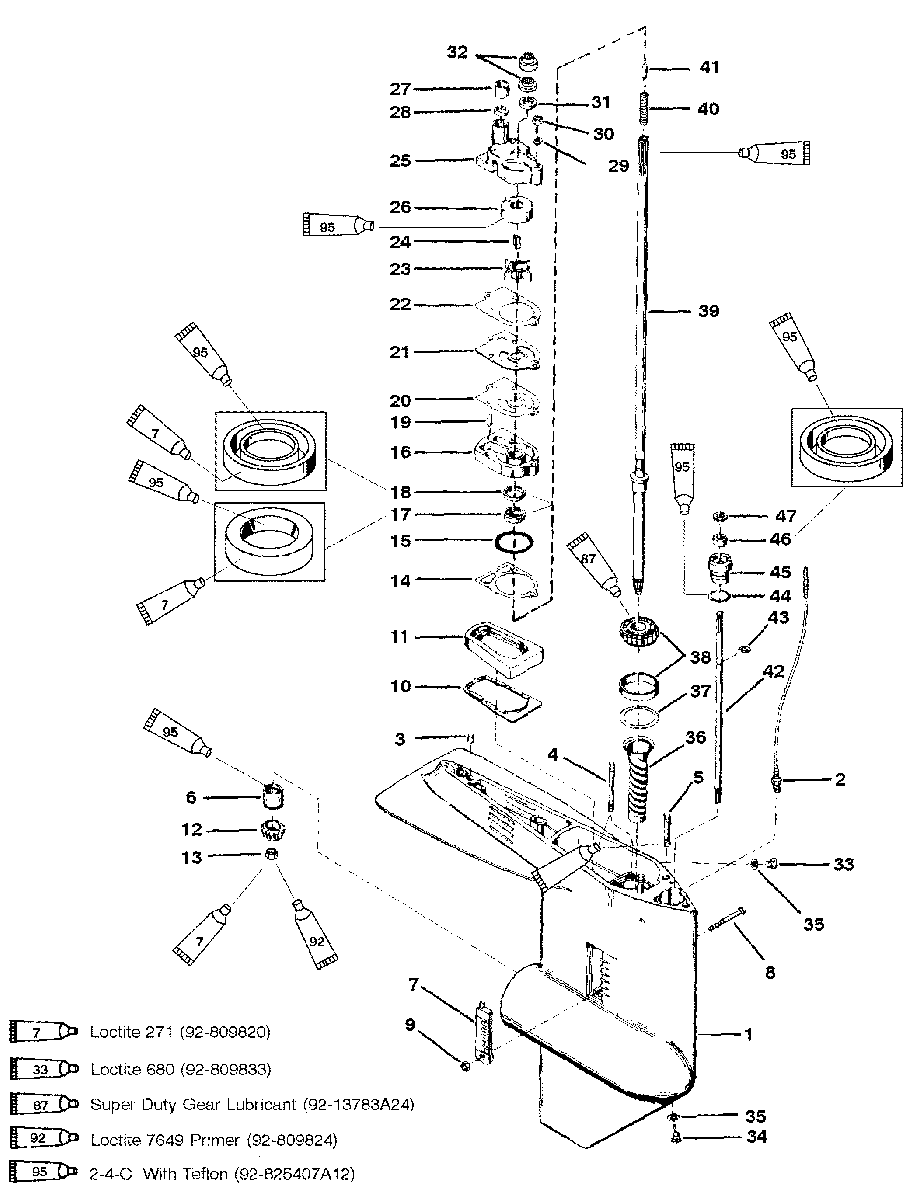

GEAR HOUSING (DRIVE SHAFT) для Mercury - 40 (4 CYL.) 9570790 AND UP

  • №
    Артикул
    Название
  • 1
    893943A01 SHOCK ROD ASSEMBLY KIT
    SHOCK ROD ASSEMBLY KIT
  • 2
    813428 CYLINDER END CAP
    CYLINDER END CAP
  • 3
    813429 SHOCK PISTON ASSEMBLY
    SHOCK PISTON ASSEMBLY
  • 4
    813432A3 CYLINDER REBUILD KIT
    CYLINDER REBUILD KIT
  • 5
    893903A01 MEMORY PISTON KIT (SEE FOOTNOTE & ILLUSTRATION)
    SUPERSEDES TO ANOTHER PART NUMBER
    MEMORY PISTON KIT (SEE FOOTNOTE & ILLUSTRATION)
    SUPERSEDES TO ANOTHER PART NUMBER
  • 5
    810776 MEMORY PISTON KIT (SEE FOOTNOTE & ILLUSTRATION)
    MEMORY PISTON KIT (SEE FOOTNOTE & ILLUSTRATION)
  • 6
    810777 CYLINDER KIT
    DESIGN I SEE ILLUSTRATION
    CYLINDER KIT
    DESIGN I SEE ILLUSTRATION
  • 7
    893919A01 SCREW AND SEAL KIT
    DESIGN I SEE ILLUSTRATION
    SCREW AND SEAL KIT
    DESIGN I SEE ILLUSTRATION
  • 8
    811227 PUMP
    DESIGN I SEE ILLUSTRATION
    PUMP
    DESIGN I SEE ILLUSTRATION
  • 9
    813441 MANIFOLD ASSEMBLY
    DESIGN I SEE ILLUSTRATION
    MANIFOLD ASSEMBLY
    DESIGN I SEE ILLUSTRATION
  • 6
    8M0055016 CYLINDER KIT
    DESIGN II SEE ILLUSTRATION
    CYLINDER KIT
    DESIGN II SEE ILLUSTRATION
  • 7
    811678A6 SCREW AND SEAL KIT
    DESIGN II SEE ILLUSTRATION
    SCREW AND SEAL KIT
    DESIGN II SEE ILLUSTRATION
  • 8
    811227 PUMP
    DESIGN II SEE ILLUSTRATION
    PUMP
    DESIGN II SEE ILLUSTRATION
  • 9
    811225 MANIFOLD ASSEMBLY
    DESIGN II SEE ILLUSTRATION
    MANIFOLD ASSEMBLY
    DESIGN II SEE ILLUSTRATION
  • 10
    10-813436 SCREW KIT
    SCREW KIT
  • 11
    813437 DRIVE SHAFT
    DRIVE SHAFT
  • 12
    813438 SCREW AND DOWEL PIN KIT
    SCREW AND DOWEL PIN KIT
  • 13
    25-813439A3 SEAL KIT
    SEAL KIT
  • 14
    813434A1 RESERVOIR
    RESERVOIR
  • 15
    22-8134351 PLUG KIT
    PLUG KIT
  • 16
    893929A01 RELIEF VALVE KIT
    RELIEF VALVE KIT
  • 17
    84-811698 WIRING HARNESS
    WIRING HARNESS
  • 18
    813445 RESERVOIR CAP KIT
    RESERVOIR CAP KIT
  • 19
    10-813446 SCREW-CAP
    SCREW-CAP
  • 20
    813447 MOTOR KIT
    MOTOR KIT
  • 21
    813448 END CAP
    END CAP
  • 22
    813449A1 ARMATURE
    ARMATURE
  • 23
    12-813450 THRUST WASHER KIT
    THRUST WASHER KIT
  • 24
    813451 SHELL AND MAGNET KIT
    SHELL AND MAGNET KIT
  • 25
    813452 END FRAME KIT
    END FRAME KIT
  • 26
    10-813453 BOLT AND NUT KIT
    BOLT AND NUT KIT
  • 27
    17-19607 PIN
    PIN
  • 28
    17-821539 GROOVE PIN
    GROOVE PIN
  • -
    854472A3 TRIM PUMP, COMPLETE
    (INCLUDES ALL PARTS ON THIS PAGE)
    TRIM PUMP, COMPLETE
    (INCLUDES ALL PARTS ON THIS PAGE)
  • -
    1643-9539A4 GEAR HOUSING
    (SHORT BLACK) S/N USA-0D279349 & BELOW / BEL 9793444 & BELOW
    GEAR HOUSING
    (SHORT BLACK) S/N USA-0D279349 & BELOW / BEL 9793444 & BELOW
  • -
    1643-9539A6 GEAR HOUSING
    (SHORT GRAY) S/N USA-0D279349 & BELOW / BEL 9793444 & BELOW
    GEAR HOUSING
    (SHORT GRAY) S/N USA-0D279349 & BELOW / BEL 9793444 & BELOW
  • -
    1643-9539A5 GEAR HOUSING
    (LONG BLACK) S/N USA-0D279349 & BELOW / BEL 9793444 & BELOW
    GEAR HOUSING
    (LONG BLACK) S/N USA-0D279349 & BELOW / BEL 9793444 & BELOW
  • -
    1643-9539A7 GEAR HOUSING
    (LONG GRAY) S/N USA-0D279349 & BELOW / BEL 9793444 & BELOW
    GEAR HOUSING
    (LONG GRAY) S/N USA-0D279349 & BELOW / BEL 9793444 & BELOW
  • -
    1643-9539T15 GEAR HOUSING
    (SHORT BLACK) S/N USA-0D279350 & UP / BEL 9793445 & UP
    GEAR HOUSING
    (SHORT BLACK) S/N USA-0D279350 & UP / BEL 9793445 & UP
  • -
    1643-9539A16 GEAR HOUSING
    (SHORT GRAY) S/N USA-0D279350 & UP / BEL 9793445 & UP
    GEAR HOUSING
    (SHORT GRAY) S/N USA-0D279350 & UP / BEL 9793445 & UP
  • -
    1643-9539T18 GEAR HOUSING
    (LONG BLACK) S/N USA-0D279350 & UP / BEL 9793445 & UP
    GEAR HOUSING
    (LONG BLACK) S/N USA-0D279350 & UP / BEL 9793445 & UP
  • -
    1643-9539T18 GEAR HOUSING
    (LONG GRAY) S/N USA-0D279350 & UP / BEL 9793445 & UP
    GEAR HOUSING
    (LONG GRAY) S/N USA-0D279350 & UP / BEL 9793445 & UP
  • -
    1643-9539T12 GEAR HOUSING
    (TRACKER GRAPHITE GRAY)
    GEAR HOUSING
    (TRACKER GRAPHITE GRAY)
  • 1
    1643-9539T1 GEAR HOUSING ASSEMBLY
    (BLACK)
    GEAR HOUSING ASSEMBLY
    (BLACK)
  • 1
    1643-9539T1 GEAR HOUSING ASSEMBLY
    (GRAY)
    GEAR HOUSING ASSEMBLY
    (GRAY)
  • 1
    1643-9539T1 GEAR HOUSING ASSEMBLY
    (TRACKER GRAHITE GRAY)
    GEAR HOUSING ASSEMBLY
    (TRACKER GRAHITE GRAY)
  • 2
    22-85822A10 CONNECTOR ASSEMBLY-SPEEDOMETER
    CONNECTOR ASSEMBLY-SPEEDOMETER
  • 3
    17-8M0084726 DOWEL PIN
    DOWEL PIN
  • 4
    16-33778 STUD (2-5/8 IN.)
    STUD (2-5/8 IN.)
  • 5
    16-8M0034453 STUD
    STUD
  • 6
    31-62091T ROLLER BEARING
    ROLLER BEARING
  • 7
    72849A1 SCREEN ASSEMBLY
    SCREEN ASSEMBLY
  • 8
    10-36070 SCREW
    SCREW
  • 9
    11-859124 NUT
    NUT
  • 10
    92815 PLATE
    PLATE
  • 11
    37721001 SEAL
    SEAL
  • 12
    43-98097T PINION GEAR
    PINION GEAR
  • 13
    11-55910 NUT
    NUT
  • 14
    27-19552 GASKET
    GASKET
  • 15
    25-26722 O-RING
    O-RING
  • 16
    46-77177A1 WATER PUMP BASE
    WATER PUMP BASE
  • 17
    26-79831 OIL SEAL
    OIL SEAL
  • 18
    26-90562 OIL SEAL
    OIL SEAL
  • 19
    17-8M0084627 DOWEL PIN
    DOWEL PIN
  • 20
    27-19553 GASKET
    GASKET
  • 21
    32768 FACE PLATE
    FACE PLATE
  • 22
    27-19551 GASKET
    GASKET
  • 23
    47-89983T IMPELLER
    IMPELLER
  • 24
    28-8M0032837 KEY
    KEY
  • -
    27-85491A90 ENGINE GASKET SET
    ENGINE GASKET SET
  • -
    26-79831A1 SEAL KIT
    SEAL KIT
  • -
    46-77177A3 WATER PUMP REPAIR KIT
    WATER PUMP REPAIR KIT
