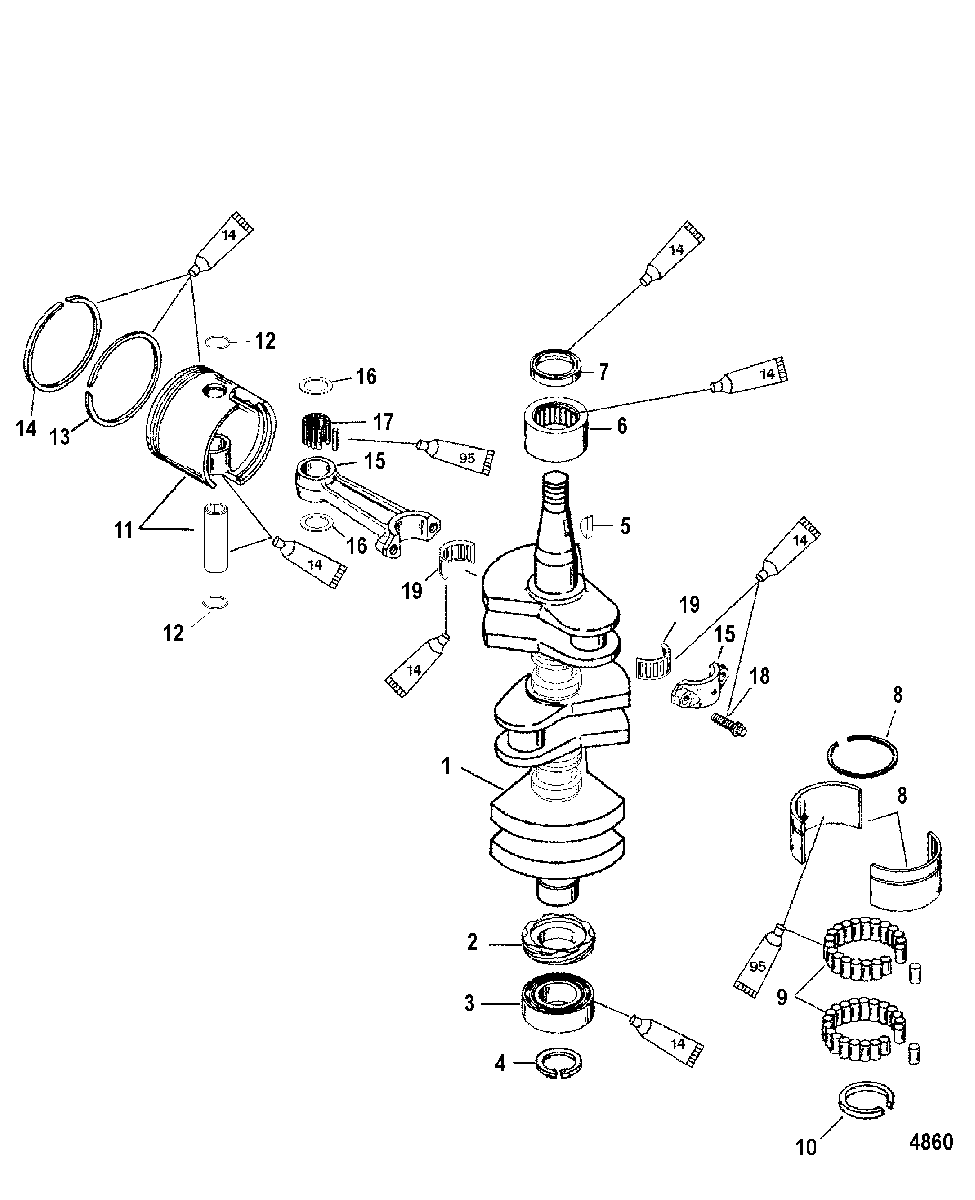

Crankshaft, Pistons and Connection Rods для Mercury - 40 (3 CYL.) 0P325500 & Up
-
№АртикулНазвание
-
12411-827954T3 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
243-43019A2 GEAR ASSEMBLYGEAR ASSEMBLY
-
330-63742T BEARING, BallBEARING, Ball
-
453-812877 RING, RetainingRING, Retaining
-
528-91800 KEY, WoodruffKEY, Woodruff
-
631-818889A1 BEARING ASSEMBLY, Roller, TopBEARING ASSEMBLY, Roller, Top
-
726-8173971 SEAL, OilSEAL, Oil
-
8827955A2 BEARING ASSEMBLYBEARING ASSEMBLY
-
9NSS NOT SOLD SEPARATE, RollerNOT SOLD SEPARATE, Roller
-
10NSS NOT SOLD SEPARATE, Ring-SealNOT SOLD SEPARATE, Ring-Seal
-
11705-850026T1 PISTON ASSEMBLY
(Standard)PISTON ASSEMBLY
(Standard) -
11705-850026T2 PISTON
(.015 Oversize)PISTON
(.015 Oversize) -
1253-857196 LOCK RINGLOCK RING
-
1339-831255A6 RING SET, Piston
(Standard)RING SET, Piston
(Standard) -
1339-821695A6 RING SET, Piston
(.015 Oversize)RING SET, Piston
(.015 Oversize) -
14NSS NOT SOLD SEPARATE, Piston Ring-Chrome FaceNOT SOLD SEPARATE, Piston Ring-Chrome Face
-
15640-9612A6 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1612-8M0012298 WASHERWASHER
-
1729-47270 BEARINGBEARING
-
1810-91012 SCREW, (.250-28 Special)SCREW, (.250-28 Special)
-
1931-8M0045428 BEARING KITBEARING KIT
-
-852067T98 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
