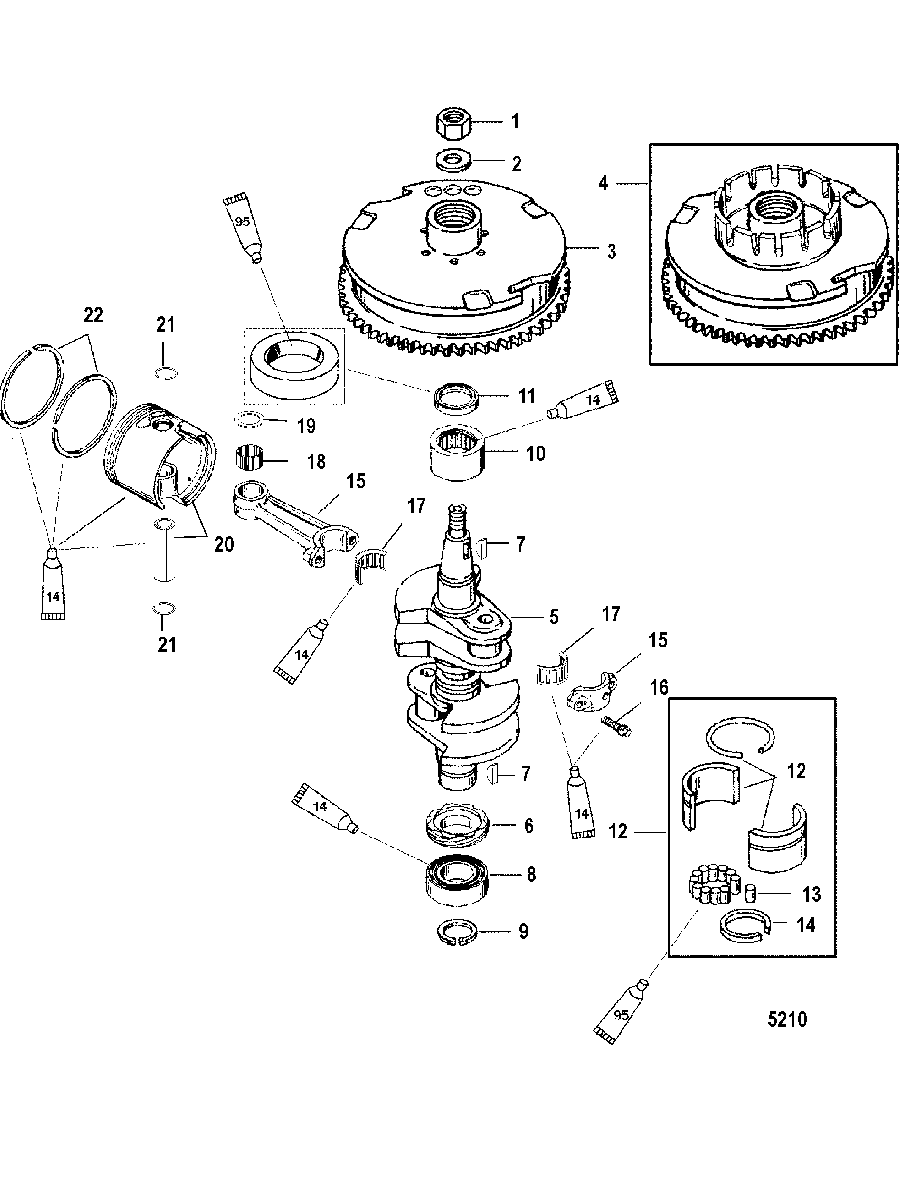

Crankshaft/Piston/Flywheel для Mercury - 40 (2 CYL.) 1B000001 & Up

  • №
    Артикул
    Название
  • 1
    11-42979 NUT, (M16)
    NUT, (M16)
  • 2
    12-33001 WASHER, (.641 x 1.250 x .190)
    WASHER, (.641 x 1.250 x .190)
  • 3
    261-859233T23 FLYWHEEL
    (Electric)
    FLYWHEEL
    (Electric)
  • 4
    261-859233T24 FLYWHEEL
    (Manual)
    FLYWHEEL
    (Manual)
  • 5
    493-821369T01 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 6
    43-43019A2 GEAR ASSEMBLY, Driver
    GEAR ASSEMBLY, Driver
  • 7
    28-91800 KEY, Woodruff
    KEY, Woodruff
  • 8
    30-63742T BEARING, Ball
    BEARING, Ball
  • 9
    53-812877 RING, Retaining
    RING, Retaining
  • 10
    31-818889A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 11
    26-8173971 SEAL, Oil
    SEAL, Oil
  • 12
    827955A2 BEARING ASSEMBLY, Center Main
    BEARING ASSEMBLY, Center Main
  • 13
    NSS NOT SOLD SEPARATE, Roller
    NOT SOLD SEPARATE, Roller
  • 14
    NSS NOT SOLD SEPARATE, Ring-Seal
    NOT SOLD SEPARATE, Ring-Seal
  • 15
    640-9612A6 CONNECTING ROD ASSEMBLY
    (With Steel Bearings)
    CONNECTING ROD ASSEMBLY
    (With Steel Bearings)
  • 15
    640-9612A6 CONNECTING ROD ASSEMBLY
    (With Plastic Bearings)
    CONNECTING ROD ASSEMBLY
    (With Plastic Bearings)
  • 16
    10-91012 SCREW, (.250-28 Special)
    SCREW, (.250-28 Special)
  • 17
    31-8M0045428 BEARING KIT
    (Steel)
    BEARING KIT
    (Steel)
  • 17
    31-8M0045428 BEARING KIT
    (Plastic)
    BEARING KIT
    (Plastic)
  • 18
    29-47270 BEARING
    BEARING
  • 19
    12-8M0012298 WASHER
    WASHER
  • 20
    705-850026T3 PISTON
    (Standard)
    PISTON
    (Standard)
  • 20
    705-850026T2 PISTON
    (.015 Oversize)
    PISTON
    (.015 Oversize)
  • 21
    53-857196 LOCK RING
    LOCK RING
  • 22
    39-821695A4 RING SET, Piston
    (Standard)
    RING SET, Piston
    (Standard)
  • 22
    39-821695A1 RING SET, Piston
    (.015 Oversize)
    RING SET, Piston
    (.015 Oversize)
  • -
    808569T02 POWERHEAD ASSEMBLY
    30 HP
    POWERHEAD ASSEMBLY
    30 HP
  • -
    61-8M0063311 POWERHEAD ASSEMBLY
    40 HP
    POWERHEAD ASSEMBLY
    40 HP
