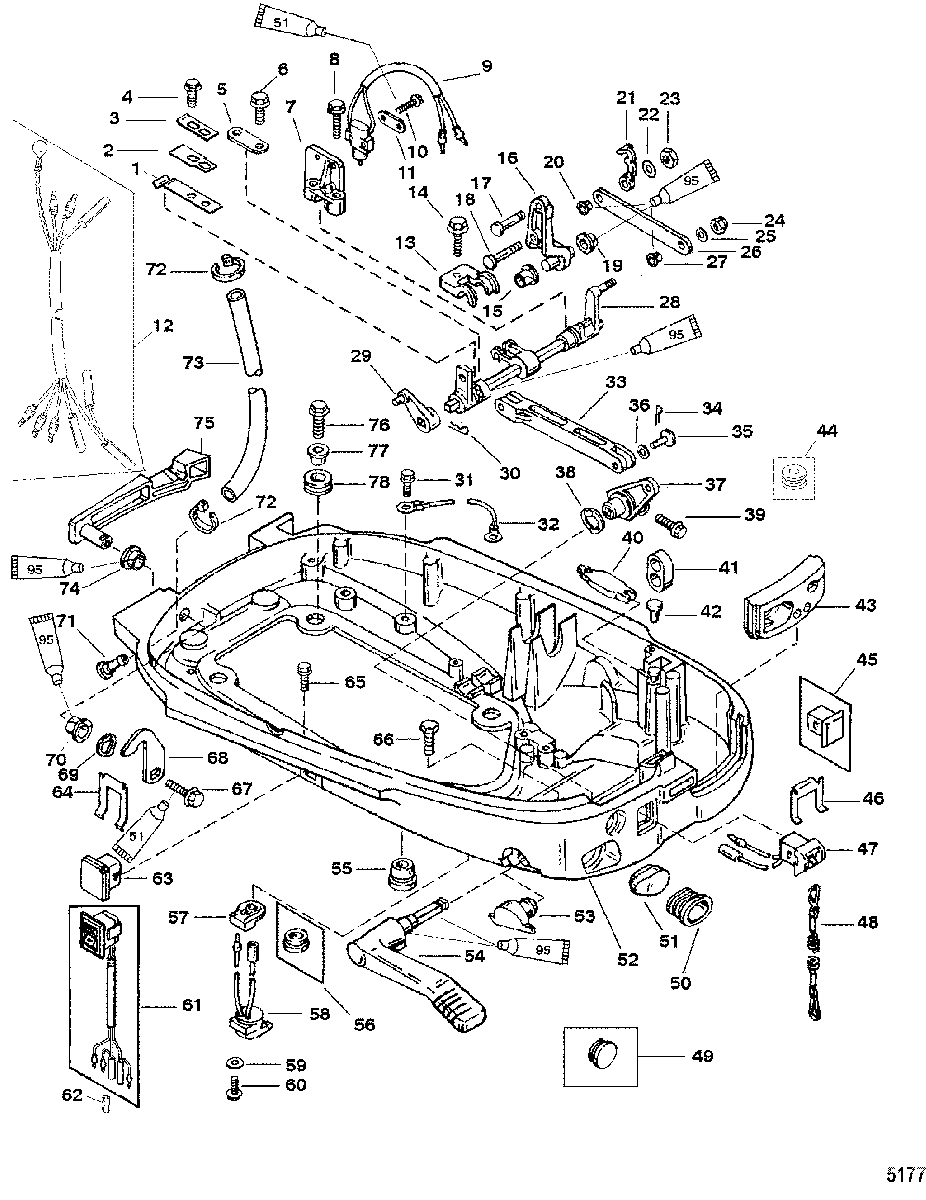

Bottom Cowl для Mercury - 40 (2 CYL.) 0G760300 THRU 0T979999

  • №
    Артикул
    Название
  • 1
    24-824992 SPRING, Detent
    SPRING, Detent
  • 2
    24-824993 SPRING, Backing
    SPRING, Backing
  • 3
    824994 SPRING, Plate
    SPRING, Plate
  • 4
    10-82191916 SCREW, (M5 x 14)
    SCREW, (M5 x 14)
  • 5
    8280471 STRAP
    STRAP
  • 6
    10-4006731 SCREW, (M6 x 16) Stainless Steel
    SCREW, (M6 x 16) Stainless Steel
  • 7
    8M0039049 CLAMP, Horizontal Shift Shaft
    CLAMP, Horizontal Shift Shaft
  • 8
    10-40011130 SCREW, (M6 x 30) Stainless Steel
    SCREW, (M6 x 30) Stainless Steel
  • 9
    87-8M0052927 SWITCH
    SWITCH
  • 10
    10-88075020 SCREW, (M3.5 x 20) Stainless Steel
    SCREW, (M3.5 x 20) Stainless Steel
  • 11
    824923 PLATE, Switch
    PLATE, Switch
  • 12
    84-852375A4 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 13
    8M0036802 CAP, Intermediate Lever
    CAP, Intermediate Lever
  • 14
    10-4006731 SCREW, (M6 x 16) Stainless Steel
    SCREW, (M6 x 16) Stainless Steel
  • 15
    23-26954 BUSHING
    BUSHING
  • 16
    8M0041741 LEVER, Intermediate
    LEVER, Intermediate
  • 17
    42927 INSERT
    INSERT
  • 18
    17-8224561 PIN
    PIN
  • 19
    23-26954 BUSHING
    BUSHING
  • 20
    23-48475 BUSHING
    BUSHING
  • 21
    822459 RETAINER, Cable
    RETAINER, Cable
  • 22
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 23
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 24
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 25
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 26
    822470 SHIFT LINK
    SHIFT LINK
  • 27
    23-48475 BUSHING
    BUSHING
  • 28
    821483A6 SHIFT SHAFT, Horizontal, Horizontal
    SHIFT SHAFT, Horizontal, Horizontal
  • 29
    821487 LEVER, Interlock Actuating
    LEVER, Interlock Actuating
  • 30
    18-26811 COTTER PIN
    COTTER PIN
  • 31
    10-878607 SCREW, (#10-16 x .380), Self Tap
    SCREW, (#10-16 x .380), Self Tap
  • 32
    84-88807A28 CABLE ASSEMBLY, Black (7.50 Inch)
    CABLE ASSEMBLY, Black (7.50 Inch)
  • 33
    8M0037997 SHIFT ROD
    SHIFT ROD
  • 34
    18-210711 COTTER PIN
    COTTER PIN
  • 35
    17-8251851 PIN, Shfit Rod
    PIN, Shfit Rod
  • 36
    13-827418 LOCKWASHER
    LOCKWASHER
  • 37
    822011 LEVER, Shift
    LEVER, Shift
  • 38
    13-825273 WAVE WASHER
    WAVE WASHER
  • 39
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 40
    98889 LATCH
    LATCH
  • 41
    39519 CUP
    CUP
  • 42
    10-42975 DRIVE SCREW
    DRIVE SCREW
  • 43
    822423002 SEAL
    SEAL
  • 44
    25-828249 GROMMET
    (Export -Greenland)
    GROMMET
    (Export -Greenland)
  • 45
    19-17230 PLUG, Stop Switch
    PLUG, Stop Switch
  • 46
    8M0032846 RETAINER, Brass, Switch
    RETAINER, Brass, Switch
  • 47
    87-11083A31 SWITCH, Stop
    SWITCH, Stop
  • 48
    8M0092850 LANYARD ASSEMBLY, Stop Switch
    LANYARD ASSEMBLY, Stop Switch
  • 49
    25-16226 GROMMET
    GROMMET
  • 50
    822424001 SEAL, Throttle Cable
    SEAL, Throttle Cable
  • 51
    19-823874001 SEAL, Throttle Cable
    SEAL, Throttle Cable
  • 52
    4010-821511T1 BOTTOM COWL
    BOTTOM COWL
  • 53
    19-824076001 PLUG, Shift Lever
    PLUG, Shift Lever
  • 54
    821490T SHIFT HANDLE
    SHIFT HANDLE
  • 55
    25-19564001 GROMMET
    GROMMET
  • 55
    25-19565002 GROMMET
    (Split-Power Trim)
    GROMMET
    (Split-Power Trim)
  • 56
    19-824473 PLUG, Warning Alarm
    PLUG, Warning Alarm
  • 57
    823572001 SEAL, Warning Alarm
    SEAL, Warning Alarm
  • 58
    84-8M3001068 ALARM ASSEMBLY, Audio Warning
    ALARM ASSEMBLY, Audio Warning
  • 59
    12-4002316 WASHER
    WASHER
  • 60
    10-82239312 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 61
    87-8M0042301 SWITCH ASSEMBLY
    (Power Trim)
    SWITCH ASSEMBLY
    (Power Trim)
  • 62
    13541 PLUG, Male
    PLUG, Male
  • 63
    812830T01 PLUG, Trim Switch
    PLUG, Trim Switch
  • 64
    8M0032848 RETAINER
    RETAINER
  • 65
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 66
    10-40011107 SCREW, (M5 x 16) Stainless Steel, Interlock Cable
    SCREW, (M5 x 16) Stainless Steel, Interlock Cable
  • 67
    10-1993716 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 68
    822425 CAM, Latch
    CAM, Latch
  • 69
    13-12134 WASHER, Wave
    WASHER, Wave
  • 70
    23-812707 BUSHING
    BUSHING
  • 71
    22-813613 FITTING
    FITTING
  • 72
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 73
    32-7568058 HOSE, (15.00 Inches)
    HOSE, (15.00 Inches)
  • 74
    23-812707 BUSHING
    BUSHING
  • 75
    823573F1 LEVER, Cowl Latch
    LEVER, Cowl Latch
  • 76
    10-40011129 SCREW, (M6 x 25) Stainless Steel
    SCREW, (M6 x 25) Stainless Steel
  • 77
    23-822003 BUSHING
    BUSHING
  • 78
    25-822002 GROMMET
    GROMMET
