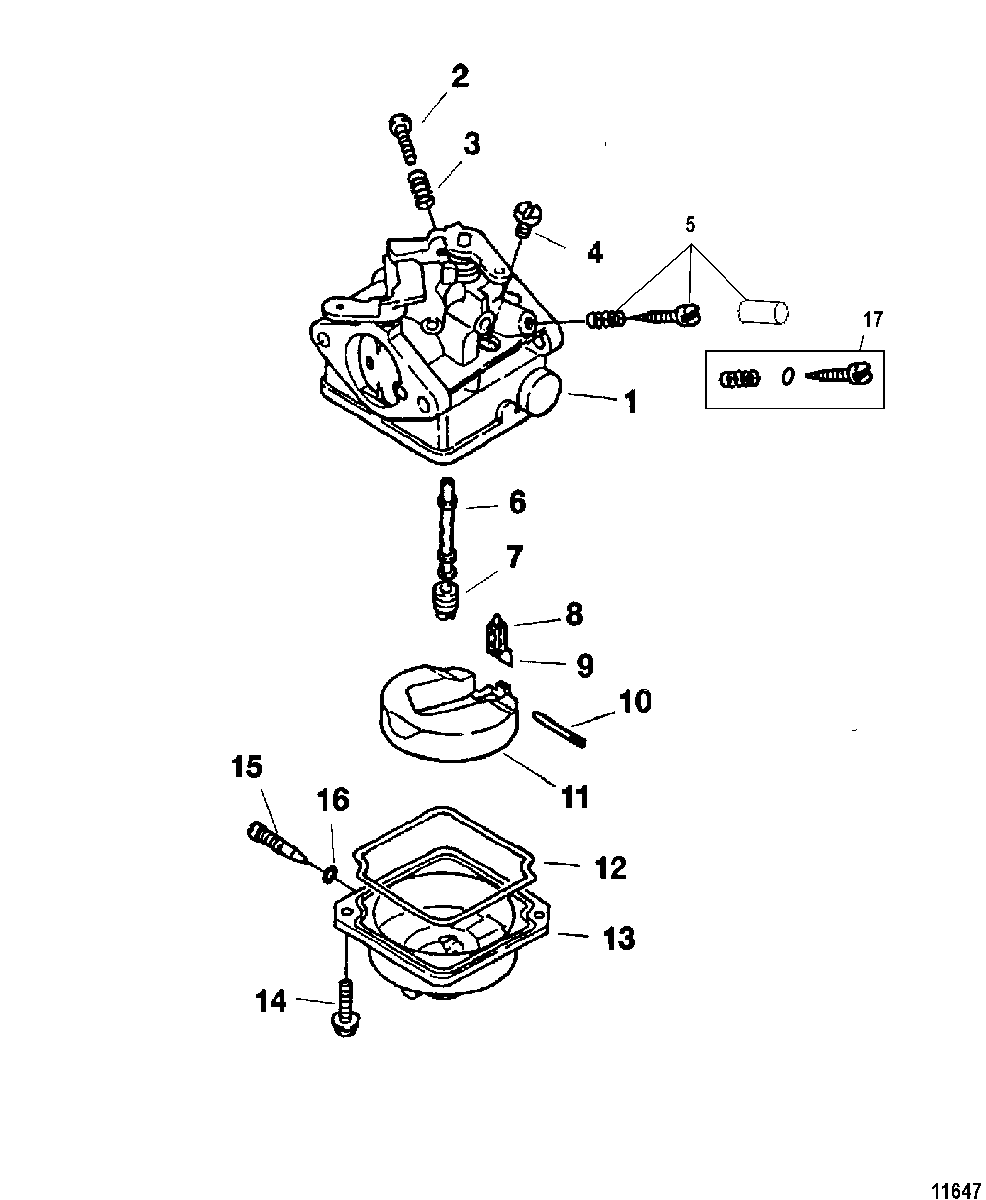

Carburetor для Mercury - 4 (4-STROKE) 0P401000 THRU 0R411837

  • №
    Артикул
    Название
  • 1
    3303-803819T03 CARBURETOR
    4 Horsepower
    CARBURETOR
    4 Horsepower
  • 1
    3303-803819A05 CARBURETOR
    4 Horsepower EU SN# 0R162800 & Below
    CARBURETOR
    4 Horsepower EU SN# 0R162800 & Below
  • 1
    3303-803819A05 CARBURETOR
    4 Horsepower EU SN# 0R162801 & Up
    CARBURETOR
    4 Horsepower EU SN# 0R162801 & Up
  • 1
    3303-803522T03 CARBURETOR
    5 Horsepower
    CARBURETOR
    5 Horsepower
  • 1
    3303-803522A05 CARBURETOR
    5 Horsepower EU SN# 0R162800 & Below
    CARBURETOR
    5 Horsepower EU SN# 0R162800 & Below
  • 1
    3303-803522A05 CARBURETOR
    5 Horsepower EU SN# 0R162801 & Up
    CARBURETOR
    5 Horsepower EU SN# 0R162801 & Up
  • 1
    3303-804766T03 CARBURETOR
    6 Horsepower
    CARBURETOR
    6 Horsepower
  • 1
    3303-804766A05 CARBURETOR
    6 Horsepower EU SN# 0R162800 & Below
    CARBURETOR
    6 Horsepower EU SN# 0R162800 & Below
  • 1
    3303-804766A05 CARBURETOR
    6 Horsepower EU SN# 0R162801 & Up
    CARBURETOR
    6 Horsepower EU SN# 0R162801 & Up
  • 2
    10-8035095 SCREW
    SCREW
  • 3
    24-803554 SPRING
    SPRING
  • 4
    803524004 JET, Pilot (#35)
    4 Horsepower
    JET, Pilot (#35)
    4 Horsepower
  • 4
    8035243 JET, Pilot (#38)
    5/6 Horsepower
    JET, Pilot (#38)
    5/6 Horsepower
  • 5
    10-803509019 SCREW ASSEMBLY, Pilot
    USA
    SCREW ASSEMBLY, Pilot
    USA
  • 6
    812650012 MAIN NOZZLE
    4 Horsepower
    MAIN NOZZLE
    4 Horsepower
  • 6
    812650015 MAIN NOZZLE
    4 Horsepower EU SN# 0R162801 & Up
    MAIN NOZZLE
    4 Horsepower EU SN# 0R162801 & Up
  • 6
    812650013 MAIN NOZZLE
    5 Horsepower
    MAIN NOZZLE
    5 Horsepower
  • 6
    812650016 MAIN NOZZLE
    5 Horsepower EU SN# 0R162801 & Up
    MAIN NOZZLE
    5 Horsepower EU SN# 0R162801 & Up
  • 6
    812650014 MAIN NOZZLE
    6 Horsepower
    MAIN NOZZLE
    6 Horsepower
  • 6
    812650017 MAIN NOZZLE
    6 Horsepower EU SN# 0R162801 & Up
    MAIN NOZZLE
    6 Horsepower EU SN# 0R162801 & Up
  • 7
    162505 JET, Main (#60)
    4 Horsepower
    JET, Main (#60)
    4 Horsepower
  • 7
    162508 JET, Main (#65)
    5 Horsepower
    JET, Main (#65)
    5 Horsepower
  • 7
    16250011 JET, Main (#68)
    6 Horsepower
    JET, Main (#68)
    6 Horsepower
  • 7
    16250012 JET, Main (#58)
    All EU SN# 0R162801 & Up
    JET, Main (#58)
    All EU SN# 0R162801 & Up
  • 8
    162543 FLOAT VALVE, Brass
    FLOAT VALVE, Brass
  • 9
    54-803525 CLIP, Stainless Steel
    CLIP, Stainless Steel
  • 10
    17-162562 PIN, Float - Stainless Steel
    PIN, Float - Stainless Steel
  • 11
    162533 FLOAT
    FLOAT
  • 12
    27-8035084 GASKET, Rubber
    GASKET, Rubber
  • 13
    16258T5 FLOAT BOWL
    FLOAT BOWL
  • 14
    10-16260 SCREW, (M4 x 12)
    SCREW, (M4 x 12)
  • 15
    10-8035093 SCREW, Drain (M5 x 6)
    SCREW, Drain (M5 x 6)
  • 16
    25-8035131 O-RING, Rubber
    O-RING, Rubber
  • 17
    10-803509020 SCREW ASSEMBLY, Pilot
    EU
    SCREW ASSEMBLY, Pilot
    EU
  • -
    27-8M0101710 GASKET SET, Powerhead
    GASKET SET, Powerhead
