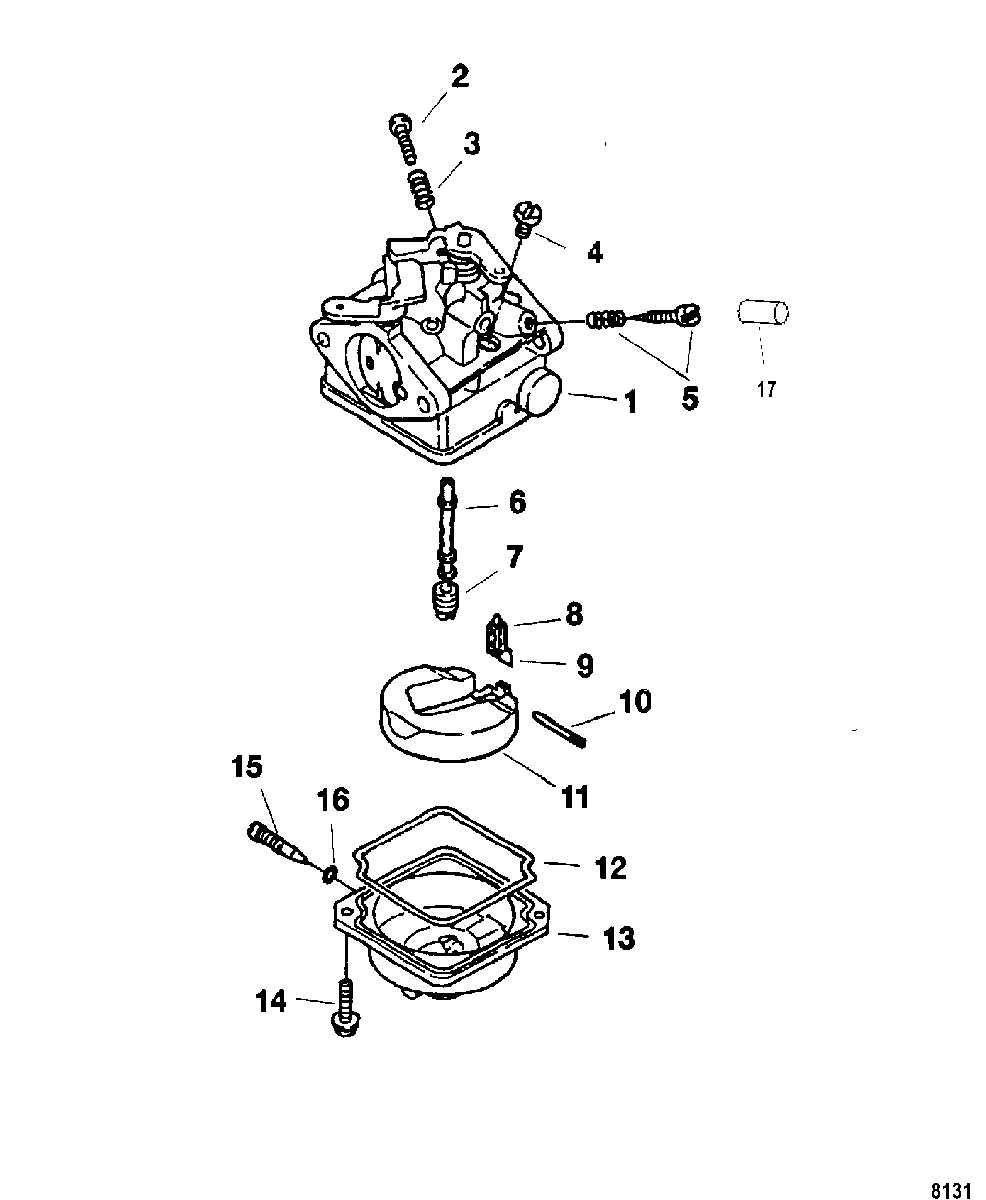

Carburetor для Mercury - 4 (4-STROKE) 0P073456 THRU 0P400999

  • №
    Артикул
    Название
  • 1
    3303-803819T1 CARBURETOR
    (4 HP) SN# 0R017219 & Below
    CARBURETOR
    (4 HP) SN# 0R017219 & Below
  • 1
    3303-803819T2 CARBURETOR
    (4 HP) SN# 0R017220 & Up
    CARBURETOR
    (4 HP) SN# 0R017220 & Up
  • 1
    3303-879817A1 CARBURETOR
    (4 HP)(MPE)
    CARBURETOR
    (4 HP)(MPE)
  • 1
    3303-879658A1 CARBURETOR
    (4 HP-Bodensee) SN# 0R017220 & Up
    CARBURETOR
    (4 HP-Bodensee) SN# 0R017220 & Up
  • 1
    3303-803522T1 CARBURETOR
    (5 HP) SN# 0R017219 & Below
    CARBURETOR
    (5 HP) SN# 0R017219 & Below
  • 1
    3303-803522T2 CARBURETOR
    (5 HP) SN# 0R017220 & Up
    CARBURETOR
    (5 HP) SN# 0R017220 & Up
  • 1
    3303-879818A1 CARBURETOR
    (5HP)(MPE)
    CARBURETOR
    (5HP)(MPE)
  • 1
    3303-879659A1 CARBURETOR
    (5 HP-Bodensee) SN# 0R017220 & Up
    CARBURETOR
    (5 HP-Bodensee) SN# 0R017220 & Up
  • 1
    3301-804766T2 CARBURETOR
    (6 HP) SN# 0R017219 & Below
    CARBURETOR
    (6 HP) SN# 0R017219 & Below
  • 1
    3301-804766T2 CARBURETOR
    (6 HP) SN# 0R017220 & Up
    CARBURETOR
    (6 HP) SN# 0R017220 & Up
  • 1
    3303-879819A1 CARBURETOR
    (6HP)(MPE)
    CARBURETOR
    (6HP)(MPE)
  • 1
    3303-879660A1 CARBURETOR
    (6 HP-Bodensee) SN# 0R017220 & Up
    CARBURETOR
    (6 HP-Bodensee) SN# 0R017220 & Up
  • 2
    10-8035095 SCREW
    SCREW
  • 3
    24-803554 SPRING
    SPRING
  • 4
    8035241 PILOT JET
    (4 HP)(#40) SN# 0R017219 & Below
    PILOT JET
    (4 HP)(#40) SN# 0R017219 & Below
  • 4
    803524 PILOT JET
    (5 HP)(#42) SN# 0R017219 & Below
    PILOT JET
    (5 HP)(#42) SN# 0R017219 & Below
  • 4
    8035243 JET, Pilot (#38)
    (4/5 HP)(#38) SN# 0R017220 & Up
    JET, Pilot (#38)
    (4/5 HP)(#38) SN# 0R017220 & Up
  • 4
    8035242 PILOT JET
    (6 HP)(#45)
    PILOT JET
    (6 HP)(#45)
  • 4
    8035241 PILOT JET
    (6 HP)(#40)(Bodensee)
    PILOT JET
    (6 HP)(#40)(Bodensee)
  • 5
    10-8035094 SCREW ASSEMBLY, Pilot
    (USA)
    SCREW ASSEMBLY, Pilot
    (USA)
  • 5
    10-8035098 SCREW ASSEMBLY, Pilot
    (MPE)
    SCREW ASSEMBLY, Pilot
    (MPE)
  • 5
    10-8035099 SCREW ASSEMBLY, Pilot
    (Bodensee)
    SCREW ASSEMBLY, Pilot
    (Bodensee)
  • 6
    8126507 MAIN NOZZLE
    (4 HP) SN# 0R017219 & Below
    MAIN NOZZLE
    (4 HP) SN# 0R017219 & Below
  • 6
    8126509 MAIN NOZZLE
    (5 HP) SN# 0R017219 & Below
    MAIN NOZZLE
    (5 HP) SN# 0R017219 & Below
  • 6
    8126507 MAIN NOZZLE
    (4 HP) SN# 0R017220 & Up
    MAIN NOZZLE
    (4 HP) SN# 0R017220 & Up
  • 6
    81265011 MAIN NOZZLE
    (4 HP-Bodensee)
    MAIN NOZZLE
    (4 HP-Bodensee)
  • 6
    8126509 MAIN NOZZLE
    (5 HP) SN# 0R017220 & Up
    MAIN NOZZLE
    (5 HP) SN# 0R017220 & Up
  • 6
    81265011 MAIN NOZZLE
    (5 HP-Bodensee)
    MAIN NOZZLE
    (5 HP-Bodensee)
  • 6
    8126506 MAIN NOZZLE
    (6 HP)
    MAIN NOZZLE
    (6 HP)
  • 6
    3303-879660A1 MAIN NOZZLE
    (6 HP-Bodensee)
    MAIN NOZZLE
    (6 HP-Bodensee)
  • 7
    162502 JET, Main (#70)
    (4/5 HP) SN# 0R017219 & Below
    JET, Main (#70)
    (4/5 HP) SN# 0R017219 & Below
  • 7
    162505 JET, Main (#60)
    (4 HP) SN# 0R017220 & Up
    JET, Main (#60)
    (4 HP) SN# 0R017220 & Up
  • 7
    162508 JET, Main (#65)
    (5 HP) SN# 0R017220 & Up
    JET, Main (#65)
    (5 HP) SN# 0R017220 & Up
  • 7
    162509 JET, Main (#62)
    (5 HP - Bodensee)
    JET, Main (#62)
    (5 HP - Bodensee)
  • 7
    162506 JET, Main (#75)
    (6 HP)
    JET, Main (#75)
    (6 HP)
  • 7
    162507 JET, Main (#68)
    (6 HP - Bodensee)
    JET, Main (#68)
    (6 HP - Bodensee)
  • 8
    162543 FLOAT VALVE, Brass
    FLOAT VALVE, Brass
  • 9
    54-803525 CLIP, Stainless Steel
    CLIP, Stainless Steel
  • 10
    17-162562 PIN, Float - Stainless Steel
    PIN, Float - Stainless Steel
  • 11
    162533 FLOAT
    FLOAT
  • 12
    27-8035084 GASKET, Rubber
    GASKET, Rubber
  • 13
    16258T5 FLOAT BOWL
    FLOAT BOWL
  • 14
    10-16260 SCREW, (M4 x 12)
    SCREW, (M4 x 12)
  • 15
    10-8035093 SCREW, Drain (M5 x 6)
    SCREW, Drain (M5 x 6)
  • 16
    25-8035131 O-RING, Rubber
    O-RING, Rubber
  • 17
    19-881837 PLUG
    (6.5MM)
    PLUG
    (6.5MM)
  • 17
    19-881836 PLUG
    (7.5MM)(MPE)(Use where Applicable)
    PLUG
    (7.5MM)(MPE)(Use where Applicable)
  • -
    27-8M0114820 GASKET SET, Powerhead
    SN# 0R057258 & Below
    GASKET SET, Powerhead
    SN# 0R057258 & Below
  • -
    27-803508A05 GASKET SET, Powerhead
    SN# 0R057259 & Up
    GASKET SET, Powerhead
    SN# 0R057259 & Up
