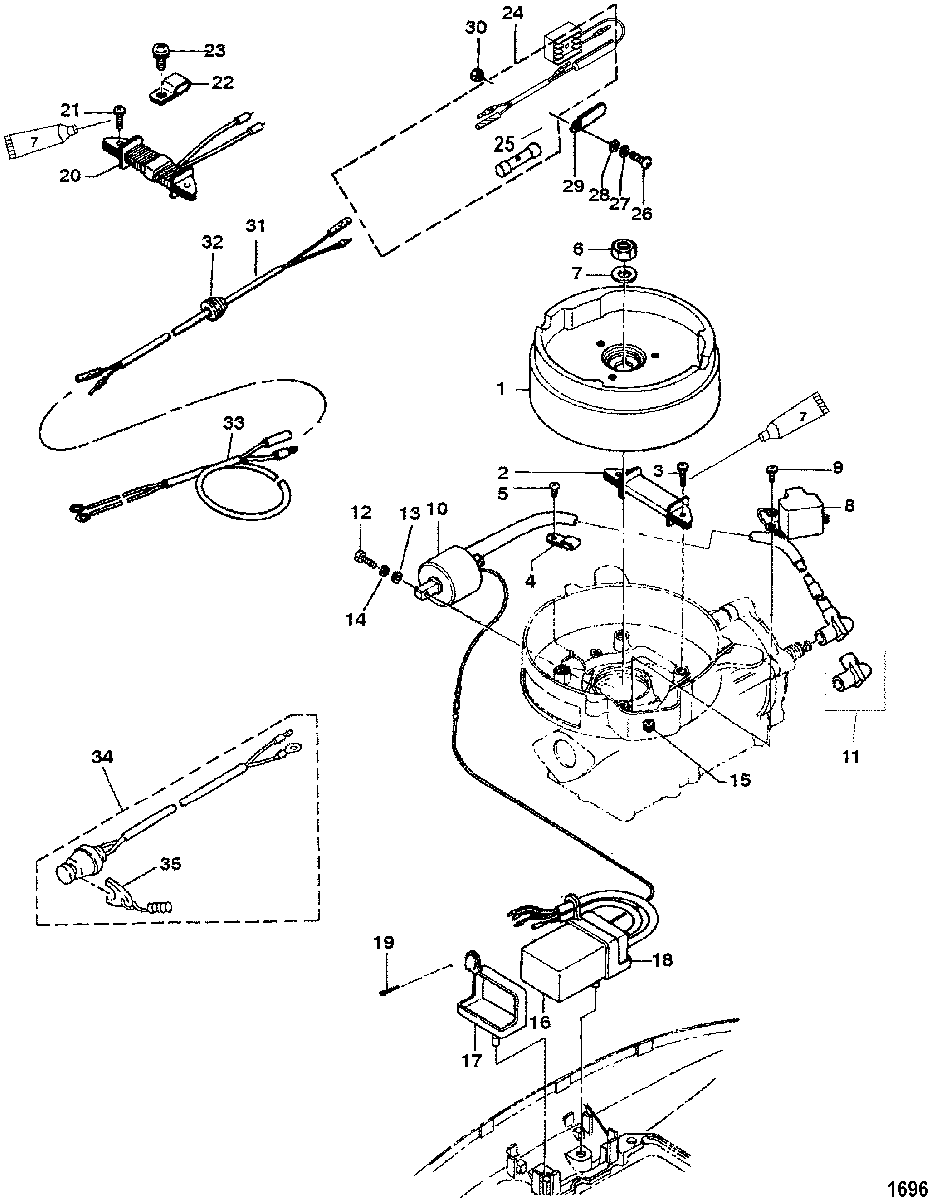

Magneto and Ignition Components для Mercury - 4 (2-STROKE) 0P017000 THRU 0P400999
-
№АртикулНазвание
-
1200-8M0110989 FLYWHEELFLYWHEEL
-
216058T COIL, ExciterCOIL, Exciter
-
310-16059 SCREWSCREW
-
454-16060 CLAMPCLAMP
-
510-16821 SCREWSCREW
-
611-16071 NUTNUT
-
712-16072 WASHERWASHER
-
8160661 COIL, PulserCOIL, Pulser
-
910-16067 SCREWSCREW
-
10815113T02 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
1185-855543 BOOT, With ResistanceBOOT, With Resistance
-
1210-167051 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
1313-16818 LOCKWASHERLOCKWASHER
-
1412-809931044 WASHERWASHER
-
1525-16068 GROMMETGROMMET
-
1616061T04 CD UNIT
SN# 0T707898/0P267999 & BelowCD UNIT
SN# 0T707898/0P267999 & Below -
1616061T04 CD UNIT
SN# 0T707899/0P268000 & UpCD UNIT
SN# 0T707899/0P268000 & Up -
17878061 DAMPER (FRONT)
SN# 0T707898/0P267999 & BelowDAMPER (FRONT)
SN# 0T707898/0P267999 & Below -
17878061 FRONT DAMPER
SN# 0T707899/0P268000 & UpFRONT DAMPER
SN# 0T707899/0P268000 & Up -
18878062 DAMPER (REAR)DAMPER (REAR)
-
1918-815026 COTTER PINCOTTER PIN
-
2016074T ALTERNATOR
(SAILPOWER)ALTERNATOR
(SAILPOWER) -
2110-16059 SCREW
(SAILPOWER)SCREW
(SAILPOWER) -
2254-16060 CLAMP
(SAILPOWER)CLAMP
(SAILPOWER) -
2310-16821 SCREW
(SAILPOWER)SCREW
(SAILPOWER) -
2416076A1 RECTIFIER
(SAILPOWER)(Use with 20MM Screw)RECTIFIER
(SAILPOWER)(Use with 20MM Screw) -
2416076A1 RECTIFIER KIT
(SAILPOWER)(Use with 25MM Screw)RECTIFIER KIT
(SAILPOWER)(Use with 25MM Screw) -
2589-16077 FUSE
(SAILPOWER)FUSE
(SAILPOWER) -
2610-16123 SCREW, (25 mm)
(SAILPOWER)(25 MM)SCREW, (25 mm)
(SAILPOWER)(25 MM) -
2610-16078 SCREW
(SAILPOWER)(20 MM)SCREW
(SAILPOWER)(20 MM) -
2713-16079 LOCKWASHER
(SAILPOWER)LOCKWASHER
(SAILPOWER) -
2812-8M0108373 WASHER, Stainless Steel
(SAILPOWER)WASHER, Stainless Steel
(SAILPOWER) -
2954-813275 CLAMP
(SAILPOWER)CLAMP
(SAILPOWER) -
3011-16081 NUT, Stainless Steel
(SAILPOWER)NUT, Stainless Steel
(SAILPOWER) -
3184-16822 HARNESS, Extension
(SAILPOWER)HARNESS, Extension
(SAILPOWER) -
3225-16823 GROMMET
(SAILPOWER)GROMMET
(SAILPOWER) -
3384-16082 CABLE, Battery
(SAILPOWER)CABLE, Battery
(SAILPOWER) -
3487-823037A04 SWITCH ASSEMBLY, Emergency Stop
SN# 0T707898/0P267999 & BelowSWITCH ASSEMBLY, Emergency Stop
SN# 0T707898/0P267999 & Below -
3487-823037A04 SWITCH ASSEMBLY, Emergency Stop
SN# 0T707899/0P268000 & UpSWITCH ASSEMBLY, Emergency Stop
SN# 0T707899/0P268000 & Up -
35823054 LANYARDLANYARD
