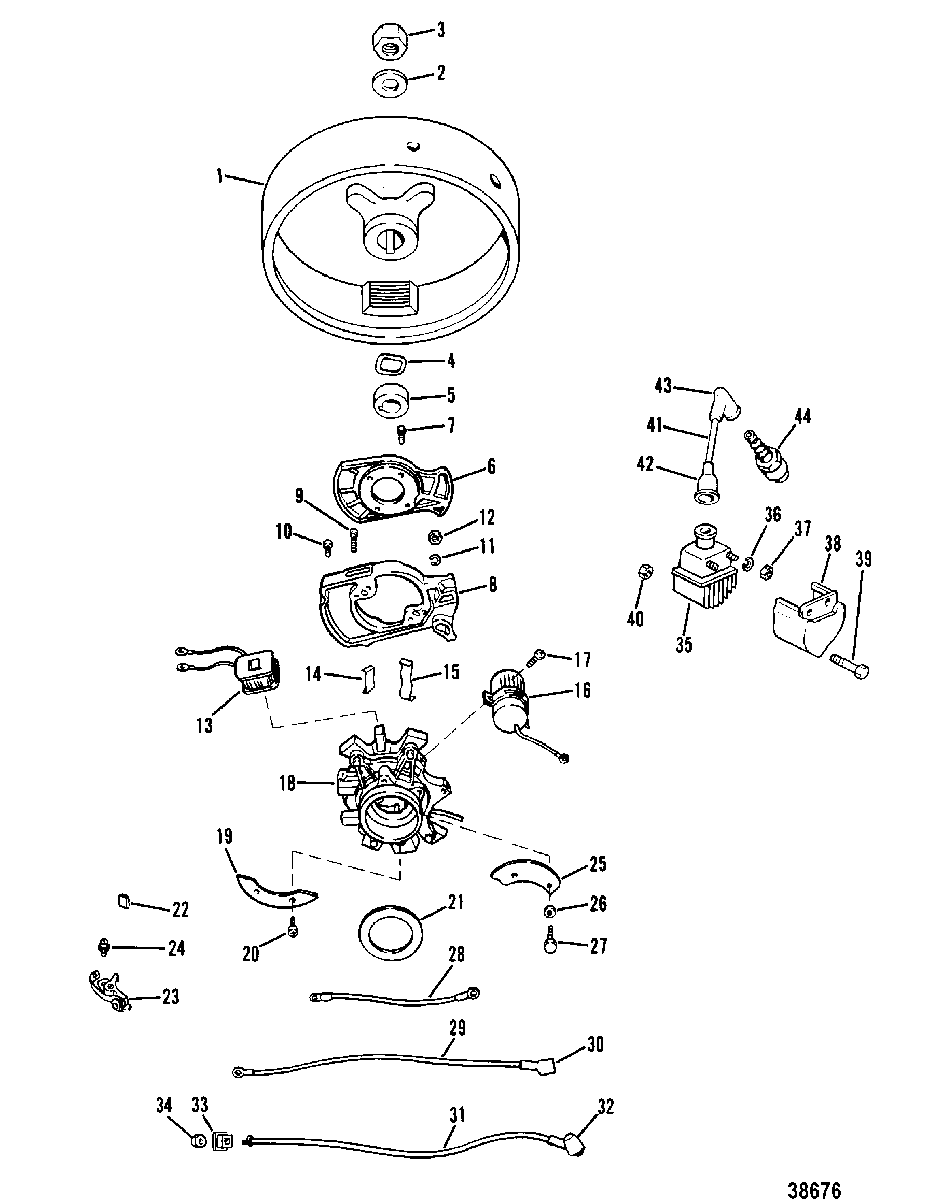

FLYWHEEL AND IGNITION COMPONENTS для Mercury - 4 (1 CYL. PRODUCT OF USA) 8068065 & Up

  • №
    Артикул
    Название
  • 1
    236-4475A1 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 2
    12-36245 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 3
    11-20696 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 4
    13-35629 WASHER, WAVE-CAM TENSION
    WASHER, WAVE-CAM TENSION
  • 5
    336-4465 CAM
    CAM
  • 6
    336-4524A1 COVER ASSEMBLY
    COVER ASSEMBLY
  • 7
    10-60491 SCREW, (#8-32 x .620), COVER TO MODULE
    SCREW, (#8-32 x .620), COVER TO MODULE
  • 8
    336-4516A2 IGNITION MODULE ASSEMBLY
    IGNITION MODULE ASSEMBLY
  • 9
    10-59800 SCREW, MODULE TO STATOR (9/16")
    SCREW, MODULE TO STATOR (9/16")
  • 10
    10-36046 SCREW, MODULE-COIL LEAD (1/4")
    SCREW, MODULE-COIL LEAD (1/4")
  • 11
    13-26996 LOCKWASHER, (#10) Stainless Steel, MODUEL TERMINALS
    LOCKWASHER, (#10) Stainless Steel, MODUEL TERMINALS
  • 12
    11-45076 NUT, (#10-32) Brass, MODULE TERMINALS
    NUT, (#10-32) Brass, MODULE TERMINALS
  • 13
    336-4470A1 COIL ASSEMBLY
    HIGH SPPED
    COIL ASSEMBLY
    HIGH SPPED
  • 13
    336-4469A1 COIL ASSEMBLY
    LOW SPEED
    COIL ASSEMBLY
    LOW SPEED
  • 14
    54-59538T CLIP, COIL RETAINING
    CLIP, COIL RETAINING
  • 15
    54-59539 CLIP, COIL RETAINING
    CLIP, COIL RETAINING
  • 16
    336-4463 CONDENSER ASSEMBLY
    CONDENSER ASSEMBLY
  • 17
    10-62269 SCREW, (#10-32 x .437), CONDENSER ATTACHING
    SCREW, (#10-32 x .437), CONDENSER ATTACHING
  • 18
    336-4476A6 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 19
    336-4458 PLATE, STATOR HOLD DOWN
    PLATE, STATOR HOLD DOWN
  • 20
    10-35400 SCREW, HOLD DOWN PLATE TO STATOR (7/16")
    SCREW, HOLD DOWN PLATE TO STATOR (7/16")
  • 21
    15-33910015 SHIM, STATOR PLATE TO UPPER END CAP
    SHIM, STATOR PLATE TO UPPER END CAP
  • 22
    336-3989 WICK, CAM WIPER
    WICK, CAM WIPER
  • 23
    336-4318A2 MAKER ASSEMBLY, STATOR HOUSING
    MAKER ASSEMBLY, STATOR HOUSING
  • 24
    10-56266 SCREW, MAKER TO STATOR HOUSING (3/8")
    SCREW, MAKER TO STATOR HOUSING (3/8")
  • 25
    56520 CAM
    CAM
  • 26
    10-69054 SCREW, (.250-20 x .620), THROTTLE CAM TO CONTACT HOUSING
    SCREW, (.250-20 x .620), THROTTLE CAM TO CONTACT HOUSING
  • 27
    12-37998 WASHER, THROTTLE CAM ATTACHING SCREW
    WASHER, THROTTLE CAM ATTACHING SCREW
  • 28
    56757A5 WIRE ASSEMBLY, Jumper (BLACK-4-1/4")
    WIRE ASSEMBLY, Jumper (BLACK-4-1/4")
  • 29
    56318A11 LEAD ASSEMBLY (GREEN-12-1/4")
    LEAD ASSEMBLY (GREEN-12-1/4")
  • 30
    38938 BOOT, LEAD ASSEMBLY
    BOOT, LEAD ASSEMBLY
  • 31
    56316A4 CABLE ASSEMBLY, STATOR HOUSING (WHITE-103/4")
    CABLE ASSEMBLY, STATOR HOUSING (WHITE-103/4")
  • 32
    38938 BOOT, CABLE
    BOOT, CABLE
  • 33
    336-4460 INSULATOR, CABLE TO CONTACT HOUSING
    INSULATOR, CABLE TO CONTACT HOUSING
  • 34
    11-56325 NUT, CABLE INSULATOR
    NUT, CABLE INSULATOR
  • 35
    336-4528T2 COIL ASSEMBLY, Ignition
    COIL ASSEMBLY, Ignition
  • 36
    13-26996 LOCKWASHER, (#10) Stainless Steel, IGNITION COIL TERMINAL
    LOCKWASHER, (#10) Stainless Steel, IGNITION COIL TERMINAL
  • 37
    11-45076 NUT, (#10-32) Brass, IGNITION COIL TERMINAL
    NUT, (#10-32) Brass, IGNITION COIL TERMINAL
  • 38
    66355 COVER
    COVER
  • 39
    10-61530 SCREW
    SCREW
  • 40
    11-27164 NUT AND LOCKWASHER, (#10-32), COIL COVER SCREW
    NUT AND LOCKWASHER, (#10-32), COIL COVER SCREW
  • 41
    84-813715A1 LEAD ASSEMBLY, HIGH TENSION
    LEAD ASSEMBLY, HIGH TENSION
  • 42
    332-2854T01 BOOT, IGNITION COIL
    BOOT, IGNITION COIL
  • 43
    85-63709A1 BOOT/TERMINAL KIT, SPARK PLUG
    BOOT/TERMINAL KIT, SPARK PLUG
  • 44
    33-97182Q SPARK PLUG (NGK #BUHW-2)
    SPARK PLUG (NGK #BUHW-2)
  • 44
    33-14103Q SPARK PLUG
    CANADA AND BELGIUM
    SPARK PLUG
    CANADA AND BELGIUM
