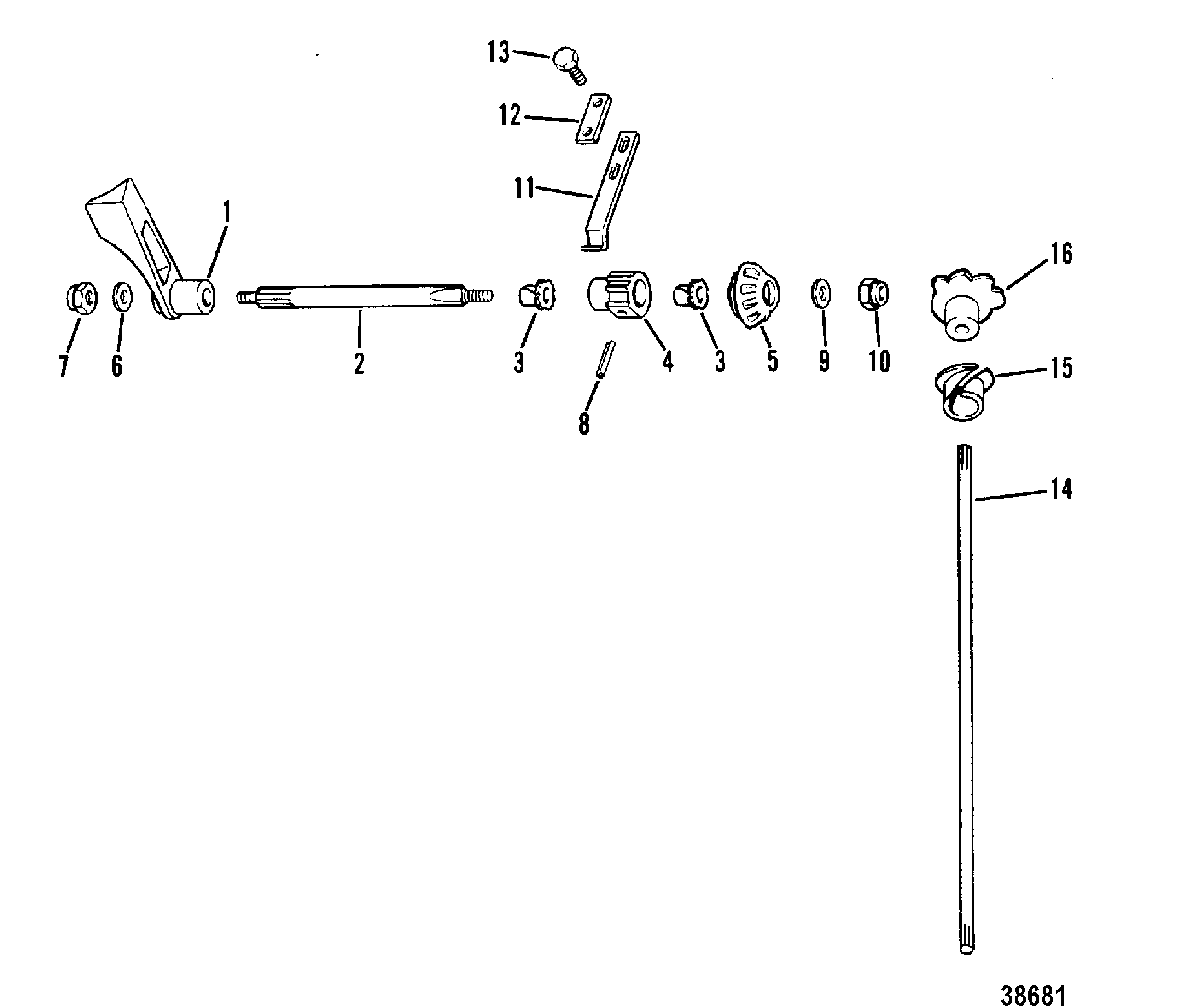

SHIFT CONTROL LINKAGE для Mercury - 4 (1 CYL. PRODUCT OF USA) 7143688 & Up

  • №
    Артикул
    Название
  • 1
    93730T HANDLE, SHIFT CONTROL
    HANDLE, SHIFT CONTROL
  • 2
    66378 SHAFT, CONTROL HANDLE
    SHAFT, CONTROL HANDLE
  • 3
    23-66375 BUSHING, NYLON - SHIFT CONTROL HANDLE
    BUSHING, NYLON - SHIFT CONTROL HANDLE
  • 4
    66414 CAM, SHIFT SHAFT
    CAM, SHIFT SHAFT
  • 5
    43-66377 SECTOR GEAR, SHIFT CONTROL HANDLE
    SECTOR GEAR, SHIFT CONTROL HANDLE
  • 6
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 7
    11-826709109 NUT
    NUT
  • 8
    17-25905 PIN, DETENT CAM TO SHIFT SHAFT
    PIN, DETENT CAM TO SHIFT SHAFT
  • 9
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 10
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 11
    24-39627 SPRING, DETENT - CRANKCASE
    SPRING, DETENT - CRANKCASE
  • 12
    39601 PLATE, DETENT SPRING
    PLATE, DETENT SPRING
  • 13
    10-25764 SCREW, (.190-32 x .50)
    SCREW, (.190-32 x .50)
  • 14
    71660 SHIFT SHAFT, UPPER
    SHIFT SHAFT, UPPER
  • 15
    23-30677 BUSHING, NYLON - SHIFT CONTROL SHAFT
    BUSHING, NYLON - SHIFT CONTROL SHAFT
  • 16
    43-86686A1 SECTOR GEAR, SHIFT SHAFT
    SECTOR GEAR, SHIFT SHAFT
