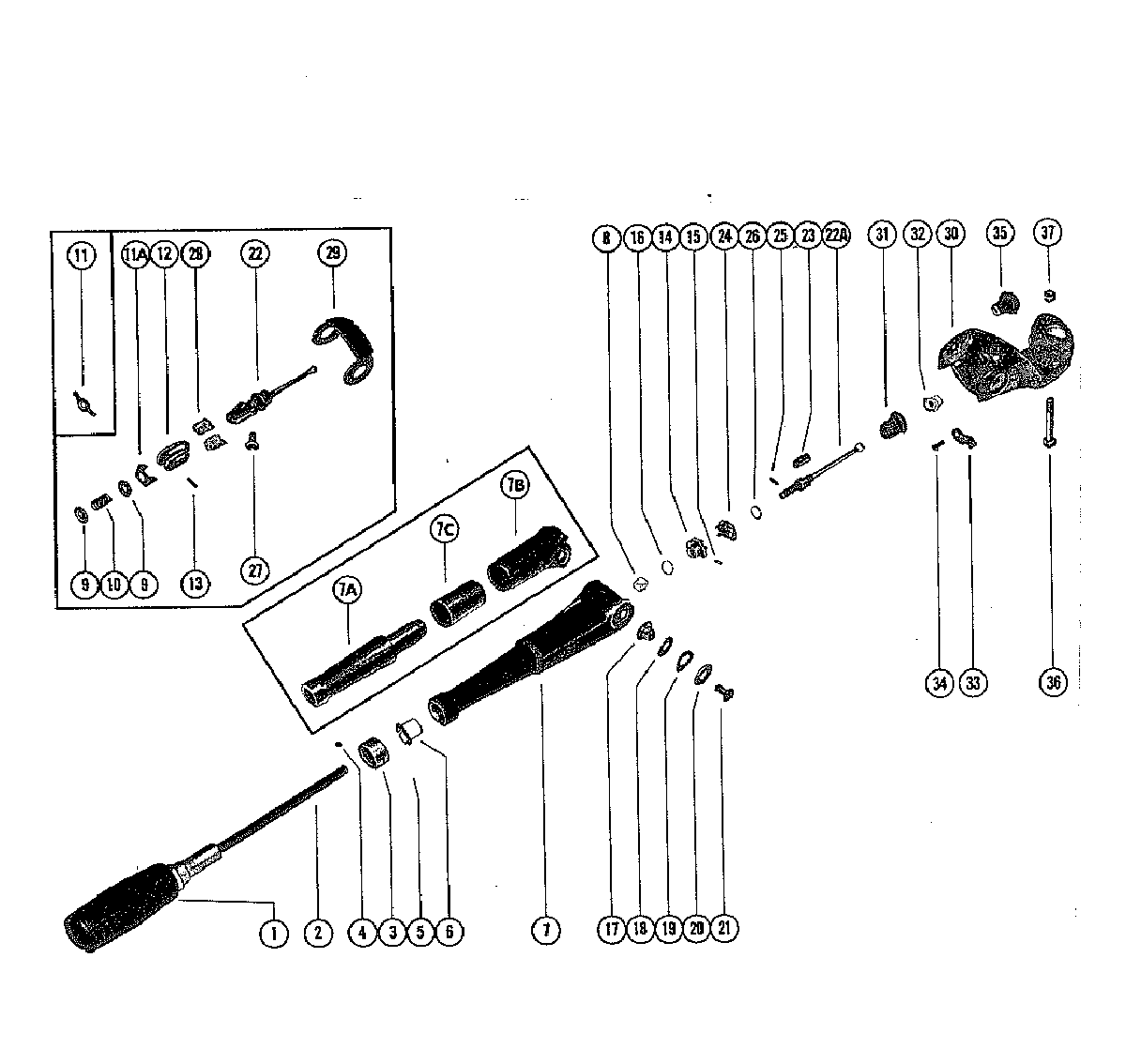

STEERING HANDLE ASSEMBLY для Mercury - 39 (1 CYL.) 1655013 THRU 2498135
‹-+›
-
№АртикулНазвание
-
-NLA STEERING HANDLE (39)
SERIAL 00000000-02278850STEERING HANDLE (39)
SERIAL 00000000-02278850 -
-60850A6 STEERING HANDLE (39)(40)
SERIAL 02278851-09999999STEERING HANDLE (39)(40)
SERIAL 02278851-09999999 -
127763 GRIPGRIP
-
2NLA BODY AND SHAFTBODY AND SHAFT
-
3NLA INDICATORINDICATOR
-
4NLA SET SCREWSET SCREW
-
5NLA DRIVE SCREWDRIVE SCREW
-
623-30677 BUSHINGBUSHING
-
7NLA STEERING HANDLE(39)
SERIAL 00000000-02440975STEERING HANDLE(39)
SERIAL 00000000-02440975 -
7ANLA STEERING HANDLE 39- 40
SERIAL 02440976-09999999STEERING HANDLE 39- 40
SERIAL 02440976-09999999 -
7BNLA KNUCKLE
SERIAL 02440976-09999999KNUCKLE
SERIAL 02440976-09999999 -
7CNLA BUSHING
SERIAL 02440976-09999999BUSHING
SERIAL 02440976-09999999 -
823-28100 BUSHINGBUSHING
-
912-20084 WASHER (39-)
SERIAL 00000000-01865632WASHER (39-)
SERIAL 00000000-01865632 -
10NLA SPRING (39)
SERIAL 00000000-02278850SPRING (39)
SERIAL 00000000-02278850 -
1114-26706 TAB WASHER (39)
SERIAL 00000000-01865632TAB WASHER (39)
SERIAL 00000000-01865632 -
11ANLA RETAINER (39--)
SERIAL 01865633-02278850RETAINER (39--)
SERIAL 01865633-02278850 -
1230235 YOKE (39)
SERIAL 00000000-01865632YOKE (39)
SERIAL 00000000-01865632 -
12NLA YOKE (39)
SERIAL 01865633-02278850YOKE (39)
SERIAL 01865633-02278850 -
1317-26862 PIN (39)
SERIAL 00000000-02278850PIN (39)
SERIAL 00000000-02278850 -
14NLA BALL GEAR (39)
SERIAL 02278851-09999999BALL GEAR (39)
SERIAL 02278851-09999999 -
1443-53205 BALL GEAR (40)BALL GEAR (40)
-
1517-26862 PIN (39)(40)
SERIAL 02278851-09999999PIN (39)(40)
SERIAL 02278851-09999999 -
16NLA RING (39)(40)
SERIAL 02278851-09999999RING (39)(40)
SERIAL 02278851-09999999 -
1726711 PIVOT (39)
SERIAL 00000000-01865632PIVOT (39)
SERIAL 00000000-01865632 -
1739218 PIVOT (39)
SERIAL 01865633-02278850PIVOT (39)
SERIAL 01865633-02278850 -
1748003 PIVOT (39)(40)
SERIAL 02278851-09999999PIVOT (39)(40)
SERIAL 02278851-09999999 -
1815-26707 SHIM (39)
SERIAL 00000000-02278850SHIM (39)
SERIAL 00000000-02278850 -
1815-48002015 SHIM (39-(40)
SERIAL 02278851-09999999SHIM (39-(40)
SERIAL 02278851-09999999 -
19NLA SHIM (39)
SERIAL 00000000-01865632SHIM (39)
SERIAL 00000000-01865632 -
1913-39227 WAVE WASHER (39)
SERIAL 01865633-02278850WAVE WASHER (39)
SERIAL 01865633-02278850 -
20NLA LOCKWASHER (39)
SERIAL 01865633-02278850LOCKWASHER (39)
SERIAL 01865633-02278850 -
21NLA SCREW (39)
SERIAL 00000000-01865632SCREW (39)
SERIAL 00000000-01865632 -
2110-96138 SCREW (39)
SERIAL 01865633-02278850SCREW (39)
SERIAL 01865633-02278850 -
2110-64074 SCREW (39)(40)
SERIAL 02278851-09999999SCREW (39)(40)
SERIAL 02278851-09999999 -
22NLA CONTROL SHAFT (39)
SERIAL 00000000-02278850CONTROL SHAFT (39)
SERIAL 00000000-02278850 -
22ANLA UNIVERSAL JOINT (39)(40)
SERIAL 02278851-09999999UNIVERSAL JOINT (39)(40)
SERIAL 02278851-09999999 -
2323-48005 SLEEVE (39)(40)
SERIAL 02278851-09999999SLEEVE (39)(40)
SERIAL 02278851-09999999 -
24NLA BALL GEAR (39)
SERIAL 02278851-09999999BALL GEAR (39)
SERIAL 02278851-09999999 -
2443-53205 BALL GEAR (40)BALL GEAR (40)
-
2517-26862 PIN (39)(40)
SERIAL 02278851-09999999PIN (39)(40)
SERIAL 02278851-09999999 -
26NLA RING (39-)(40)
SERIAL 02278851-09999999RING (39-)(40)
SERIAL 02278851-09999999 -
2710-96138 SCREW (39)
SERIAL 00000000-02278850SCREW (39)
SERIAL 00000000-02278850 -
2839210 PLATE (39)
SERIAL 01865633-02278850PLATE (39)
SERIAL 01865633-02278850 -
2939185 SHIELD (39)
SERIAL 01865633-02278850SHIELD (39)
SERIAL 01865633-02278850 -
30NLA BRACKET (39)
SERIAL 00000000-02278850BRACKET (39)
SERIAL 00000000-02278850 -
3047680T BRACKET (39)(40)
SERIAL 02278851-09999999BRACKET (39)(40)
SERIAL 02278851-09999999 -
31NLA BOOT (39)(40)
SERIAL 02278851-09999999BOOT (39)(40)
SERIAL 02278851-09999999 -
3223-47818 BUSHING, (39)(40)
SERIAL 02278851-09999999BUSHING, (39)(40)
SERIAL 02278851-09999999 -
3324-72847 SPRING (39)(40)
SERIAL 02278851-09999999SPRING (39)(40)
SERIAL 02278851-09999999 -
3410-37655 SCREW (39)(40)
SERIAL 02278851-09999999SCREW (39)(40)
SERIAL 02278851-09999999 -
35NLA BOOTBOOT
-
3610-30679 SCREWSCREW
-
3711-20184 NUTNUT
