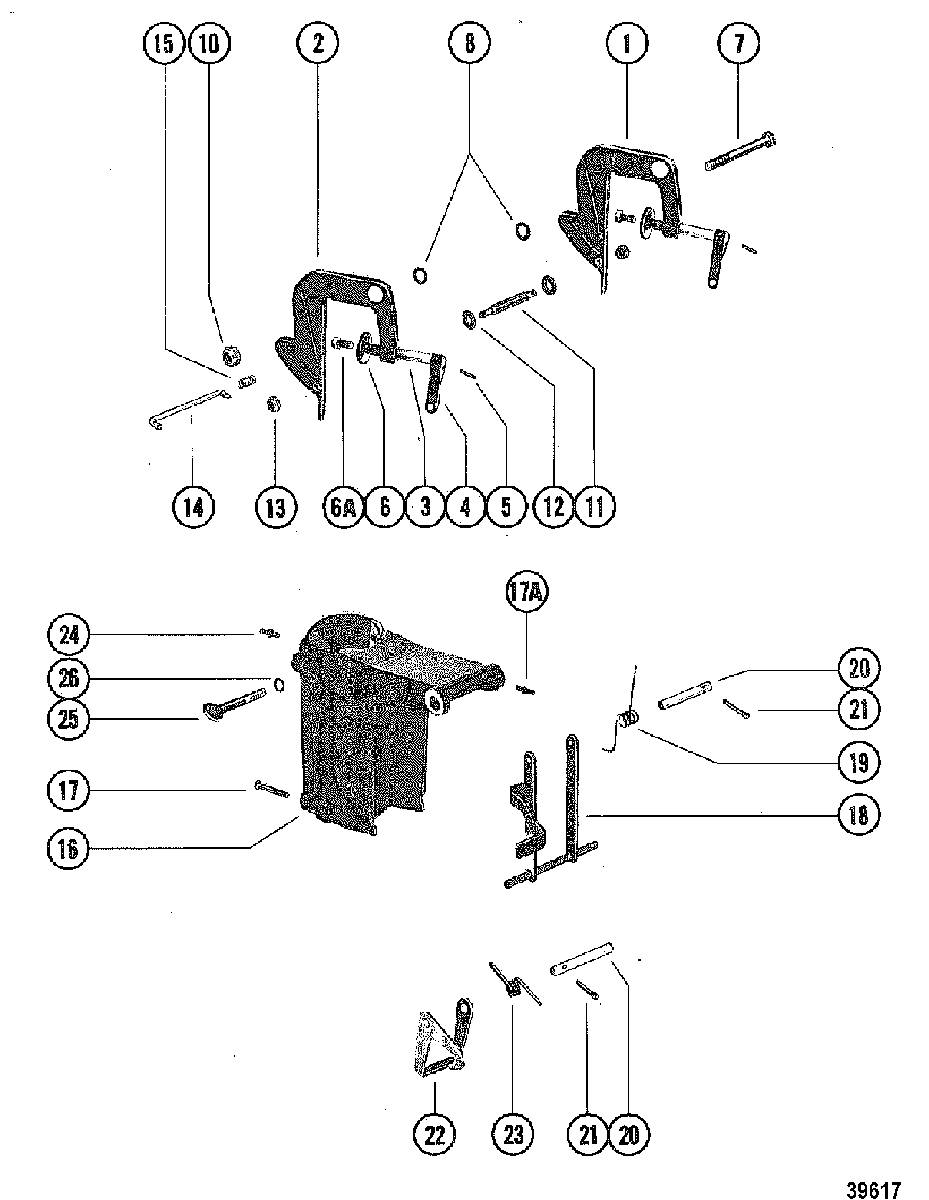

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 3.6 5404657 & Up
-
№АртикулНазвание
-
11479-7291A1 CLAMP BRACKET (PORT)CLAMP BRACKET (PORT)
-
21478-7289A1 CLAMP BRACKET (STARBOARD)CLAMP BRACKET (STARBOARD)
-
310-77190A4 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
478971 HANDLE, THUMB SCREWHANDLE, THUMB SCREW
-
517-78970 PIN, Groove, THUMB SCREWPIN, Groove, THUMB SCREW
-
612-818884 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
6A10-768042 SCREW, THUMB SCREW WASHERSCREW, THUMB SCREW WASHER
-
710-96917 SCREW, CLAMP BRACKETSCREW, CLAMP BRACKET
-
812-68920 WASHER, CLAMP BRACKET SCREWWASHER, CLAMP BRACKET SCREW
-
1011-8M0042636 NUT, (.375-24), CLAMP BRACKET STUD OR SCREWNUT, (.375-24), CLAMP BRACKET STUD OR SCREW
-
1116-68925 STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
1213-26992 LOCKWASHER, (.250) Stainless Steel, CLAMP BRACKET STUDLOCKWASHER, (.250) Stainless Steel, CLAMP BRACKET STUD
-
1311-29598 NUT, (.250-28) Stainless Steel, CLAMP BRACKET STUDNUT, (.250-28) Stainless Steel, CLAMP BRACKET STUD
-
1417-68929A2 PIN ASSEMBLY, TiltPIN ASSEMBLY, Tilt
-
1524-62143 SPRING, TILT PINSPRING, TILT PIN
-
161477-7400A2 SWIVEL BRACKET ASSEMBLYSWIVEL BRACKET ASSEMBLY
-
1710-69067 SCREW, (.250-20 x 1.375), SWIVEL BRACKETSCREW, (.250-20 x 1.375), SWIVEL BRACKET
-
17A22-74036 FITTING, SWIVEL BRACKETFITTING, SWIVEL BRACKET
-
1876110A1 LEVER ASSEMBLY, TiltLEVER ASSEMBLY, Tilt
-
1924-68932 SPRING, TORSION-PORTSPRING, TORSION-PORT
-
2068968 ROD, REVERSE LOCKROD, REVERSE LOCK
-
2268972 LEVER, REVERSE LOCKLEVER, REVERSE LOCK
-
2324-73124 SPRING, TORSION-STARBOARDSPRING, TORSION-STARBOARD
-
2422-74036 FITTINGFITTING
-
2579793A1 SCREW ASSEBMLY, AdjustmentSCREW ASSEBMLY, Adjustment
-
2625-20385 O-RING, (.239 x .070), ADJUSTMENT SCREWO-RING, (.239 x .070), ADJUSTMENT SCREW
