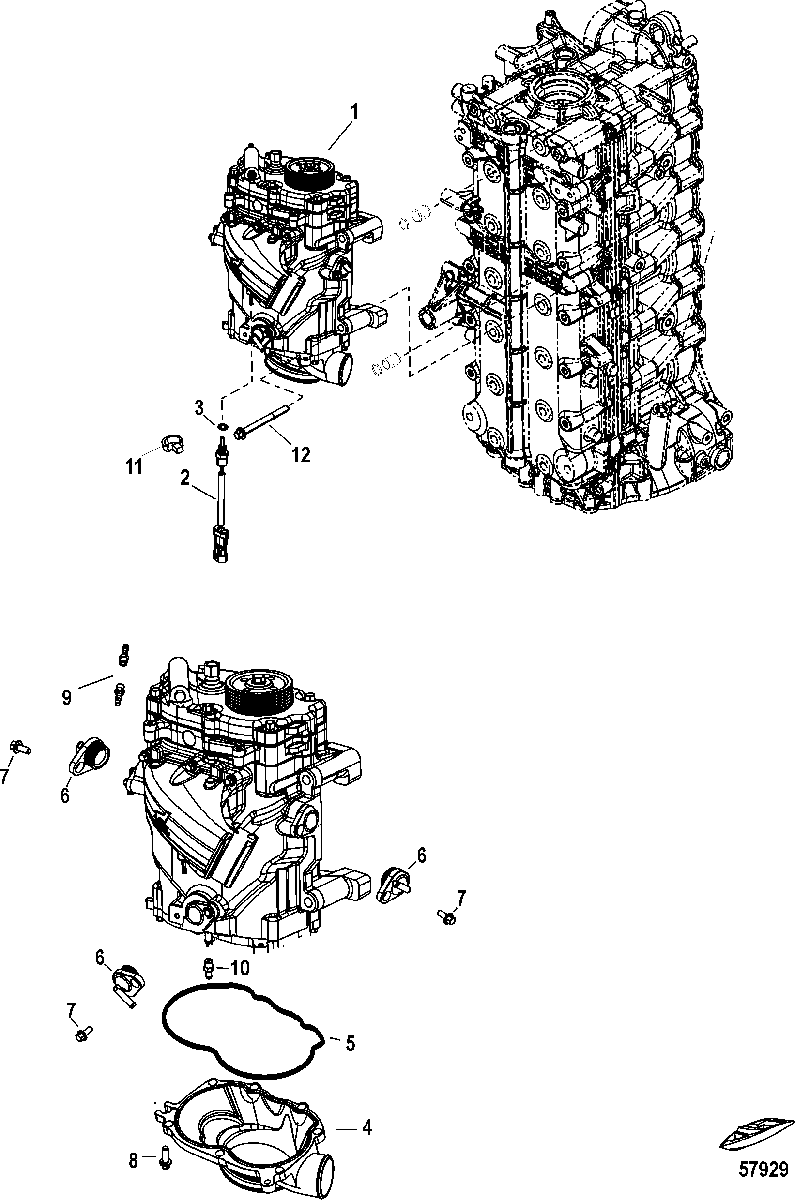

SuperCharger для Mercury - 350 VERADO (4-Stroke)(6 CYL.) 2B141617 & Up

  • №
    Артикул
    Название
  • 1
    8M0102453 SUPERCHARGER
    SUPERCHARGER
  • 2
    885342002 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 3
    25-896699 O-RING, (1.78 mm x .08 mm)
    O-RING, (1.78 mm x .08 mm)
  • 4
    8M0104083 DUCT ASSEMBLY, Inlet
    DUCT ASSEMBLY, Inlet
  • 5
    27-888947501 GASKET
    GASKET
  • 6
    22-8M0138655 FITTING, Water, Supercharger
    FITTING, Water, Supercharger
  • 7
    10-88552514 SCREW, (M6 x 14 MM) Stainless Steel
    SCREW, (M6 x 14 MM) Stainless Steel
  • 8
    10-888947502 BOLT
    BOLT
  • 9
    22-8M6003432 FITTING, Water, Supercharger
    FITTING, Water, Supercharger
  • 10
    8M6003433 FITTING, Water, Supercharger
    FITTING, Water, Supercharger
  • 11
    56762 TIE STRAP, (4.00 Inches)
    TIE STRAP, (4.00 Inches)
  • 12
    10-8M0103820 SCREW, (M10 x 105)
    SCREW, (M10 x 105)
