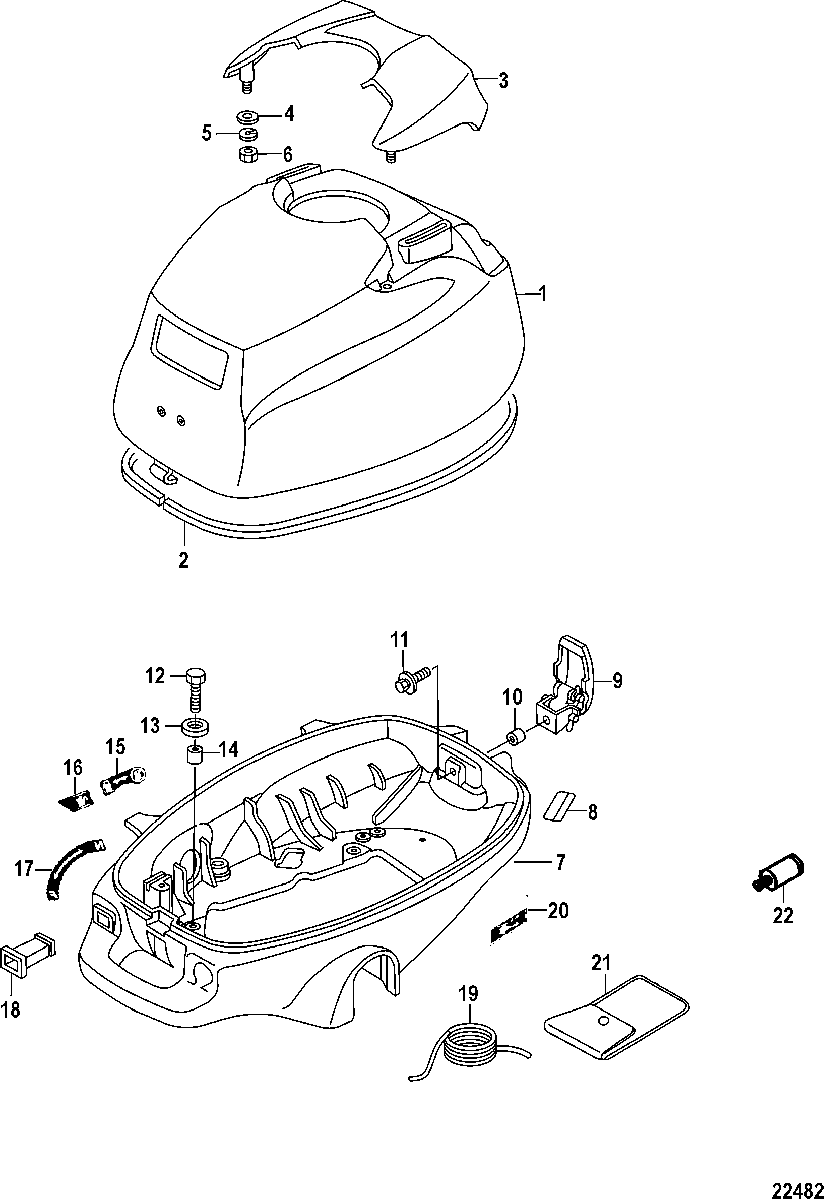

Cowling для Mercury - 3.5 (4-STROKE) Carb 0R131842 & Up
-
№АртикулНазвание
-
1100-8M0130974 TOP COWL ASSEMBLY, Mercury
SN# 0R399905 & BelowTOP COWL ASSEMBLY, Mercury
SN# 0R399905 & Below -
1100-8M0130974 TOP COWL ASSEMBLY, Black, no decals
SN# 0R399906 & UpTOP COWL ASSEMBLY, Black, no decals
SN# 0R399906 & Up -
1100-898103T80 TOP COWL ASSEMBLY, Mariner
SN# 0R399905 & BelowTOP COWL ASSEMBLY, Mariner
SN# 0R399905 & Below -
1100-8M0058617 TOP COWL ASSEMBLY, Silver, no decals
SN# 0R399906 & UpTOP COWL ASSEMBLY, Silver, no decals
SN# 0R399906 & Up -
28M0105122 SEAL, Cowl
SN# 0R399905 & BelowSEAL, Cowl
SN# 0R399905 & Below -
28M0111073 SEAL
SN# 0R399906 & UpSEAL
SN# 0R399906 & Up -
3898103T77 HANDLE, Tilt MercuryHANDLE, Tilt Mercury
-
3898103T79 HANDLE, Tilt MarinerHANDLE, Tilt Mariner
-
412-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
513-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
611-853722022 NUTNUT
-
-98-8M0098719 DECAL SET, Mercury 3.5
SN# 0R399905 & BelowDECAL SET, Mercury 3.5
SN# 0R399905 & Below -
-98-8M0098719 DECAL SET, Mercury 2.5
SN# 0R399905 & BelowDECAL SET, Mercury 2.5
SN# 0R399905 & Below -
-98-8M0098719 DECAL SET, Mercury 2
SN# 0R399905 & BelowDECAL SET, Mercury 2
SN# 0R399905 & Below -
-98-8M0098719 DECAL SET, Mercury, 2, 2.5, 3.5
SN# 0R399906 THRU 0R550755DECAL SET, Mercury, 2, 2.5, 3.5
SN# 0R399906 THRU 0R550755 -
-37-8M0081455 DECAL SET, Mercury Top Cowl
SN# 0R550756 & UpDECAL SET, Mercury Top Cowl
SN# 0R550756 & Up -
-37-8M0050645 DECAL, M-icon
SN# 0R550756 & UpDECAL, M-icon
SN# 0R550756 & Up -
-37-8M0081456 DECAL SET, Mercury, Lower Cowl
SN# 0R550756 & UpDECAL SET, Mercury, Lower Cowl
SN# 0R550756 & Up -
-37-8M0073668 DECAL, Horsepower 2
SN# 0R550756 & UpDECAL, Horsepower 2
SN# 0R550756 & Up -
-37-8M0073669 DECAL, Horsepower 2.5
SN# 0R550756 & UpDECAL, Horsepower 2.5
SN# 0R550756 & Up -
-37-8M0073670 DECAL, Horsepower 3.5
SN# 0R550756 & UpDECAL, Horsepower 3.5
SN# 0R550756 & Up -
-37-889246T15 DECAL SET, Mariner 3.5
SN# 0R399905 & BelowDECAL SET, Mariner 3.5
SN# 0R399905 & Below -
-37-889246T13 DECAL SET, Mariner 2.5
SN# 0R399905 & BelowDECAL SET, Mariner 2.5
SN# 0R399905 & Below -
-37-8M0072621 DECAL SET, Mariner, 2.5-3.5
SN# 0R399906 & UpDECAL SET, Mariner, 2.5-3.5
SN# 0R399906 & Up -
7898103T76 BOTTOM COWLBOTTOM COWL
-
8NSS NOT SOLD SEPARATE, Decal-Spark PlugNOT SOLD SEPARATE, Decal-Spark Plug
-
98M0063135 COWL LATCH ASSEMBLY
SN# 0R318095 & BelowCOWL LATCH ASSEMBLY
SN# 0R318095 & Below -
98M0063135 COWL LATCH ASSEMBLY
SN# 0R318096 THRU 0R399905COWL LATCH ASSEMBLY
SN# 0R318096 THRU 0R399905 -
98M0063135 COWL LATCH ASSEMBLY
SN# 0R399906 & UpCOWL LATCH ASSEMBLY
SN# 0R399906 & Up -
1023-952868 COLLARCOLLAR
-
1110-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1210-16832 BOLT, (M6 x 16)BOLT, (M6 x 16)
-
1312-953921 WASHERWASHER
-
1423-9528611 COLLARCOLLAR
-
158M0089675 DECAL, Fuel Lever
SN# 0R550755 & BelowDECAL, Fuel Lever
SN# 0R550755 & Below -
1637-896851013 DECAL, Oil LeverDECAL, Oil Lever
-
1737-896851012 DECAL, Shift (N-R)DECAL, Shift (N-R)
-
18898101373 BUSHINGBUSHING
-
1950-16230 SAFETY ROPESAFETY ROPE
-
2037-896851010 DECAL, Notice This Side Up
SN# 0R550755 & BelowDECAL, Notice This Side Up
SN# 0R550755 & Below -
2191-803581 TOOL KITTOOL KIT
-
2216841Q02 FLUSHING ATTACHMENTFLUSHING ATTACHMENT
-
-37-896851014 DECAL, Start Procedure
SN# 0R550755 & BelowDECAL, Start Procedure
SN# 0R550755 & Below
