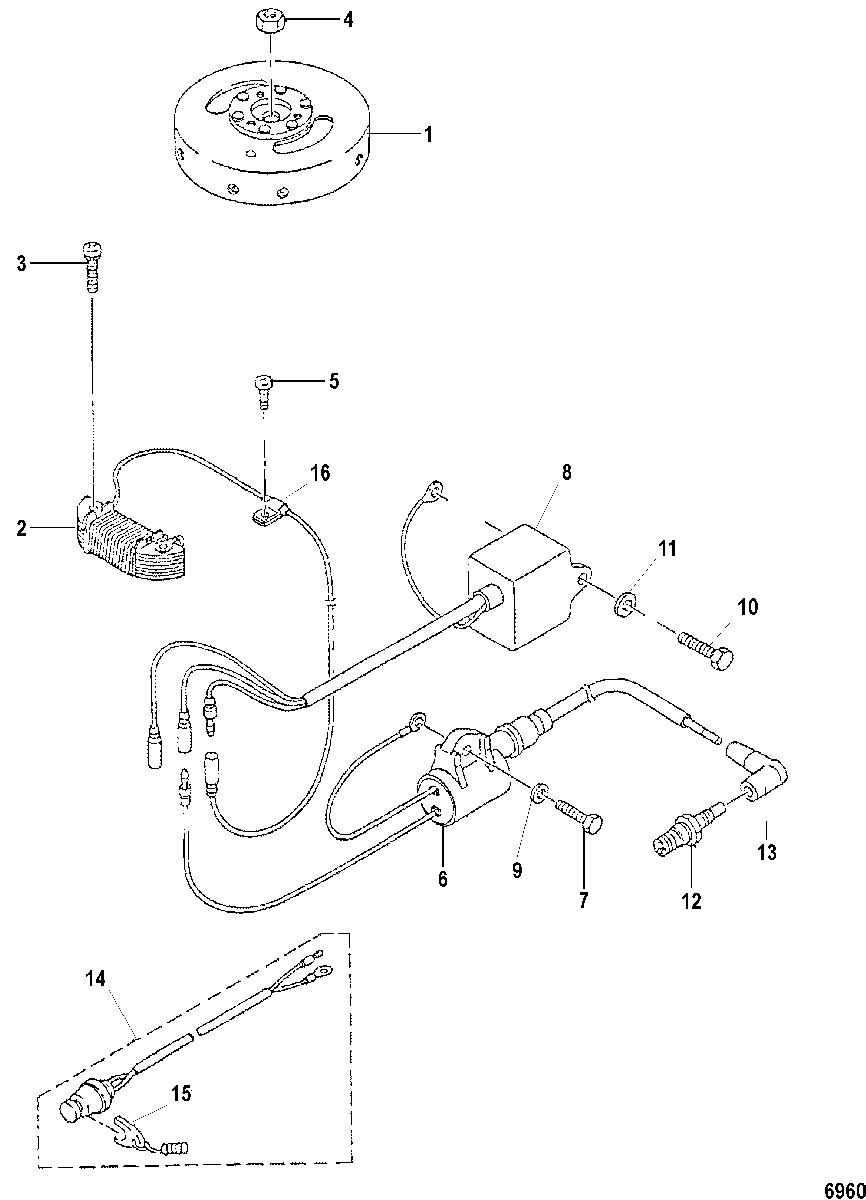

CD Ignition для Mercury - 3.3 0G710613 THRU 0T894576

  • №
    Артикул
    Название
  • -
    262-822899A1 FLYWHEEL MAGNETO ASSEMBLY
    FLYWHEEL MAGNETO ASSEMBLY
  • 1
    262-822899 FLYWHEEL
    FLYWHEEL
  • 2
    823030T1 EXCITER COIL
    EXCITER COIL
  • 3
    10-16059 SCREW
    SCREW
  • 4
    11-95233 NUT
    NUT
  • 5
    10-823031 SCREW
    SCREW
  • 6
    823033 IGNITION COIL
    IGNITION COIL
  • 7
    10-16705 BOLT
    BOLT
  • 8
    823034T CD UNIT
    CD UNIT
  • 9
    12-953921 WASHER
    WASHER
  • 10
    10-16832 BOLT, (M6 x 16)
    BOLT, (M6 x 16)
  • 11
    12-953921 WASHER
    WASHER
  • 12
    33-8M0114743 SPARK PLUG
    (NGK#BP6HS-10)
    SPARK PLUG
    (NGK#BP6HS-10)
  • 12
    33-19796 SPARK PLUG
    (NGK#BPR6HS-10)(With Resistance)
    SPARK PLUG
    (NGK#BPR6HS-10)(With Resistance)
  • 13
    85-855543 PLUG CAP
    PLUG CAP
  • 14
    87-823037A04 EMERGENCY STOP SWITCH ASSEMBLY
    SN# USA-0T879554/BEL-0P325499 & Below
    EMERGENCY STOP SWITCH ASSEMBLY
    SN# USA-0T879554/BEL-0P325499 & Below
  • 14
    87-823037A04 EMERGENCY STOP SWITCH ASSEMBLY
    SN# USA-0T879555/BEL-0P325500 & Up
    EMERGENCY STOP SWITCH ASSEMBLY
    SN# USA-0T879555/BEL-0P325500 & Up
  • 15
    823054 LANYARD
    LANYARD
  • 16
    54-160601 CLAMP
    CLAMP
