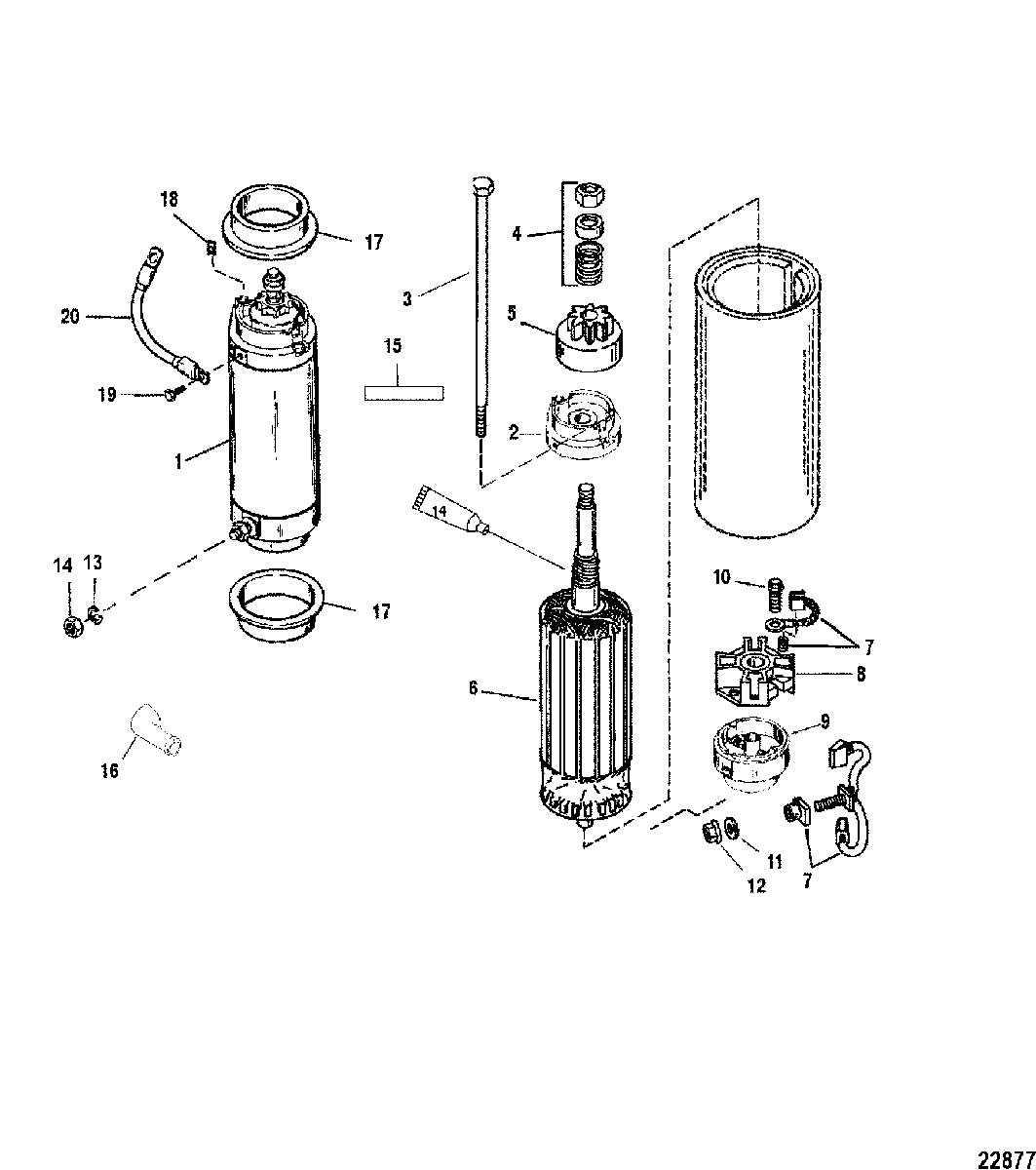

STARTER MOTOR(225-S/N-0T467441/250-S/N-0T467334 &BELOW) для Mercury - 3.0L EFI SEAPRO 0T409000 THRU 0T800999
-
№АртикулНазвание
-
150-898265013 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
275660 PLATEPLATE
-
310-749681 THRU BOLTTHRU BOLT
-
48236401 DRIVE KITDRIVE KIT
-
5898265015 PINIONPINION
-
68236381 ARMATUREARMATURE
-
7898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
8898265014 HOLDERHOLDER
-
915386001 END CAPEND CAP
-
10F15158 SCREWSCREW
-
1113-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1211-64015 NUT, (.250-20)NUT, (.250-20)
-
1313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1411-20890 NUT, (.250-20)NUT, (.250-20)
-
1537-8272822 DECAL, Warning, High VoltageDECAL, Warning, High Voltage
-
1685-8500673 BOOT, Insulator - YellowBOOT, Insulator - Yellow
-
1723-8M0034918 COLLARCOLLAR
-
188M0043376 STOP, RubberSTOP, Rubber
-
1910-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless SteelSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
-
2084-93388A1 CABLE ASSEMBLY, (6.00 Inches) BlackCABLE ASSEMBLY, (6.00 Inches) Black
