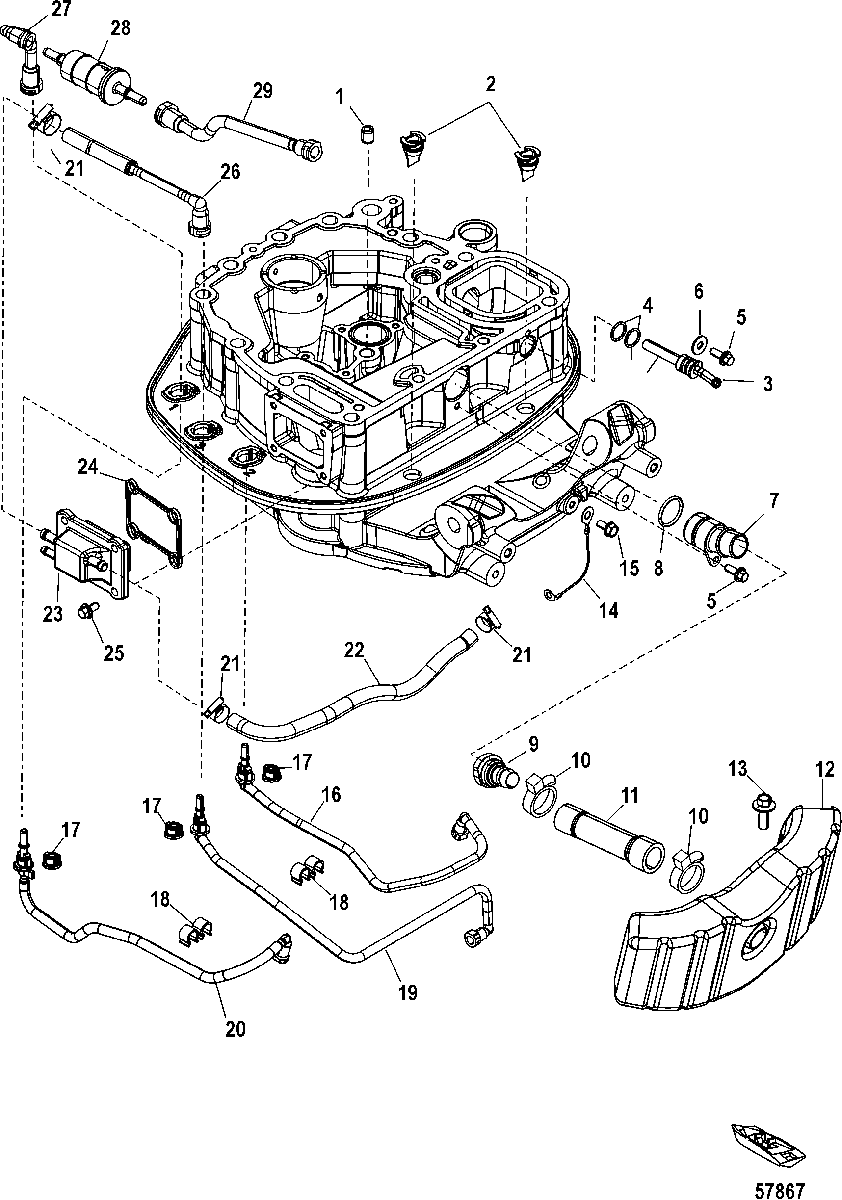

Adaptor Plate Hose Routings для Mercury - 300 VERADO (4-STROKE)(6 CYL.) 2B144123 & Up

№

Артикул

Название
1

17-884474001 PIN, Dowel (12 mm)

PIN, Dowel (12 mm)
2

888819002 DRAIN, Cowl

DRAIN, Cowl
3

22-888461A01 FITTING KIT

FITTING KIT
4

25-892446 O-RING, (14 X 1.78 MM)

O-RING, (14 X 1.78 MM)
5

10-8M0103804 SCREW, (M6 x 12 MM) Stainless Steel

SCREW, (M6 x 12 MM) Stainless Steel
6

12-4002316 WASHER

WASHER
7

22-889792A01 FITTING KIT, Idle Exhaust

FITTING KIT, Idle Exhaust
8

25-889828 O-RING, (.924 x .103)

O-RING, (.924 x .103)
9

22-889846 FITTING

FITTING
10

54-816311T TIE STRAP, (8.00 Inches)

TIE STRAP, (8.00 Inches)
11

32-888981001 HOSE, Idle Exhaust

HOSE, Idle Exhaust
12

892384T PLENUM, Exhaust

PLENUM, Exhaust
13

10-4006731 SCREW, (M6 x 16)

SCREW, (M6 x 16)
14

88238A21 CABLE ASSEMBLY

CABLE ASSEMBLY
15

10-40011126 SCREW, (M6 x 13) Stainless Steel

SCREW, (M6 x 13) Stainless Steel
16

32-8M0084774 HOSE, Manifold Reference , Lower

HOSE, Manifold Reference , Lower
17

25-884546 GROMMET

GROMMET
18

888523001 CLIP

CLIP
19

32-8M0129144 HOSE, Water In, Lower

HOSE, Water In, Lower
20

32-8M0084660 HOSE, Fuel Out, Fuel Supply Module

HOSE, Fuel Out, Fuel Supply Module
21

54-815504104 CLAMP, Worm Gear

CLAMP, Worm Gear
22

32-8M0108349 TUBING, (.312) (70 Inches Bulk), Cut to 21 Inches

TUBING, (.312) (70 Inches Bulk), Cut to 21 Inches
23

892562T01 HOUSING, Manifold

HOUSING, Manifold
24

892117 SEAL

SEAL
25

10-8M0103805 SCREW, (M6 x 16 MM) Stainless Steel

SCREW, (M6 x 16 MM) Stainless Steel
26

32-887756 HOSE, Water In-Upper

HOSE, Water In-Upper
27

32-8M0087104 HOSE, Hi Pressure Filter

HOSE, Hi Pressure Filter
28

35-879885Q FILTER, Fuel In-Line

FILTER, Fuel In-Line
29

32-8M0087122 HOSE, Hi Pressure Filter to Fuel Rail

HOSE, Hi Pressure Filter to Fuel Rail
-

27-880552A07 GASKET SET, Powerhead

GASKET SET, Powerhead
-

61-896966A07 ASSEMBLY, Long Block

ASSEMBLY, Long Block
