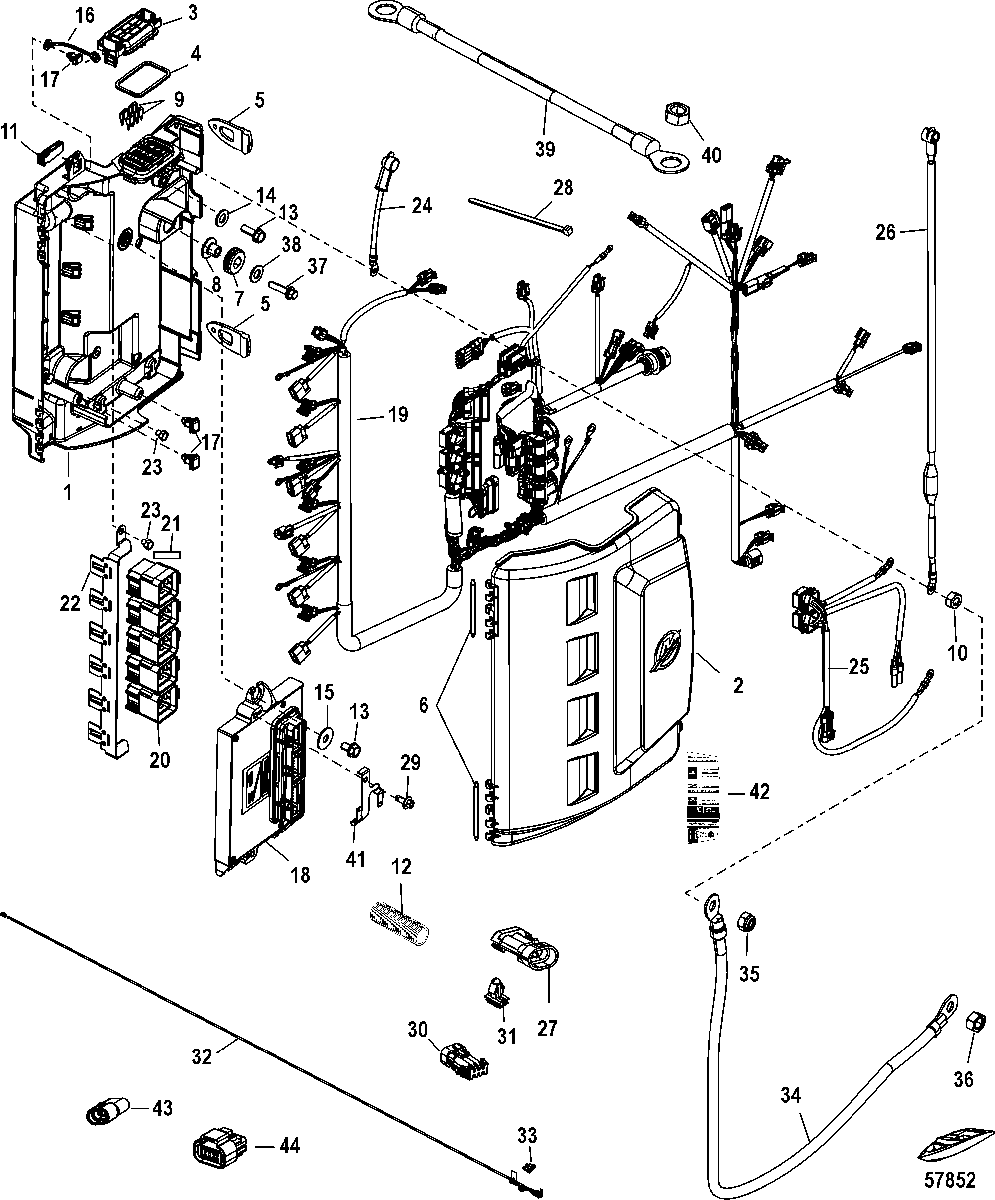

Electrical Box Components для Mercury - 300 PRO VERADO (4-Stroke)(6 CYL.) 2B144123 & Up

  • №
    Артикул
    Название
  • 1
    885560T03 BASE, Electrical Box
    BASE, Electrical Box
  • 2
    885561T COVER, Fuse Box
    COVER, Fuse Box
  • 3
    888491 COVER, Fuse
    COVER, Fuse
  • 4
    25-885583 SEAL
    SEAL
  • 5
    889531 STRAP
    STRAP
  • 6
    885584 PIN, Hinge
    PIN, Hinge
  • 7
    25-833155 GROMMET
    GROMMET
  • 8
    23-8502341 BUSHING
    BUSHING
  • 9
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    FUSE, Mini - Yellow - 20 Ampere
  • 10
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 11
    895099 EXTRACTOR, Fuse
    EXTRACTOR, Fuse
  • 12
    32-828547753 CONDUIT, (.750 Inside Diameter x 3.00 Feet Bulk)
    CONDUIT, (.750 Inside Diameter x 3.00 Feet Bulk)
  • 13
    10-40011146 SCREW, (M8 x 13) Stainless Steel
    SCREW, (M8 x 13) Stainless Steel
  • 14
    12-843108 WASHER, (.330 x .560 x .060) Stainless Steel
    WASHER, (.330 x .560 x .060) Stainless Steel
  • 15
    12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel
    WASHER, (.344 x 1.00 x .063) Stainless Steel
  • 16
    892244 STRAP, Cover
    STRAP, Cover
  • 17
    54-879962 CLIP
    CLIP
  • 18
    8M0103415 PROPULSION CONTROL MODULE, 200 Pro (2 Star)
    PROPULSION CONTROL MODULE, 200 Pro (2 Star)
  • 18
    8M0103421 PROPULSION CONTROL MODULE, 250 Pro (2 Star)
    PROPULSION CONTROL MODULE, 250 Pro (2 Star)
  • 18
    8M0103427 PROPULSION CONTROL MODULE, 300 Pro (2 Star)
    PROPULSION CONTROL MODULE, 300 Pro (2 Star)
  • 19
    84-8M0102454 HARNESS ASSEMBLY, Engine
    HARNESS ASSEMBLY, Engine
  • 20
    882751A04 RELAY ASSEMBLY
    RELAY ASSEMBLY
  • 21
    NSS NOT SOLD SEPARATE, Decal-Trim Relay
    NOT SOLD SEPARATE, Decal-Trim Relay
  • 22
    889532 BRACKET
    BRACKET
  • 23
    10-40007103 SCREW, (M5 x 6)
    SCREW, (M5 x 6)
  • 24
    84-93388A17 CABLE ASSEMBLY, (8.50 Inches)
    CABLE ASSEMBLY, (8.50 Inches)
  • 25
    84-879345T34 HARNESS ASSEMBLY, Trim
    HARNESS ASSEMBLY, Trim
  • 26
    84-8M0088927 HARNESS ASSEMBLY, Fuse
    HARNESS ASSEMBLY, Fuse
  • 27
    830796A03 CONNECTOR ASSEMBLY, Weather Cap - 2 Pin Male
    CONNECTOR ASSEMBLY, Weather Cap - 2 Pin Male
  • 28
    54-850181 TIE STRAP, (11.750 Inches)
    TIE STRAP, (11.750 Inches)
  • 28
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 29
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 30
    877613A02 CONNECTOR ASSEMBLY, Weather Cap 6 Pin
    CONNECTOR ASSEMBLY, Weather Cap 6 Pin
  • 31
    54-879962 CLIP
    CLIP
  • 32
    84-8M0113732 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 33
    862646 FUSE, Tan - 5 Ampere
    FUSE, Tan - 5 Ampere
  • 34
    84-88439A25 CABLE ASSEMBLY, Battery - Positive
    (Long)
    CABLE ASSEMBLY, Battery - Positive
    (Long)
  • 35
    11-401388 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 36
    11-86226 NUT, (.375-16), Battery Cable-Positive
    NUT, (.375-16), Battery Cable-Positive
  • 37
    10-8M0103814 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 38
    12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel
    WASHER, (.344 x 1.00 x .063) Stainless Steel
  • 39
    84-88439A26 CABLE ASSEMBLY, Battery - Negative
    (Long)
    CABLE ASSEMBLY, Battery - Negative
    (Long)
  • 40
    11-68292 NUT, (.312-18), Battery Cable-Negative
    NUT, (.312-18), Battery Cable-Negative
  • 41
    54-891520001 CLIP
    CLIP
  • 42
    37-8M0087378 DECAL , Maintenance Schedule
    DECAL , Maintenance Schedule
  • 43
    893388A01 CAP, Resitor - 2 Pin, 120 Ohm (CAN 1, 2 and 3)
    CAP, Resitor - 2 Pin, 120 Ohm (CAN 1, 2 and 3)
  • 44
    8M0055652 TERMINATOR ASSEMBLY, 10 Pin (CAN 1P and H)
    TERMINATOR ASSEMBLY, 10 Pin (CAN 1P and H)
