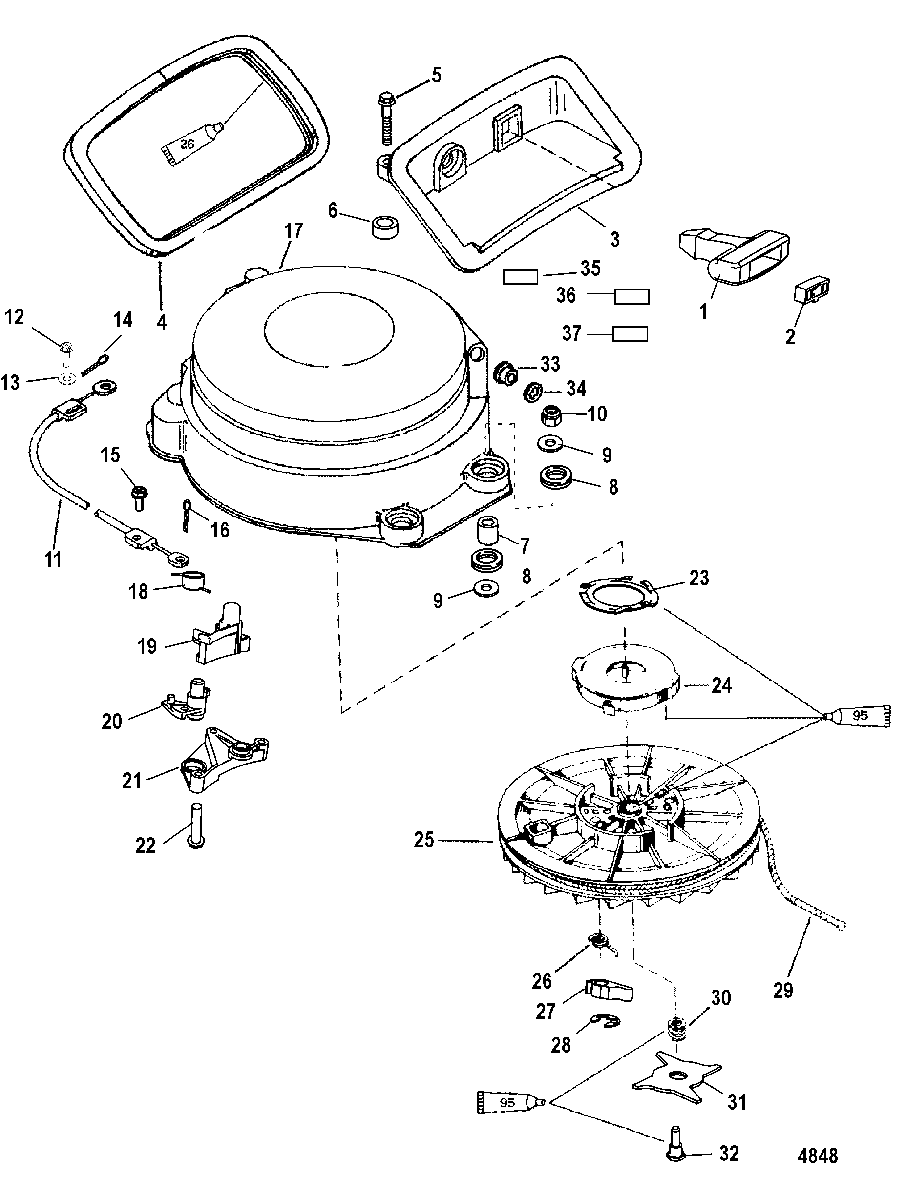

Starter Assembly(Manual) для Mercury - 30 JET (3 CYL.) 0G760300 THRU 0T408999

  • №
    Артикул
    Название
  • 1
    85174A1 HANDLE ASSEMBLY
    HANDLE ASSEMBLY
  • 2
    NSS NOT SOLD SEPARATE
    (Retainer)
    NOT SOLD SEPARATE
    (Retainer)
  • -
    821788A6 REST ASSEMBLY, Starter Handle
    REST ASSEMBLY, Starter Handle
  • 3
    NSS NOT SOLD SEPARATE
    (Rest)
    NOT SOLD SEPARATE
    (Rest)
  • 4
    8M0043416 SEAL
    SEAL
  • 5
    10-4010630 SCREW, (M6 x 30) Stainless Steel
    SCREW, (M6 x 30) Stainless Steel
  • 6
    23-830190 SPACER
    SPACER
  • 7
    23-816086 BUSHING
    BUSHING
  • 8
    25-8157951 GROMMET
    GROMMET
  • 9
    12-858779 WASHER, (.265 x .750 x .048)
    WASHER, (.265 x .750 x .048)
  • 10
    11-401196 NUT, (M6)
    NUT, (M6)
  • 11
    8567541 CABLE, Interlock
    CABLE, Interlock
  • 12
    10-8214281 SCREW, (#10-16 x .625)
    SCREW, (#10-16 x .625)
  • 13
    12-73288 WASHER, (.220 x .500 x .030) Stainless Steel
    WASHER, (.220 x .500 x .030) Stainless Steel
  • 14
    18-26811 COTTER PIN
    COTTER PIN
  • 15
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 16
    18-26811 COTTER PIN
    COTTER PIN
  • -
    816728T14 STARTER ASSEMBLY, Recoil
    STARTER ASSEMBLY, Recoil
  • 17
    816728T05 HOUSING
    HOUSING
  • 18
    24-826791 SPRING
    SPRING
  • 19
    8166903 LEVER
    LEVER
  • 20
    816712T01 CAM
    CAM
  • 21
    816711 RETAINER
    RETAINER
  • 22
    10-8182491 SCREW, (#10-16 x 1.00)
    SCREW, (#10-16 x 1.00)
  • 23
    13-826229 LOCKWASHER, SPRING
    LOCKWASHER, SPRING
  • 24
    24-86857T01 SPRING
    SPRING
  • 25
    50-825269T01 SHEAVE, Starter
    SHEAVE, Starter
  • 26
    24-86851T02 SPRING
    SPRING
  • 27
    868501 CAM
    CAM
  • 28
    53-86849T01 RING, Retaining
    RING, Retaining
  • 29
    50-12066Q10 ROPE
    ROPE
  • 30
    24-868523 SPRING
    SPRING
  • 31
    86853T01 CAM
    CAM
  • 32
    10-826253 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 33
    42690 BUSHING
    BUSHING
  • 34
    53-818853 RING, Retaining
    RING, Retaining
  • 35
    NSS NOT SOLD SEPARATE
    (Timing Decal)
    NOT SOLD SEPARATE
    (Timing Decal)
  • 36
    NSS NOT SOLD SEPARATE
    (Decal-Caution in Gear Idle)
    NOT SOLD SEPARATE
    (Decal-Caution in Gear Idle)
  • 37
    37-856985A7 DECAL, EPA Label Information
    (1999)
    DECAL, EPA Label Information
    (1999)
  • 37
    37-804665A00 DECAL, EPA Label Information
    (2000)
    DECAL, EPA Label Information
    (2000)
  • 37
    37-804665A01 DECAL, EPA Label Information
    (2001)
    DECAL, EPA Label Information
    (2001)
  • 37
    37-804665A02 DECAL, EPA Label Information
    (2002)
    DECAL, EPA Label Information
    (2002)
  • 37
    37-804665A03 DECAL, EPA Label Information
    (2003)
    DECAL, EPA Label Information
    (2003)
  • 37
    37-804665A04 DECAL, EPA Label Information
    (2004)
    DECAL, EPA Label Information
    (2004)
