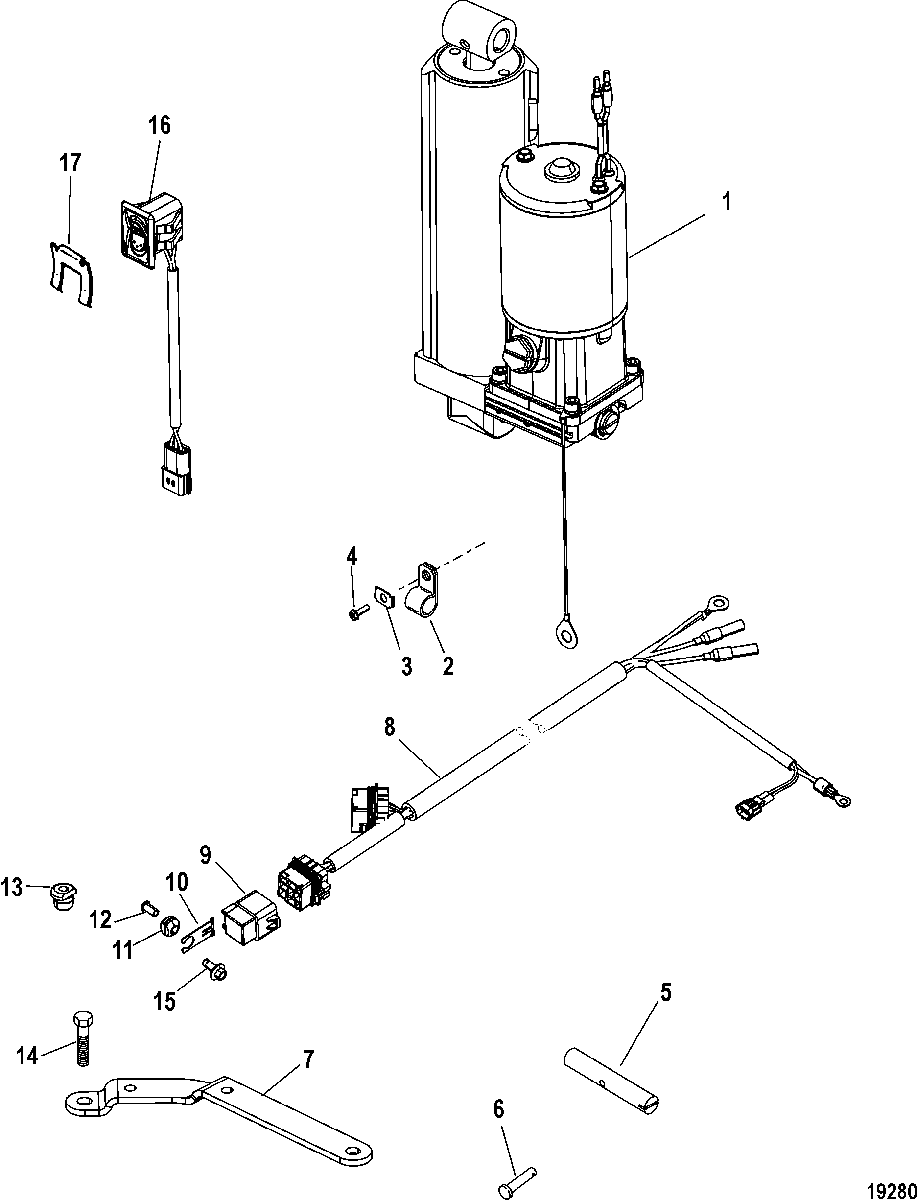

Power Trim Kit, 830150A11 для Mercury - 30 EFI (3 CYL.)(4-STROKE) 1C109093 & Up

  • №
    Артикул
    Название
  • _
    8M0055003 POWER TRIM KIT
    EFI 30/40 4-Stroke
    POWER TRIM KIT
    EFI 30/40 4-Stroke
  • 1
    8M0055006 PUMP ASSEMBLY, Power Trim
    See Pump/Motor Assembly Section For Parts Breakdown
    PUMP ASSEMBLY, Power Trim
    See Pump/Motor Assembly Section For Parts Breakdown
  • 2
    54-22740 CLIP
    CLIP
  • 3
    8M0084613 C WASHER
    C WASHER
  • 4
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 5
    17-822869001 PIN, Upper
    PIN, Upper
  • 6
    17-821539 PIN, Trilobe
    PIN, Trilobe
  • 7
    882831 BRACKET
    BRACKET
  • 8
    84-826802T34 HARNESS/RELAY ASSEMBLY
    HARNESS/RELAY ASSEMBLY
  • 9
    882751A1 RELAY ASSEMBLY
    RELAY ASSEMBLY
  • 10
    828102 BRACKET, Relay Mount
    BRACKET, Relay Mount
  • 11
    25-818967 GROMMET
    GROMMET
  • 12
    23-818968 BUSHING
    BUSHING
  • 13
    25-19565002 GROMMET
    GROMMET
  • 14
    10-8248324 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 15
    10-82129125 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • 16
    87-8M0042300 SWITCH, Trim
    SWITCH, Trim
  • 17
    8M0032848 RETAINER, Trim Switch
    RETAINER, Trim Switch
