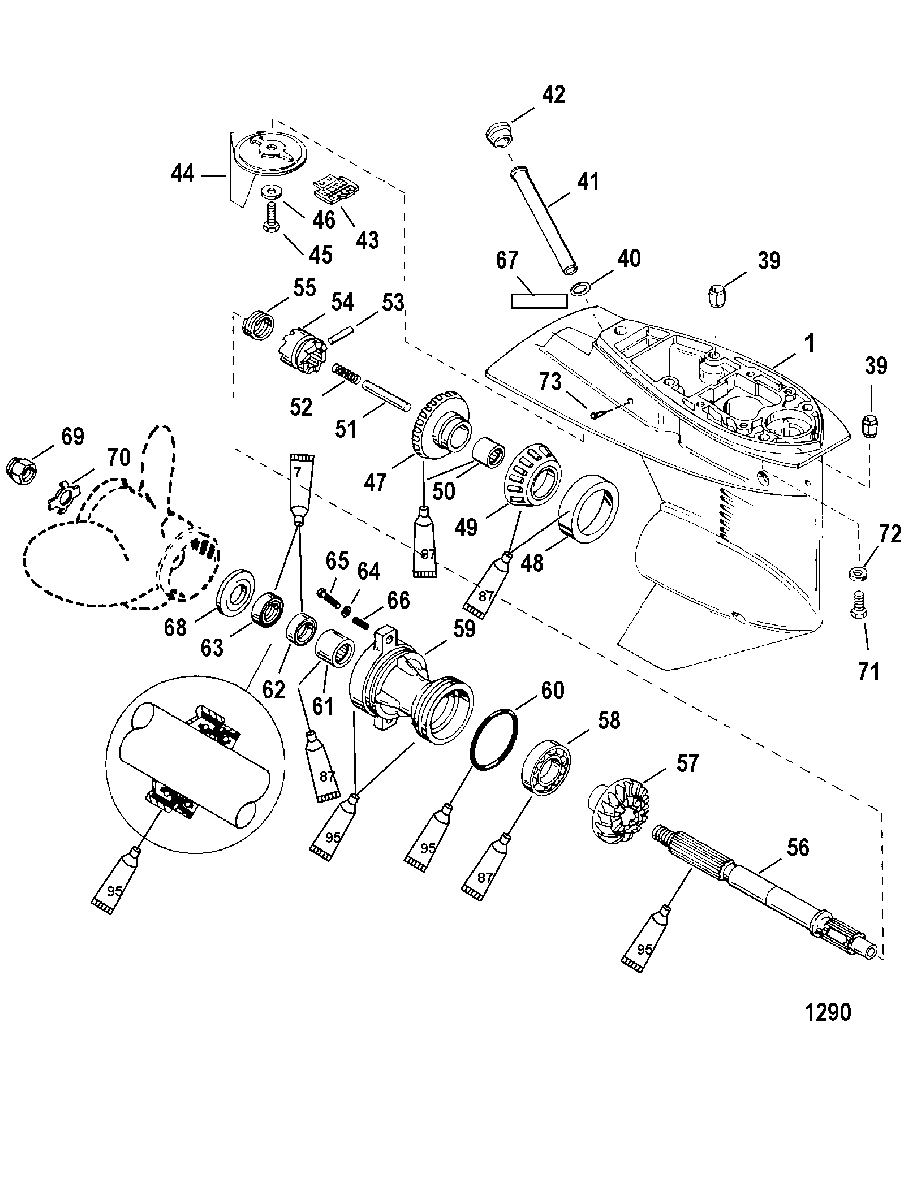

Gear Housing, Propeller Shaft - 2:1 Gear Ratio для Mercury - 30 EFI (3 CYL.)(4-STROKE) 0T409000 THRU 1B226999
-
№АртикулНазвание
-
-1682-821306T54 GEAR HOUSING ASSEMBLY, (3.44 Inch/87.37 mm Torpedo Diameter) Complete
(SHORT)GEAR HOUSING ASSEMBLY, (3.44 Inch/87.37 mm Torpedo Diameter) Complete
(SHORT) -
-1682-821306T17 GEAR HOUSING ASSEMBLY, Complete
(LONG)GEAR HOUSING ASSEMBLY, Complete
(LONG) -
11682-821306T12 GEAR HOUSING ASSEMBLY, Basic
(BASIC)GEAR HOUSING ASSEMBLY, Basic
(BASIC) -
3917-821327 PIN, DowelPIN, Dowel
-
4027-823942 GASKETGASKET
-
4132-8M0026108 TUBETUBE
-
4219-824928001 PLUG, Rubber
SN# USA-0T979999/BEL-0P325499 & BelowPLUG, Rubber
SN# USA-0T979999/BEL-0P325499 & Below -
4219-824928001 PLUG, Rubber
SN# USA-0T980000/BEL-0P325500 & UpPLUG, Rubber
SN# USA-0T980000/BEL-0P325500 & Up -
43821829 SCREENSCREEN
-
44822157T2 TRIM TABTRIM TAB
-
4510-82497020 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
4612-72397 WASHERWASHER
-
4743-821315T1 GEAR ASSEMBLY, Forward - 26 Teeth (26 TEETH)GEAR ASSEMBLY, Forward - 26 Teeth (26 TEETH)
-
4831-8M0103470 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
49NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
5031-41326 BEARING, RollerBEARING, Roller
-
51821578 FOLLOWER, CamFOLLOWER, Cam
-
5224-8261991 SPRINGSPRING
-
5317-8M0020999 PINPIN
-
5452-821314T CLUTCHCLUTCH
-
5524-38114 SPRINGSPRING
-
5644-8M0140441 PROPELLER SHAFTPROPELLER SHAFT
-
5743-821312T1 GEAR, Reverse - 26 Teeth (26 TEETH)GEAR, Reverse - 26 Teeth (26 TEETH)
-
5830-20839T BEARING, BallBEARING, Ball
-
5919291A3 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
6025-815460 O-RINGO-RING
-
6131-21700 BEARING, NeedleBEARING, Needle
-
6226-69188 SEAL, OilSEAL, Oil
-
6326-69189 SEAL, OilSEAL, Oil
-
6412-855941 WASHER, (.323 x .590 x .112) Stainless SteelWASHER, (.323 x .590 x .112) Stainless Steel
-
6510-85594030 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
668227731 INSERT, ThreadedINSERT, Threaded
-
67NSS NOT SOLD SEPARATE, Decal 2:1NOT SOLD SEPARATE, Decal 2:1
-
6873345A1 THRUST HUBTHRUST HUB
-
6911-69578Q1 PROP NUT KITPROP NUT KIT
-
7014-76281 TAB WASHERTAB WASHER
-
7110-4000380 SCREW, (M10 x 45)SCREW, (M10 x 45)
-
7212-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
7319-95925 PLUGPLUG
-
-823547A03 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
