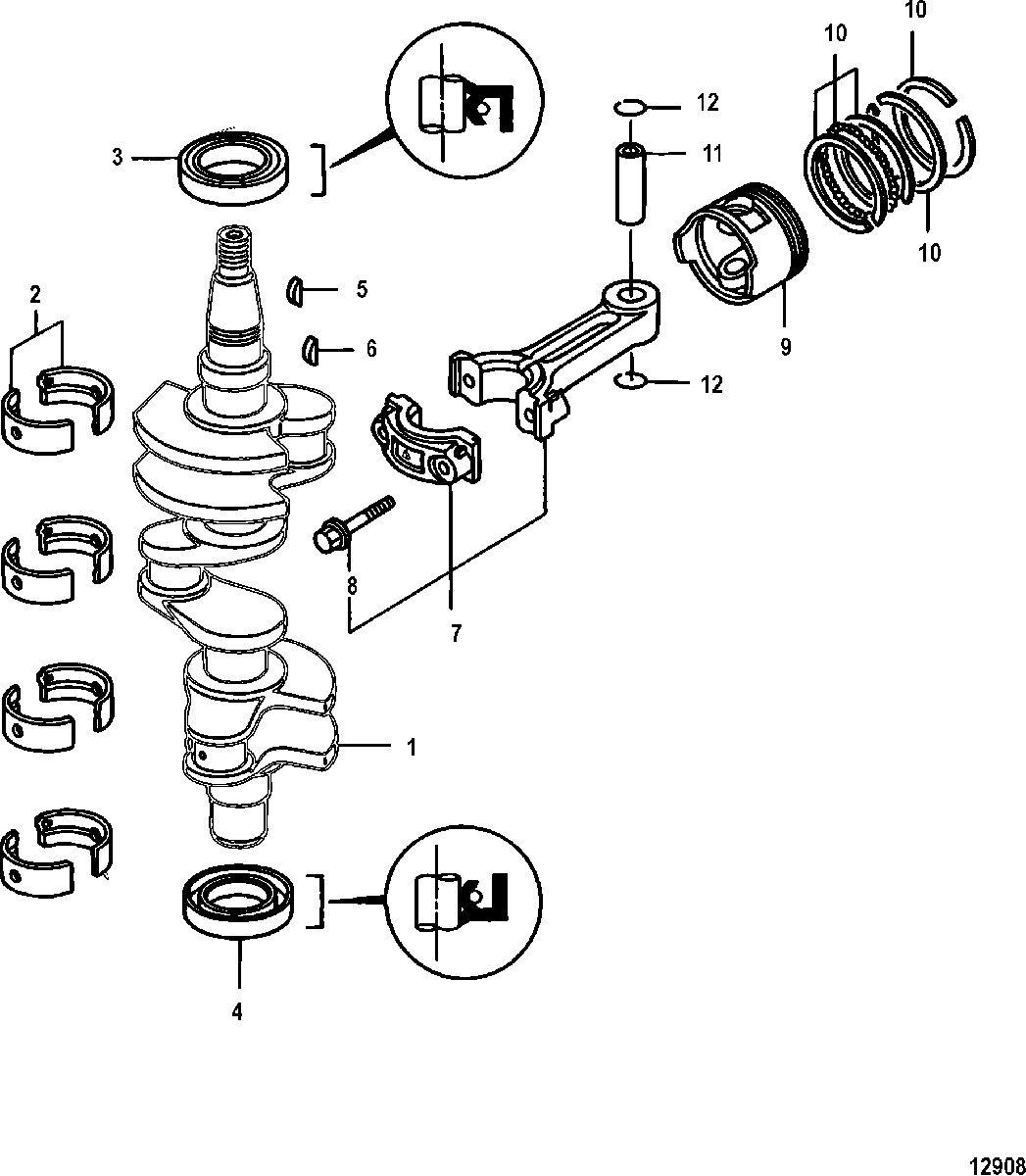

Crankshaft, Pistons and Connecting Rods для Mercury - 30 EFI (3 CYL.)(4-STROKE) 0R106999 & Up

  • №
    Артикул
    Название
  • 1
    401-889246T32 CRANKSHAFT ASSEMBLY
    SN# 0R130205 & Below
    CRANKSHAFT ASSEMBLY
    SN# 0R130205 & Below
  • 1
    401-889246T32 CRANKSHAFT ASSEMBLY
    SN# 0R130206 & Up
    CRANKSHAFT ASSEMBLY
    SN# 0R130206 & Up
  • 2
    23-898101T08 BEARING, Thrust - Red
    BEARING, Thrust - Red
  • 2
    23-898101T07 BEARING, Thrust - Blue
    BEARING, Thrust - Blue
  • 3
    26-855681002 SEAL, Oil, Upper
    SEAL, Oil, Upper
  • 4
    26-898101123 SEAL, Oil, Lower
    SEAL, Oil, Lower
  • 5
    28-160531 KEY
    KEY
  • 6
    28-825666001 KEY, Timing Pulley
    KEY, Timing Pulley
  • 7
    600-8M0124940 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 8
    10-8035092 BOLT
    BOLT
  • 9
    713-898103A08 PISTON ASSEMBLY
    PISTON ASSEMBLY
  • 10
    39-898103T35 RING SET, Piston
    Services one piston
    RING SET, Piston
    Services one piston
  • 11
    41-898103113 PIN, Piston
    PIN, Piston
  • 12
    53-160573 E RING
    E RING
  • -
    889246T30 SHORT BLOCK
    30 Horsepower SN# 0R122288 & Below
    SHORT BLOCK
    30 Horsepower SN# 0R122288 & Below
  • -
    889246T30 SHORT BLOCK
    30 Horsepower SN# 0R122289 & Up
    SHORT BLOCK
    30 Horsepower SN# 0R122289 & Up
  • -
    898103T34 SHORT BLOCK
    25 Horsepower
    SHORT BLOCK
    25 Horsepower
  • -
    27-8M0079064 GASKET SET, Powerhead
    GASKET SET, Powerhead
