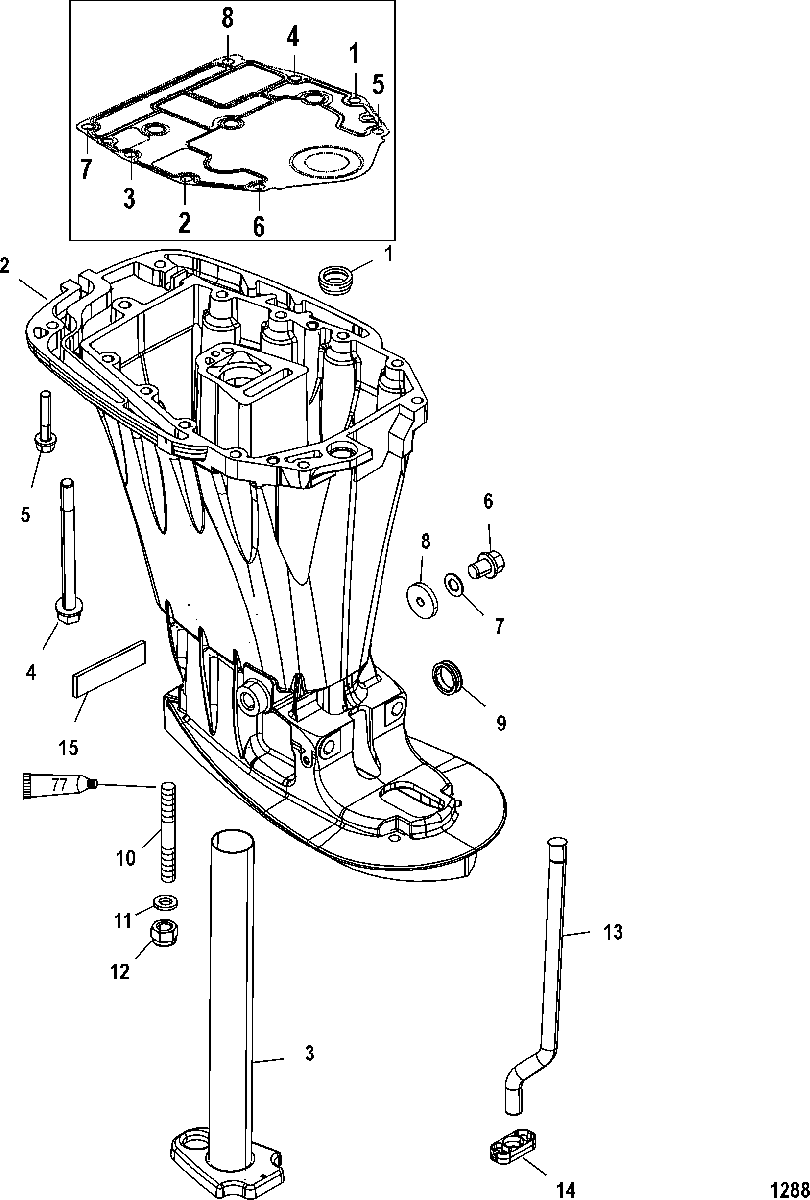

Driveshaft Housing для Mercury - 30 EFI (3 CYL.)(4-STROKE) 0P153500 THRU 0P400999

  • №
    Артикул
    Название
  • 1
    42941001 SEAL, Water Tube
    SN# USA-0T979999/BEL-0P325499 & Below
    SEAL, Water Tube
    SN# USA-0T979999/BEL-0P325499 & Below
  • 1
    42941001 SEAL, Water Tube
    SN# USA-0T980000/BEL-0P325500 & Up
    SEAL, Water Tube
    SN# USA-0T980000/BEL-0P325500 & Up
  • 2
    1501-850168T5 HOUSING, Driveshaft
    (SHORT)
    HOUSING, Driveshaft
    (SHORT)
  • 2
    3532-825218T7 HOUSING ASSEMBLY, Driveshaft
    (LONG)
    HOUSING ASSEMBLY, Driveshaft
    (LONG)
  • 3
    NSS NOT SOLD SEPARATE, Exhaust Pipe
    SHORT
    NOT SOLD SEPARATE, Exhaust Pipe
    SHORT
  • 3
    825220T06 PIPE, Exhaust
    LONG
    PIPE, Exhaust
    LONG
  • 4
    10-824459110 SCREW, (M8 x 110) Stainless Steel
    SCREW, (M8 x 110) Stainless Steel
  • 5
    10-88960845 SCREW, (M8 x 45)
    SCREW, (M8 x 45)
  • 6
    8288181 PLUG, Drain
    PLUG, Drain
  • 7
    27-828816 GASKET
    GASKET
  • 8
    826276 BUMPER
    BUMPER
  • 9
    25-8M4504002 GROMMET
    (LONG) SN# USA-0T979999/BEL-0P325499 & Below
    GROMMET
    (LONG) SN# USA-0T979999/BEL-0P325499 & Below
  • 9
    25-8M4504002 GROMMET
    SN# USA-0T980000/BEL-0P325500 & Up
    GROMMET
    SN# USA-0T980000/BEL-0P325500 & Up
  • 10
    16-823984 STUD, (M10 x 50)
    STUD, (M10 x 50)
  • 11
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 12
    11-40140 NUT, (M10)
    NUT, (M10)
  • 13
    32-897970A01 TUBE, Water
    (SHORT)
    TUBE, Water
    (SHORT)
  • 13
    32-897971A01 TUBE, Water
    (LONG)
    TUBE, Water
    (LONG)
  • 14
    54-828529 GUIDE
    GUIDE
  • 15
    8M0043364 BUMPER
    (LONG)
    BUMPER
    (LONG)
