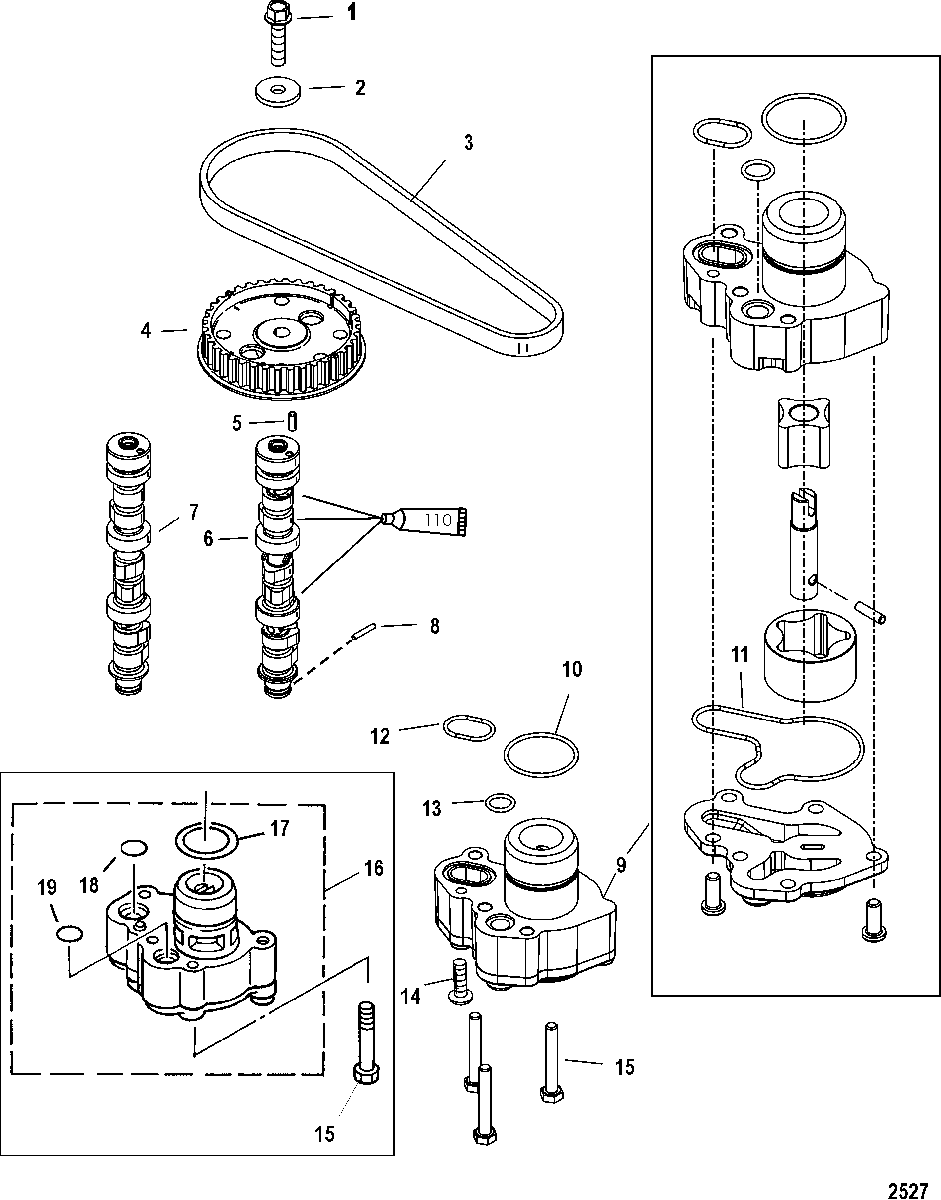

Camshaft/Oil Pump для Mercury - 30 Carb (3 CYL.)(4-STROKE) 0T409000 THRU 1B226999

  • №
    Артикул
    Название
  • 1
    10-82761140 SCREW, (M10 x 40)
    SCREW, (M10 x 40)
  • 2
    12-4002320 WASHER
    WASHER
  • 3
    57-8M0065179 BELT
    BELT
  • 4
    833104T6 GEAR, Driven
    GEAR, Driven
  • 5
    17-878183 PIN, Dowel
    PIN, Dowel
  • 6
    400-8M0082064 CAMSHAFT
    (MANUAL)
    CAMSHAFT
    (MANUAL)
  • 7
    402-834781T1 CAMSHAFT
    (ELECTRIC)
    CAMSHAFT
    (ELECTRIC)
  • 8
    17-826149 PIN
    PIN
  • 9
    857087T1 PUMP ASSEMBLY, Oil
    (OVAL PORT)
    PUMP ASSEMBLY, Oil
    (OVAL PORT)
  • 10
    25-857096 O-RING
    (OVAL PORT)
    O-RING
    (OVAL PORT)
  • 11
    NSS NOT SOLD SEPARATE, O Ring
    (OVAL PORT)
    NOT SOLD SEPARATE, O Ring
    (OVAL PORT)
  • 12
    25-857094 O-RING
    (OVAL PORT)
    O-RING
    (OVAL PORT)
  • 13
    25-857093 O-RING
    (OVAL PORT)
    O-RING
    (OVAL PORT)
  • 14
    10-875206 SCREW, (M6 x 16)
    (OVAL PORT)
    SCREW, (M6 x 16)
    (OVAL PORT)
  • 15
    10-4000333 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 16
    825058A1 PUMP ASSEMBLY, Oil
    (ROUND PORT)
    PUMP ASSEMBLY, Oil
    (ROUND PORT)
  • 17
    25-826152 O-RING
    (ROUND PORT)
    O-RING
    (ROUND PORT)
  • 18
    25-826154 O-RING
    (ROUND PORT)
    O-RING
    (ROUND PORT)
  • 19
    25-826153 O-RING
    (ROUND PORT)
    O-RING
    (ROUND PORT)
  • -
    27-825231A02 GASKET SET, Engine
    GASKET SET, Engine
  • -
    893504T01 CYLINDER HEAD ASSEMBLY
    (ELECTRIC)
    CYLINDER HEAD ASSEMBLY
    (ELECTRIC)
  • -
    893504T02 CYLINDER HEAD ASSEMBLY
    (MANUAL)
    CYLINDER HEAD ASSEMBLY
    (MANUAL)
