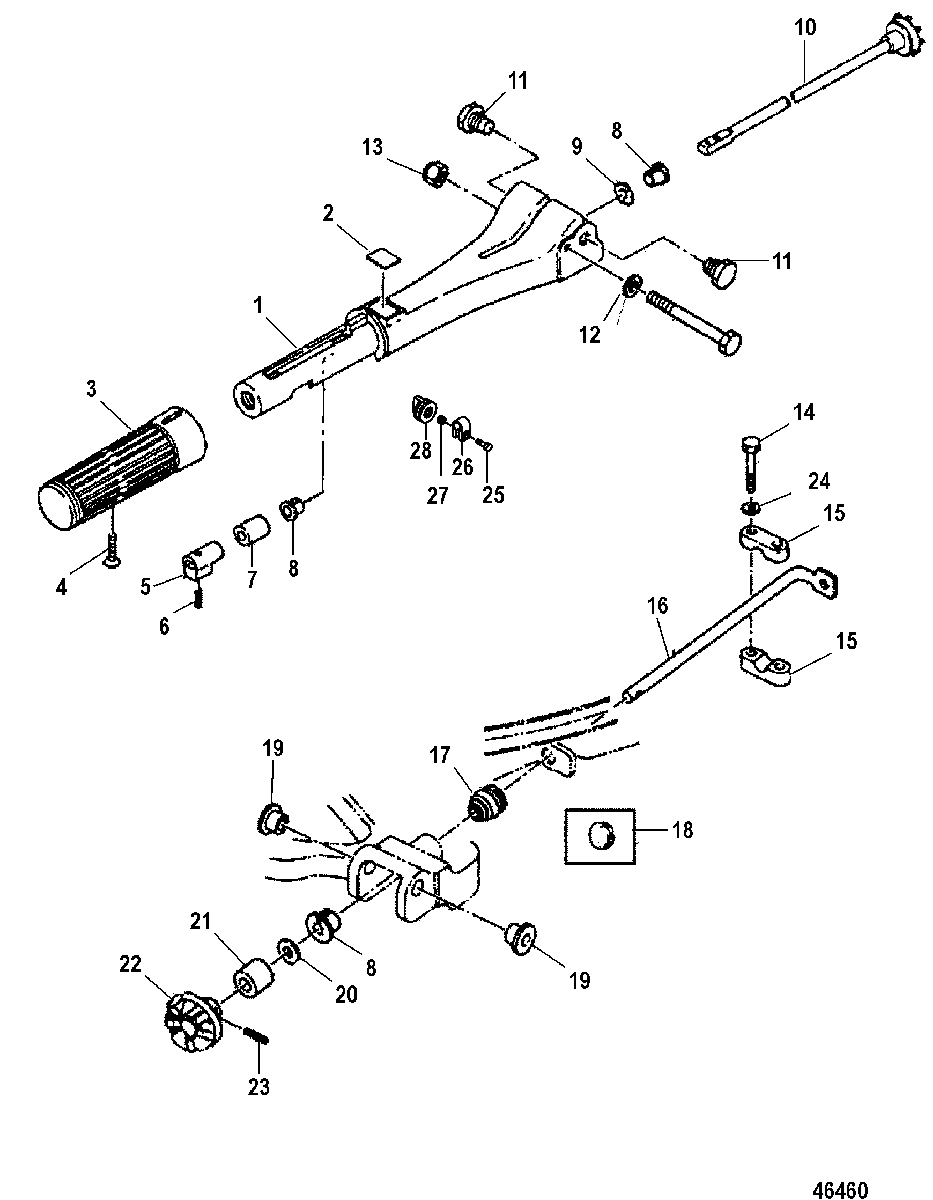

Tiller Handle для Mercury - 30 (2 CYL.)(2-STROKE)(International) 0N055505 & Up

  • №
    Артикул
    Название
  • -
    8M0133194 HANDLE ASSEMBLY
    Design I
    HANDLE ASSEMBLY
    Design I
  • -
    8M0133194 HANDLE ASSEMBLY, With Friction Control, Includes numbers 25/26/27/28
    Design II
    HANDLE ASSEMBLY, With Friction Control, Includes numbers 25/26/27/28
    Design II
  • 1
    8M0130149 HANDLE, Steering
    Design I
    HANDLE, Steering
    Design I
  • 1
    8M0130149 HANDLE, Steering, Use with Friction Control
    Design II
    HANDLE, Steering, Use with Friction Control
    Design II
  • 2
    37-8M0097201 DECAL
    DECAL
  • 3
    160861 GRIP
    GRIP
  • 4
    10-8150461 SCREW
    SCREW
  • 5
    23-8537152 SPACER
    SPACER
  • 6
    18-8150263 COTTER PIN
    COTTER PIN
  • 7
    23-16191 SPACER
    SPACER
  • 8
    23-8M0130166 BUSHING
    BUSHING
  • 9
    13-8537232 WAVE WASHER
    WAVE WASHER
  • 10
    160931 SHAFT, Throttle
    SHAFT, Throttle
  • 11
    10-8M0111108 BOLT
    BOLT
  • 12
    10-8M0050498 BOLT
    BOLT
  • 13
    11-8537227 NUT, Nylon
    NUT, Nylon
  • 14
    10-8M0124428 BOLT
    BOLT
  • 15
    853752 BRACKET
    BRACKET
  • 16
    160932 SHAFT, Throttle
    SHAFT, Throttle
  • 17
    25-16823 GROMMET
    GROMMET
  • 18
    25-16226 GROMMET (Electric)
    GROMMET (Electric)
  • 19
    23-952869 COLLAR
    COLLAR
  • 20
    12-16192 WASHER
    WASHER
  • 21
    23-9528610 COLLAR
    COLLAR
  • 22
    43-853751 GEAR, Pinion
    GEAR, Pinion
  • 23
    17-952186 PIN, Roll
    PIN, Roll
  • 24
    12-16826 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • 25
    10-4000330 BOLT, Component of 8M0055714
    Design II
    BOLT, Component of 8M0055714
    Design II
  • 26
    8M0051382 CLAMP, Friction - Throttle, Component of 8M0055714
    Design II
    CLAMP, Friction - Throttle, Component of 8M0055714
    Design II
  • 27
    24-8M0051384 SPRING, Stainless Steel, Component of 8M0055714
    Design II
    SPRING, Stainless Steel, Component of 8M0055714
    Design II
  • 28
    8M0051383 NUT, Component of 8M0055714
    Design II
    NUT, Component of 8M0055714
    Design II
  • -
    8M0136142 TILLER HANDLE KIT
    Design I
    TILLER HANDLE KIT
    Design I
  • -
    8M0136142 TILLER HANDLE KIT, With Friction Control
    Design II
    TILLER HANDLE KIT, With Friction Control
    Design II
