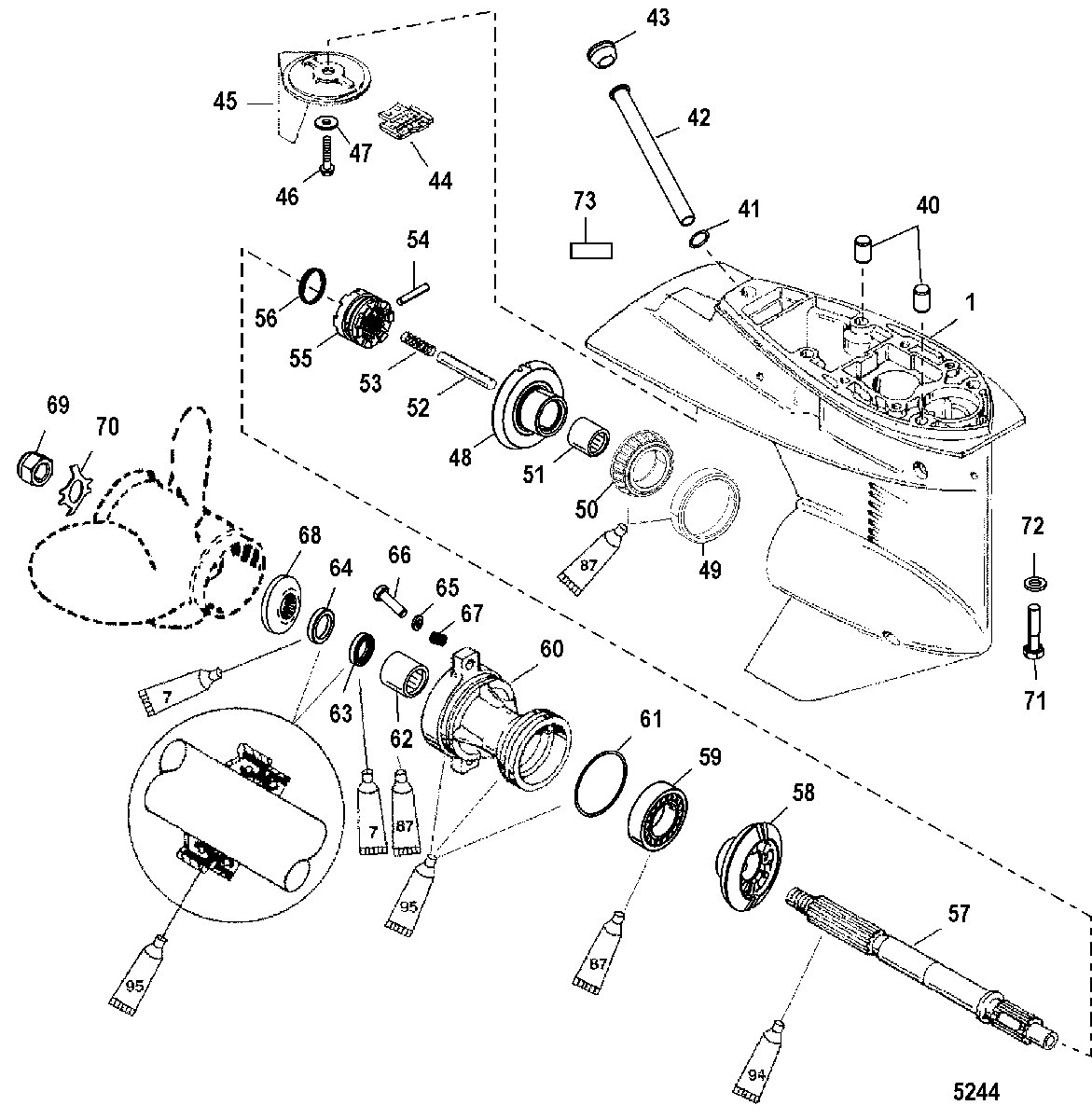

Gear Housing, Propeller Shaft - 2.00:1 Gear Ratio для Mercury - 30 (2 CYL.) 0P325500 & Up

  • №
    Артикул
    Название
  • -
    1682-821306T8 GEAR HOUSING ASSEMBLY (Short)
    (Model Version Length Designation: S = 15 Inch)
    GEAR HOUSING ASSEMBLY (Short)
    (Model Version Length Designation: S = 15 Inch)
  • -
    1682-821306A55 GEAR HOUSING ASSEMBLY (SL-Export Only)
    (Model Version Length Designation: SL = 17.5 Inch)
    GEAR HOUSING ASSEMBLY (SL-Export Only)
    (Model Version Length Designation: SL = 17.5 Inch)
  • -
    1682-821306T6 GEAR HOUSING ASSEMBLY (Long)
    (Model Version Length Designation: L = 20 Inch)
    GEAR HOUSING ASSEMBLY (Long)
    (Model Version Length Designation: L = 20 Inch)
  • -
    1682-821306A10 GEAR HOUSING ASSEMBLY (LL)
    (Model Version Length Designation: LL = 22.5Inch)
    GEAR HOUSING ASSEMBLY (LL)
    (Model Version Length Designation: LL = 22.5Inch)
  • 1
    1682-821306T12 GEAR HOUSING ASSEMBLY, Basic
    (Basic)
    GEAR HOUSING ASSEMBLY, Basic
    (Basic)
  • 40
    17-821327 PIN, Dowel
    PIN, Dowel
  • 41
    27-823942 GASKET
    GASKET
  • 42
    32-8M0026108 TUBE
    TUBE
  • 43
    19-824928001 PLUG, Rubber
    PLUG, Rubber
  • 44
    821829 SCREEN
    SCREEN
  • 45
    822157T2 TRIM TAB
    TRIM TAB
  • 46
    10-82497020 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 47
    12-72397 WASHER
    WASHER
  • 48
    43-821315T1 GEAR ASSEMBLY, Forward - 26 Teeth
    GEAR ASSEMBLY, Forward - 26 Teeth
  • 49
    31-8M0103470 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 50
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 51
    31-41326 BEARING, Roller
    BEARING, Roller
  • 52
    821578 FOLLOWER, Cam
    FOLLOWER, Cam
  • 53
    24-8261991 SPRING
    SPRING
  • 54
    17-8M0020999 PIN
    PIN
  • 55
    52-821314T CLUTCH
    CLUTCH
  • 56
    24-38114 SPRING
    SPRING
  • 57
    44-8M0140441 PROPELLER SHAFT
    PROPELLER SHAFT
  • 58
    43-821312T1 GEAR, Reverse - 26 Teeth
    GEAR, Reverse - 26 Teeth
  • 59
    30-20839T BEARING, Ball
    BEARING, Ball
  • 60
    19291A3 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 61
    25-815460 O-RING
    O-RING
  • 62
    31-21700 BEARING, Needle
    BEARING, Needle
  • 63
    26-69188 SEAL, Oil
    SEAL, Oil
  • 64
    26-69189 SEAL, Oil
    SEAL, Oil
  • 65
    12-855941 WASHER, (.323 x .590 x .112) Stainless Steel
    WASHER, (.323 x .590 x .112) Stainless Steel
  • 66
    10-85594030 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 67
    8227731 INSERT, Threaded
    INSERT, Threaded
  • 68
    73345A1 THRUST HUB
    THRUST HUB
  • 69
    11-69578Q1 PROP NUT KIT
    PROP NUT KIT
  • 70
    14-76281 TAB WASHER
    TAB WASHER
  • 71
    10-4000380 SCREW, (M10 x 45), Short/Long
    SCREW, (M10 x 45), Short/Long
  • 72
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 73
    NSS NOT SOLD SEPARATE, Decal-Gear Ratio
    NOT SOLD SEPARATE, Decal-Gear Ratio
  • -
    27-822420A94 GASKET SET
    GASKET SET
  • -
    823547A2 SEAL KIT
    SEAL KIT
