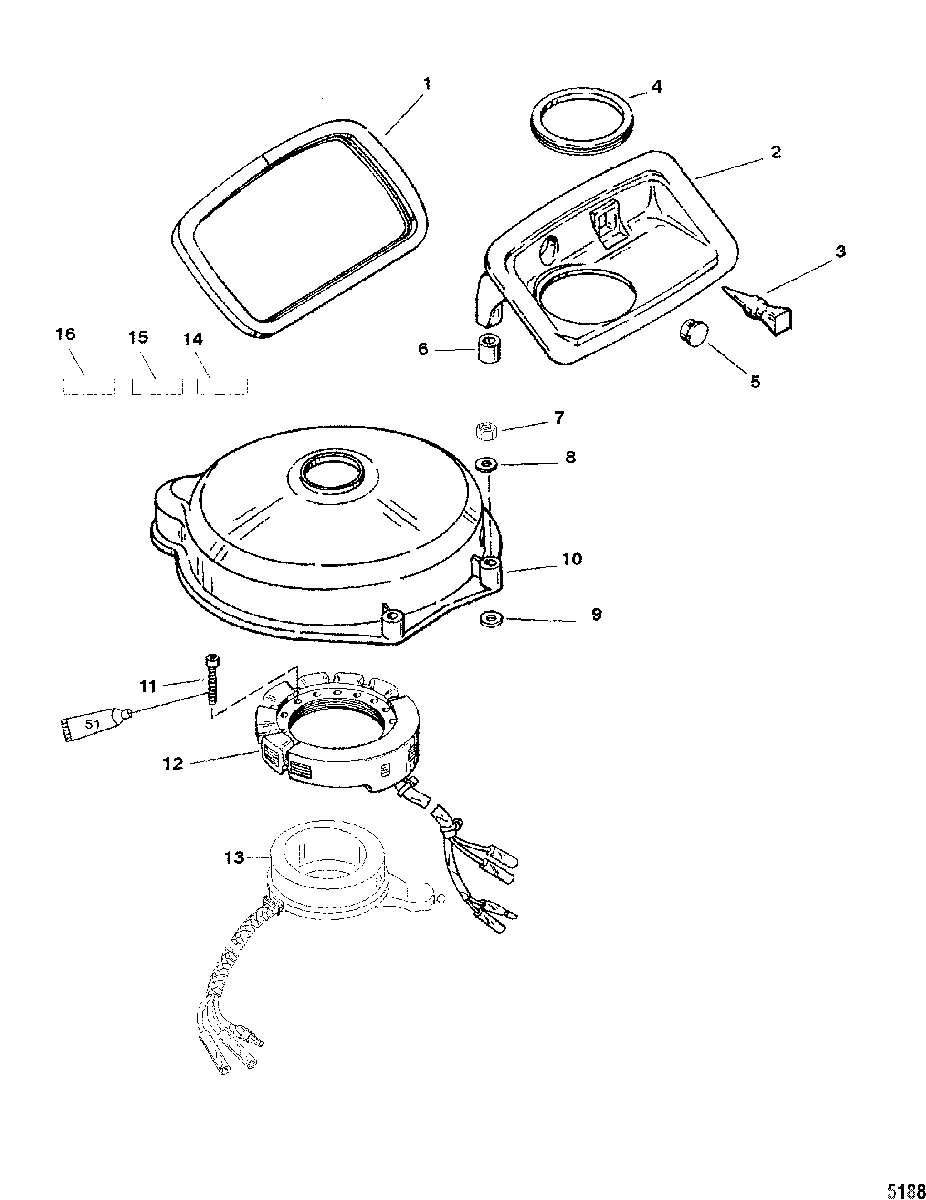

Stator/Trigger(Electric Models) для Mercury - 30 (2 CYL.) 0P017000 THRU 0P325499

  • №
    Артикул
    Название
  • 1
    8M0043416 SEAL
    SEAL
  • 2
    821788A1 REST KIT, Oil Injection
    REST KIT, Oil Injection
  • 3
    19-822513002 PLUG, Starter Handle
    PLUG, Starter Handle
  • 4
    823771001 GROMMET, Oil Tank
    GROMMET, Oil Tank
  • 5
    19-822464 PLUG
    PLUG
  • 6
    23-822392 SPACER, Handle Rest
    SPACER, Handle Rest
  • 7
    11-816872 WING NUT
    WING NUT
  • 8
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 9
    12-49221 WASHER, (.187 x .500 x .062) Neoprene, Neoprene
    WASHER, (.187 x .500 x .062) Neoprene, Neoprene
  • 10
    812777T1 COVER ASSEMBLY
    COVER ASSEMBLY
  • 11
    10-4013930 SCREW, (M5 x 30)
    SCREW, (M5 x 30)
  • 12
    398-832075A21 IGNITION STATOR KIT
    IGNITION STATOR KIT
  • 13
    853960T TRIGGER
    TRIGGER
  • 14
    37-856985A6 DECAL, EPA Label Information
    (1999)
    DECAL, EPA Label Information
    (1999)
  • 14
    37-804664A00 DECAL, EPA Label Information
    (2000)
    DECAL, EPA Label Information
    (2000)
  • 14
    37-804664A01 DECAL, EPA Label Information
    (2001)
    DECAL, EPA Label Information
    (2001)
  • 14
    37-804664A02 DECAL, EPA Label Information
    (2002)
    DECAL, EPA Label Information
    (2002)
  • 14
    37-804664A03 DECAL, EPA Label Information
    (2003)
    DECAL, EPA Label Information
    (2003)
  • 14
    37-804664A04 DECAL, EPA Label Information
    (2004)
    DECAL, EPA Label Information
    (2004)
  • 15
    NSS NOT SOLD SEPARATE, Decal-Caution in Gear Idle
    NOT SOLD SEPARATE, Decal-Caution in Gear Idle
  • 16
    NSS NOT SOLD SEPARATE, Decal-Timing
    NOT SOLD SEPARATE, Decal-Timing
