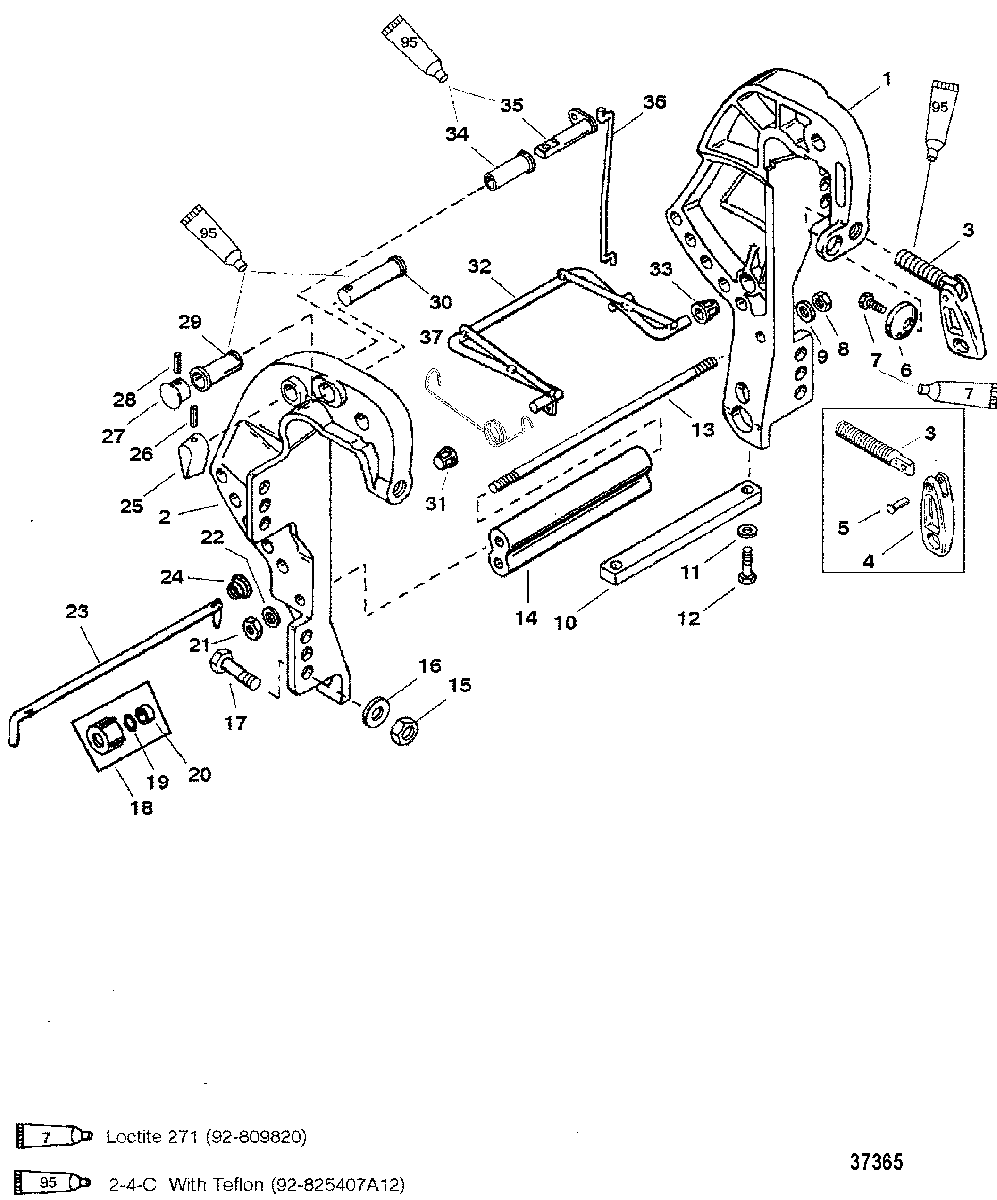

CLAMP BRACKET для Mercury - 30 (2 CYL.) 0G055314 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    3411-821773A3 CLAMP BRACKET
    (BLACK) PORT SHORT 1 LOWER MOUNTING HOLE
    CLAMP BRACKET
    (BLACK) PORT SHORT 1 LOWER MOUNTING HOLE
  • 1
    3411-821773A4 CLAMP BRACKET
    (GRAY) PORT SHORT 1 LOWER MOUNTING HOLE
    CLAMP BRACKET
    (GRAY) PORT SHORT 1 LOWER MOUNTING HOLE
  • 1
    3411-821773T1 CLAMP BRACKET
    (BLACK) PORT LONG 3 LOWER MOUNTING HOLES
    CLAMP BRACKET
    (BLACK) PORT LONG 3 LOWER MOUNTING HOLES
  • 1
    3411-821773A2 CLAMP BRACKET
    (GRAY) PORT LONG 3 LOWER MOUNTING HOLES
    CLAMP BRACKET
    (GRAY) PORT LONG 3 LOWER MOUNTING HOLES
  • 2
    3412-821774T6 CLAMP BRACKET
    (BLACK) STBD. SHORT 1 LOWER MOUNTING HOLE
    CLAMP BRACKET
    (BLACK) STBD. SHORT 1 LOWER MOUNTING HOLE
  • 2
    3412-821774T7 CLAMP BRACKET
    (GRAY) STBD. SHORT 1 LOWER MOUNTING HOLE
    CLAMP BRACKET
    (GRAY) STBD. SHORT 1 LOWER MOUNTING HOLE
  • 2
    3412-821774T8 CLAMP BRACKET
    (BLACK) STBD. LONG 3 LOWER MOUNTING HOLES
    CLAMP BRACKET
    (BLACK) STBD. LONG 3 LOWER MOUNTING HOLES
  • 2
    3412-821774T8 CLAMP BRACKET
    (GRAY) STBD. LONG 3 LOWER MOUNTING HOLES
    CLAMP BRACKET
    (GRAY) STBD. LONG 3 LOWER MOUNTING HOLES
  • 3
    10-818883A1 THUMB SCREW ASSEMBLY
    MANUAL
    THUMB SCREW ASSEMBLY
    MANUAL
  • 4
    NSS NOT SOLD SEPARATE, HANDLE
    MANUAL
    NOT SOLD SEPARATE, HANDLE
    MANUAL
  • 5
    NSS NOT SOLD SEPARATE, RIVET
    MANUAL
    NOT SOLD SEPARATE, RIVET
    MANUAL
  • 6
    12-818884 WASHER
    MANUAL
    WASHER
    MANUAL
  • 7
    10-768042 SHOULDER SCREW, Hex
    MANUAL
    SHOULDER SCREW, Hex
    MANUAL
  • 8
    11-40140 NUT, (M10)
    NUT, (M10)
  • 9
    12-4002319 WASHER
    WASHER
  • 10
    97-8252711 ANODE
    ANODE
  • 11
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 12
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 13
    16-8M0034459 STUD, (M10 x 277)
    STUD, (M10 x 277)
  • 14
    23-824952 SPACER
    SPACER
  • 15
    11-91962 NUT, (.500-20)
    (LONG)
    NUT, (.500-20)
    (LONG)
  • 15
    11-91962 NUT, (.500-20)
    (SHORT) (TOP)
    NUT, (.500-20)
    (SHORT) (TOP)
  • 15
    11-4013710 NUT, (M10)
    (SHORT) (BOTTOM)
    NUT, (M10)
    (SHORT) (BOTTOM)
  • 16
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    (LONG)
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    (LONG)
  • 16
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    (SHORT) (TOP)
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    (SHORT) (TOP)
  • 16
    12-4002319 WASHER
    (SHORT) (BOTTOM)
    WASHER
    (SHORT) (BOTTOM)
  • 17
    10-814259 SCREW, (.500-20 x 4.00)
    (LONG)
    SCREW, (.500-20 x 4.00)
    (LONG)
  • 17
    10-814259 SCREW, (.500-20 x 4.00)
    (SHORT) (TOP)
    SCREW, (.500-20 x 4.00)
    (SHORT) (TOP)
  • 17
    10-826110 SCREW
    (SHORT) (BOTTOM)
    SCREW
    (SHORT) (BOTTOM)
  • 18
    19624A1 SEAL KIT
    SEAL KIT
  • 19
    25-29619 O-RING, (.583 x .103)
    O-RING, (.583 x .103)
  • 20
    23-78861 SPACER
    SPACER
  • 21
    11-40140 NUT, (M10)
    NUT, (M10)
  • 22
    12-4002319 WASHER
    WASHER
  • 23
    17-8M0026103 PIN ASSEMBLY, Tilt Lock
    PIN ASSEMBLY, Tilt Lock
  • 24
    24-821461 SPRING
    SPRING
  • 25
    822409 LEVER
    LEVER
  • 26
    17-25319 PIN, (.125 x 0.75 Inches)
    PIN, (.125 x 0.75 Inches)
  • 27
    822401 CAP
    CAP
  • 28
    17-25319 PIN, (.125 x 0.75 Inches)
    PIN, (.125 x 0.75 Inches)
  • 29
    23-823589 BUSHING
    BUSHING
  • 30
    17-8224001 PIN
    PIN
  • 31
    23-824858 BUSHING (PLASTIC)
    BUSHING (PLASTIC)
  • 32
    878580 ROD, Shallow Water Drive
    ROD, Shallow Water Drive
  • 33
    23-824858 BUSHING (PLASTIC)
    BUSHING (PLASTIC)
  • 34
    23-823812 BUSHING
    BUSHING
  • 35
    822411 ARM
    ARM
  • 36
    878563 LINK ROD
    LINK ROD
  • 37
    24-832085A1 SPRING
    SPRING
