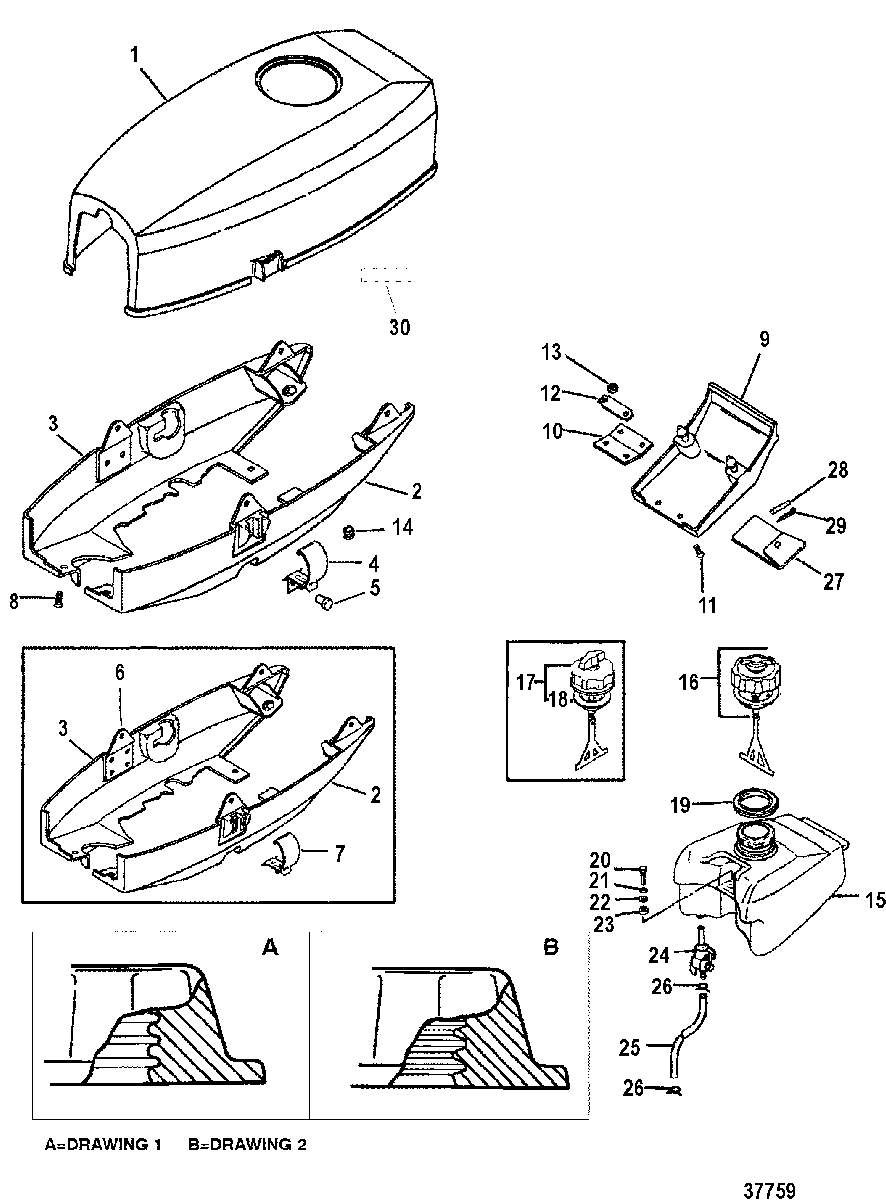

COWL AND FUEL TANK для Mercury - 3 0A855097 THRU 0G710612
-
№АртикулНазвание
-
18M0045102 TOP COWL ASSEMBLY
BLACKTOP COWL ASSEMBLY
BLACK -
18M0046050 TOP COWL ASSEMBLY
MARINER SILVERTOP COWL ASSEMBLY
MARINER SILVER -
12189-815098A2 TOP COWL ASSEMBLY
FORCE GRAYTOP COWL ASSEMBLY
FORCE GRAY -
22189-824926A1 BOTTOM COWL
(BLACK) PORTBOTTOM COWL
(BLACK) PORT -
22189-824926A2 BOTTOM COWL
(MARINER GRAY) PORTBOTTOM COWL
(MARINER GRAY) PORT -
22189-824926A3 BOTTOM COWL
(FORCE GRAY) PORTBOTTOM COWL
(FORCE GRAY) PORT -
3100-8M0145391 BOTTOM COWL
(BLACK) STBD.BOTTOM COWL
(BLACK) STBD. -
32189-824927A2 BOTTOM COWL
(MARINER GRAY) STBD.BOTTOM COWL
(MARINER GRAY) STBD. -
32189-824927A3 BOTTOM COWL
(STBD.) (FORCE GRAY) STBD.BOTTOM COWL
(STBD.) (FORCE GRAY) STBD. -
48M0114258 LATCH KITLATCH KIT
-
517-825829 RIVETRIVET
-
6817015A1 LATCH KIT
(SEE NOTE 1)LATCH KIT
(SEE NOTE 1) -
7817015 LATCH
(SEE NOTE 1)LATCH
(SEE NOTE 1) -
810-16827 SCREWSCREW
-
98M0148363 COVER
(BLACK)COVER
(BLACK) -
9815104 COVER
(MARINER GRAY)COVER
(MARINER GRAY) -
98151041 COVER
(FORCE GRAY)COVER
(FORCE GRAY) -
10815105 HINGE, RearHINGE, Rear
-
1110-8M0038337 BOLTBOLT
-
1295280 PLATEPLATE
-
1311-95385 NUTNUT
-
1425-95387 GROMMETGROMMET
-
151258-824963A03 TANK ASSEMBLY, FuelTANK ASSEMBLY, Fuel
-
1636-8M0060029 CAPCAP
-
17NLA No Longer Available, CAP
(REFER TO DRAWING # 2)(REFER TO PARTS BULLETIN 94-6)No Longer Available, CAP
(REFER TO DRAWING # 2)(REFER TO PARTS BULLETIN 94-6) -
1736-812952 CAP
(REFER TO DRAWING #1)CAP
(REFER TO DRAWING #1) -
1827-8M0065762 GASKETGASKET
-
1925-815109 SEALSEAL
-
2010-803858 SCREWSCREW
-
2113-16818 LOCKWASHERLOCKWASHER
-
2212-95392 WASHERWASHER
-
2323-95390 SPACERSPACER
-
2422-95393 VALVEVALVE
-
2532-8M0057113 LINE, Fuel (250 mm)LINE, Fuel (250 mm)
-
2654-95395 CLIP, Stainless SteelCLIP, Stainless Steel
-
2791-95399 TOOL KITTOOL KIT
-
2817-815111Q02 PIN, BrassPIN, Brass
-
2918-95295 COTTER PINCOTTER PIN
-
3037-855577A1 DECAL, EPA Label Information (INSIDE TOP COVER)
(1998)DECAL, EPA Label Information (INSIDE TOP COVER)
(1998)
