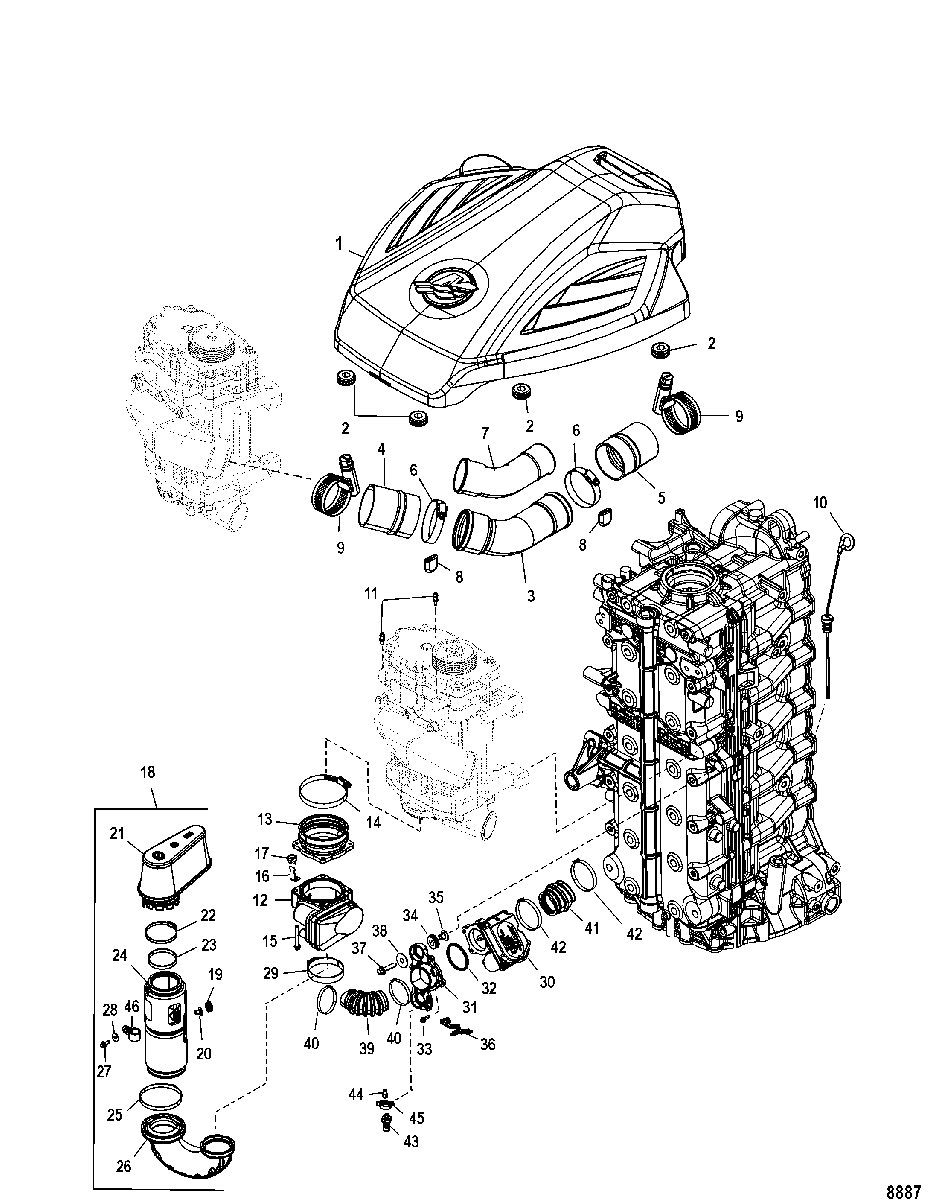

Induction Components для Mercury - 275 VERADO (4-STROKE)(6 CYL.) 1B381712 THRU 1B517433
-
№АртикулНазвание
-
1887936T04 COVER, FlywheelCOVER, Flywheel
-
225-834985 GROMMETGROMMET
-
38M0035481 TUBE OUTLET ASSEMBLYTUBE OUTLET ASSEMBLY
-
48M0035481 HOSE, (65 Inside Diameter)HOSE, (65 Inside Diameter)
-
58M0035481 HOSE, (60 Inside Diameter)HOSE, (60 Inside Diameter)
-
654-893342 CLAMPCLAMP
-
78M0035481 HOSE SLEEVEHOSE SLEEVE
-
819-8M0074364 COVER, Hose Clamp EndCOVER, Hose Clamp End
-
954-893342 CLAMPCLAMP
-
10898022 DIPSTICK, OilDIPSTICK, Oil
-
1117-888517 PINPIN
-
128M0113515 THROTTLE CONTROL ASSEMBLY, ElectronicTHROTTLE CONTROL ASSEMBLY, Electronic
-
138M0113513 ISOLATORISOLATOR
-
1454-815504256 CLAMP, Worm GearCLAMP, Worm Gear
-
1510-88552550 SCREW, (M6 x 50 MM) Stainless SteelSCREW, (M6 x 50 MM) Stainless Steel
-
16884353 BRACKETBRACKET
-
1754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
18892383T06 INTAKE ASSEMBLY, AirINTAKE ASSEMBLY, Air
-
1925-8349851 GROMMETGROMMET
-
2023-856954 BUSHINGBUSHING
-
2135-893318T02 FILTER, AirFILTER, Air
-
2254-895842 CLAMPCLAMP
-
2327-893317 GASKETGASKET
-
248M0007183 RESONATORRESONATOR
-
2554-888988027 CLAMPCLAMP
-
26893314002 DUCT, InletDUCT, Inlet
-
2710-8M0103807 SCREW, (M6 x 25 MM) Stainless SteelSCREW, (M6 x 25 MM) Stainless Steel
-
2812-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
2954-888988016 CLAMP, (96.5 mm)CLAMP, (96.5 mm)
-
30884408A08 VALVE KIT, Control - Electric BoostVALVE KIT, Control - Electric Boost
-
31887939007 PLATE, Boost Valve MountingPLATE, Boost Valve Mounting
-
3225-892079 O-RINGO-RING
-
3310-8M0103806 SCREW, (M6 x 20 MM) Stainless SteelSCREW, (M6 x 20 MM) Stainless Steel
-
3425-833155 GROMMETGROMMET
-
3523-8502341 BUSHINGBUSHING
-
3654-859376 CLIPCLIP
-
3710-8M0103814 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
3812-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
3932-887937006 HOSE, FrontHOSE, Front
-
4054-888988002 CLAMP, (57.5 mm), Front Electronic Boost ControlCLAMP, (57.5 mm), Front Electronic Boost Control
-
4132-887938003 TUBE, RearTUBE, Rear
-
4254-888988004 CLAMP, (62.0 mm), Rear Electronic Boost ControlCLAMP, (62.0 mm), Rear Electronic Boost Control
-
43881879T25 SENSOR ASSEMBLY, PitotSENSOR ASSEMBLY, Pitot
-
4422-892403 FITTINGFITTING
-
4554-883066 CLIP, (.865)CLIP, (.865)
-
4654-8589781 CLIP, Fuel Hose (Use where Applicable)CLIP, Fuel Hose (Use where Applicable)
