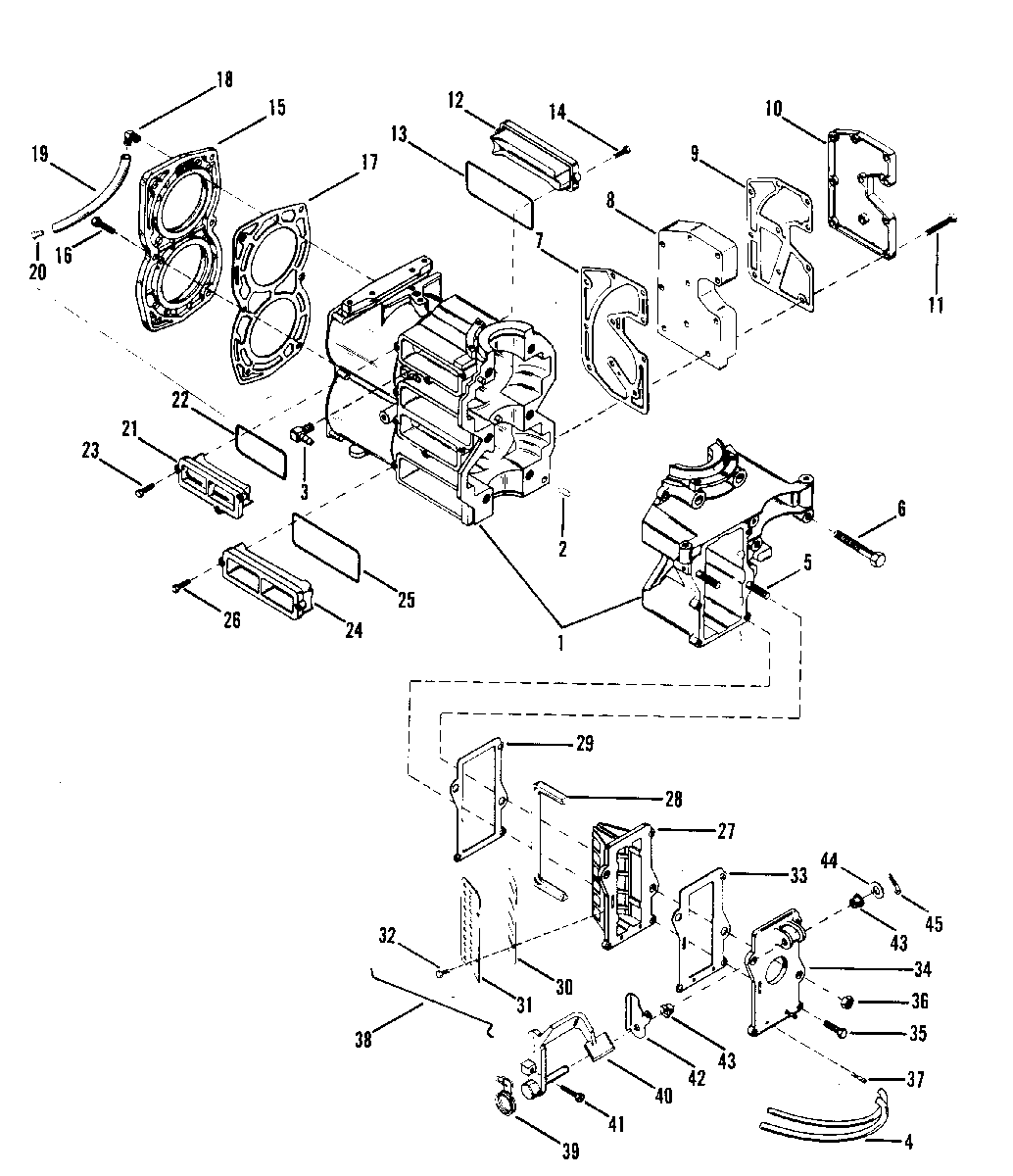

CYLINDER BLOCK AND COVER для Mercury - 25 9378116 THRU 9415100
-
№АртикулНазвание
-
1872-9533T38 CYL. BLOCK/CRANKCASE ASSEMBLYCYL. BLOCK/CRANKCASE ASSEMBLY
-
217-85171 DOWEL PIN, CYLINDER BLOCKDOWEL PIN, CYLINDER BLOCK
-
322-15133 ELBOW, BLEED HOSE (45 DEGREES)ELBOW, BLEED HOSE (45 DEGREES)
-
432-892024122 HOSE, BLEED (12-1/4")HOSE, BLEED (12-1/4")
-
516-429173 STUD, CARBURETORSTUD, CARBURETOR
-
610-40001209 SCREW, Crankcase to Cylinder Block (60MM)SCREW, Crankcase to Cylinder Block (60MM)
-
727-892158 GASKET, EXHAUST MANIFOLDGASKET, EXHAUST MANIFOLD
-
892329 EXHAUST MANIFOLDEXHAUST MANIFOLD
-
927-414991 GASKET, EXHAUST COVERGASKET, EXHAUST COVER
-
1092330T COVER, EXHAUSTCOVER, EXHAUST
-
1110-4000333 SCREW, Exhaust Cover to Cylinder Block (40MM)SCREW, Exhaust Cover to Cylinder Block (40MM)
-
12144071 COVER, TRANSFER PORTCOVER, TRANSFER PORT
-
1325-822370 "O" RING, TRANSFER PORT COVER"O" RING, TRANSFER PORT COVER
-
1410-40057107 SCREW, COVER TO CYLINDER BLOCK (16MM)SCREW, COVER TO CYLINDER BLOCK (16MM)
-
151028-8283A1 COVER ASSEMBLY, CYLINDER BLOCKCOVER ASSEMBLY, CYLINDER BLOCK
-
1610-4000331 SCREW, COVER ATTACHING (30MM)SCREW, COVER ATTACHING (30MM)
-
1727-86389 GASKET, CYLINDER BLOCK COVERGASKET, CYLINDER BLOCK COVER
-
1822-996642 ELBOW, TELL TALE HOSEELBOW, TELL TALE HOSE
-
1932-8M0108355 HOSE, TELL TALE (8")HOSE, TELL TALE (8")
-
2022-94848 FITTING, TELL TALE HOSE - BOTTOM COWLFITTING, TELL TALE HOSE - BOTTOM COWL
-
2114406 COVER, TRANSFER PORTCOVER, TRANSFER PORT
-
2225-86391 "O" RING, TRANSFER PORT COVER"O" RING, TRANSFER PORT COVER
-
2310-40057107 SCREW, COVER TO CYLINDER BLOCK (16MM)SCREW, COVER TO CYLINDER BLOCK (16MM)
-
2492350 COVER, TRANSFER PORTCOVER, TRANSFER PORT
-
2525-33465 "O" RING, TRANSFER PORT COVER"O" RING, TRANSFER PORT COVER
-
2610-40057107 SCREW, COVER TO CYLINDER BLOCK (16MM)SCREW, COVER TO CYLINDER BLOCK (16MM)
-
2714112T REED BLOCKREED BLOCK
-
2885977002 SEAL, REED BLOCK - RUBBERSEAL, REED BLOCK - RUBBER
-
2927-414172 GASKET, REED BLOCKGASKET, REED BLOCK
-
3034-816806 REEDREED
-
3134-897931 REED STOPREED STOP
-
3210-4005785 SCREW, REED ATTACHING (10MM)SCREW, REED ATTACHING (10MM)
-
3327-414181 GASKET, ADAPTOR PLATEGASKET, ADAPTOR PLATE
-
3490785 PLATE, ADAPTOR - CARBURETORPLATE, ADAPTOR - CARBURETOR
-
3510-40019108 SCREW, PLATE TO REED BLOCK (20MM)SCREW, PLATE TO REED BLOCK (20MM)
-
3611-400213 NUT, CARBURETOR STUDNUT, CARBURETOR STUD
-
3722-56759 FITTING, ADAPTOR PLATE - BLEED HOSEFITTING, ADAPTOR PLATE - BLEED HOSE
-
3893879 IDLE WIREIDLE WIRE
-
3924-97176 SPRING, CHOKESPRING, CHOKE
-
4042545 LEVER, CHOKE/FAST IDLELEVER, CHOKE/FAST IDLE
-
4110-91073 SCREW, ADJUSTING - LEVERSCREW, ADJUSTING - LEVER
-
4243220A1 LEVER ASSEMBLY, CHOKELEVER ASSEMBLY, CHOKE
-
4323-26856 BUSHING, CHOKE/FAST IDLE LEVERBUSHING, CHOKE/FAST IDLE LEVER
-
4412-28463 WASHER, CHOKE/FAST IDLE LEVERWASHER, CHOKE/FAST IDLE LEVER
-
4518-93500 COTTER PIN, CHOKE/FAST IDLE LEVERCOTTER PIN, CHOKE/FAST IDLE LEVER
-
--27-41499A88 GASKET SET
CONTENTS INDICATED BY FOOTNOTE 15.GASKET SET
CONTENTS INDICATED BY FOOTNOTE 15.
