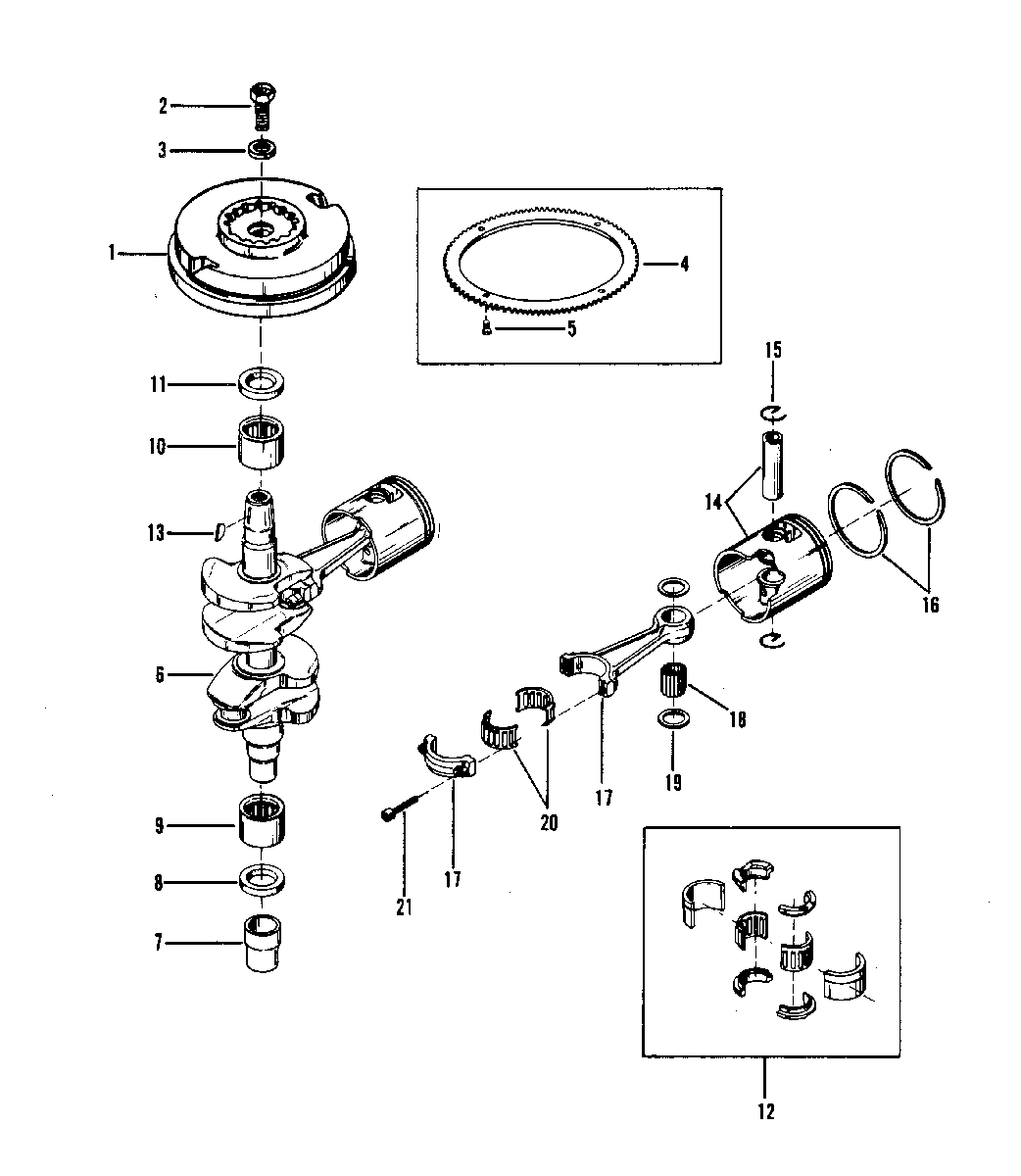

CRANKSHAFT, PISTONS AND FLYWHEEL для Mercury - 25 6416713 THRU 6443972

  • №
    Артикул
    Название
  • 1
    258-859232T15 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 2
    10-97359A1 SCREW, FLYWHEEL TO CRANKSHAFT
    SCREW, FLYWHEEL TO CRANKSHAFT
  • 3
    12-86496 WASHER, FLYWHEEL SCREW
    WASHER, FLYWHEEL SCREW
  • 4
    43-99301 RING GEAR, FLYWHEEL - ELECTRIC
    RING GEAR, FLYWHEEL - ELECTRIC
  • 5
    10-88190313 SCREW, RING GEAR TO FLYWHEEL (ELECTRIC)
    SCREW, RING GEAR TO FLYWHEEL (ELECTRIC)
  • 6
    464-8978T2 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 7
    822445A1 SEAL, CRANKSHAFT
    SEAL, CRANKSHAFT
  • 8
    26-85107 OIL SEAL, CRANKSHAFT (LOWER)
    OIL SEAL, CRANKSHAFT (LOWER)
  • 9
    31-85113T ROLLER BEARING, CRANKSHAFT (LOWER)
    ROLLER BEARING, CRANKSHAFT (LOWER)
  • 10
    31-85114T ROLLER BEARING, CRANKSHAFT (UPPER)
    ROLLER BEARING, CRANKSHAFT (UPPER)
  • 11
    26-859741 OIL SEAL, CRANKSHAFT (UPPER)
    OIL SEAL, CRANKSHAFT (UPPER)
  • 12
    8M0113968 BEARING ASSEMBLY, CENTER MAIN
    BEARING ASSEMBLY, CENTER MAIN
  • 13
    28-20094 KEY, FLYWHEEL DRIVE
    KEY, FLYWHEEL DRIVE
  • 14
    872-9533T38 PISTON AND PIN ASSEMBLY
    PISTON AND PIN ASSEMBLY
  • 15
    40-828119 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
  • 16
    39-8M0096518 PISTON RING ASSEMBLY
    PISTON RING ASSEMBLY
  • 17
    630-8835A4 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 18
    29-98295 NEEDLE BEARING, PISTON END
    NEEDLE BEARING, PISTON END
  • 19
    12-8M0012294 BEARING, LOCATING - NEEDLE BEARING
    BEARING, LOCATING - NEEDLE BEARING
  • 20
    31-879877A1 ROOLER BEARING ASSEMBLY
    ROOLER BEARING ASSEMBLY
  • 21
    10-4008225 SCREW, CONNECTING ROD (25MM)
    SCREW, CONNECTING ROD (25MM)
  • --
    27-41499A88 GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 15.
    GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 15.
  • --
    879732T89 POWERHEAD ASSEMBLY, COMPLETE
    INCLUDES CYLINDER BLOCK AND CRANKCASE, PISTONS, CONNECTING ROD AND BEARINGS.
    POWERHEAD ASSEMBLY, COMPLETE
    INCLUDES CYLINDER BLOCK AND CRANKCASE, PISTONS, CONNECTING ROD AND BEARINGS.
