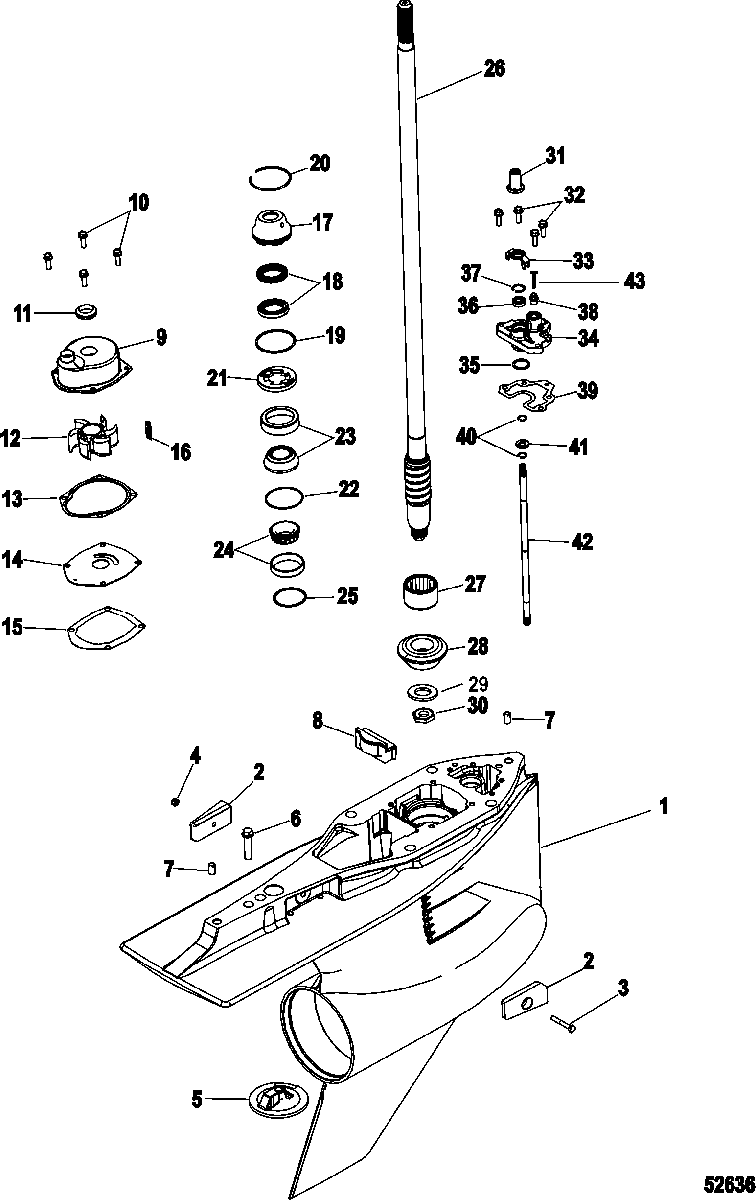

Gear Housing,, Driveshaft, 5.44 Torpedo, SN 1B980360 &up для Mercury - 250 VERADO (4-STROKE)(6 CYL.) 1B517434 THRU 2B144122
-
№АртикулНазвание
-
-1600-8M0117252 GEAR HOUSING ASSEMBLY, Complete, Black (Standard Long)(1.85:1)
300GEAR HOUSING ASSEMBLY, Complete, Black (Standard Long)(1.85:1)
300 -
-1600-8M0117239 GEAR HOUSING ASSEMBLY, Complete, Silver (Standard Long)(1.85:1)
300GEAR HOUSING ASSEMBLY, Complete, Silver (Standard Long)(1.85:1)
300 -
-1600-8M0117253 GEAR HOUSING ASSEMBLY, Complete, Black (Standard X-Long)(1.85:1)
200/225/250/275/300GEAR HOUSING ASSEMBLY, Complete, Black (Standard X-Long)(1.85:1)
200/225/250/275/300 -
-1600-8M0117241 GEAR HOUSING ASSEMBLY, Complete, Silver (Standard X-Long)(1.85:1)
300GEAR HOUSING ASSEMBLY, Complete, Silver (Standard X-Long)(1.85:1)
300 -
-1600-8M0117255 GEAR HOUSING ASSEMBLY, Complete, Black (Standard XX-Long)(1.85:1)
200/225/250/275/300GEAR HOUSING ASSEMBLY, Complete, Black (Standard XX-Long)(1.85:1)
200/225/250/275/300 -
-1600-8M0117243 GEAR HOUSING ASSEMBLY, Complete, Silver (Standard XX-Long)(1.85:1)
300GEAR HOUSING ASSEMBLY, Complete, Silver (Standard XX-Long)(1.85:1)
300 -
-1600-8M0117257 GEAR HOUSING ASSEMBLY, Complete, Black (Counter Rotation-Long)(1.85:1)
300GEAR HOUSING ASSEMBLY, Complete, Black (Counter Rotation-Long)(1.85:1)
300 -
-1600-8M0117240 GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation-Long)(1.85:1)
300GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation-Long)(1.85:1)
300 -
-1600-8M0117254 GEAR HOUSING ASSEMBLY, Complete, Black (Counter Rotation X-Long)(1.85:1)
200/225/250/275/300GEAR HOUSING ASSEMBLY, Complete, Black (Counter Rotation X-Long)(1.85:1)
200/225/250/275/300 -
-1600-8M0117242 GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation X-Long)(1.85:1)
300GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation X-Long)(1.85:1)
300 -
-1600-8M0117256 GEAR HOUSING ASSEMBLY, Complete, Black (Counter Rotation XX-Long)(1.85:1)
200/225/250/275/300GEAR HOUSING ASSEMBLY, Complete, Black (Counter Rotation XX-Long)(1.85:1)
200/225/250/275/300 -
-1600-8M0117244 GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation XX-Long)(1.85:1)
300GEAR HOUSING ASSEMBLY, Complete, Silver (Counter Rotation XX-Long)(1.85:1)
300 -
-1600-8M0078252 GEAR HOUSING ASSEMBLY, Complete (Standard Long)(1.75:1)
300GEAR HOUSING ASSEMBLY, Complete (Standard Long)(1.75:1)
300 -
-1600-8M0117246 GEAR HOUSING ASSEMBLY, Complete (Standard X-Long)(1.75:1)
300GEAR HOUSING ASSEMBLY, Complete (Standard X-Long)(1.75:1)
300 -
-1600-8M0117247 GEAR HOUSING ASSEMBLY, Complete (Standard XX-Long)(1.75:1)
300GEAR HOUSING ASSEMBLY, Complete (Standard XX-Long)(1.75:1)
300 -
-1600-8M0078257 GEAR HOUSING ASSEMBLY, Complete (Counter Rotation-Long)(1.75:1)
300GEAR HOUSING ASSEMBLY, Complete (Counter Rotation-Long)(1.75:1)
300 -
-1600-8M0117249 GEAR HOUSING ASSEMBLY, Complete (Counter Rotation X-Long)(1.75:1)
300GEAR HOUSING ASSEMBLY, Complete (Counter Rotation X-Long)(1.75:1)
300 -
-1600-8M0117250 GEAR HOUSING ASSEMBLY, Complete (Counter Rotation XX-Long)(1.75:1)
300GEAR HOUSING ASSEMBLY, Complete (Counter Rotation XX-Long)(1.75:1)
300 -
11600-8M0117258 GEAR HOUSING ASSEMBLY, Basic, BlackGEAR HOUSING ASSEMBLY, Basic, Black
-
11600-8M0117251 GEAR HOUSING ASSEMBLY, Basic, SilverGEAR HOUSING ASSEMBLY, Basic, Silver
-
297-826134Q ANODEANODE
-
310-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
411-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
597-76214Q5 ANODE KITANODE KIT
-
610-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
717-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
88M0010459 FILLER BLOCKFILLER BLOCK
-
9817275A1 HOUSING KIT, Water PumpHOUSING KIT, Water Pump
-
1010-1993720 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
-47-8M0100526 IMPELLER REPAIR KITIMPELLER REPAIR KIT
-
1126-8M2014338 SEAL, FaceSEAL, Face
-
1247-43026Q02 IMPELLERIMPELLER
-
1327-8172771 GASKETGASKET
-
148172761 FACEPLATEFACEPLATE
-
1527-8M0112903 GASKETGASKET
-
1628-8M0032833 KEYKEY
-
178M0046297 OIL SEAL ASSEMBLYOIL SEAL ASSEMBLY
-
18NSS NOT SOLD SEPARATE, SEALNOT SOLD SEPARATE, SEAL
-
1925-896523 O-RING, (2.175 x .103)O-RING, (2.175 x .103)
-
2053-880719 RING, RetainingRING, Retaining
-
218245191 RETAINERRETAINER
-
2215-8M0063267 SHIM SETSHIM SET
-
2331-36387A1 BEARING ASSEMBLY, Roller/CupBEARING ASSEMBLY, Roller/Cup
-
2431-48939A2 BEARING, Tapered RollerBEARING, Tapered Roller
-
2515-8M0063268 SHIM ASSEMBLYSHIM ASSEMBLY
-
2645-8M0103301 DRIVESHAFTDRIVESHAFT
-
2648-8M0141337 DRIVESHAFTDRIVESHAFT
-
2645-8M0141338 SHAFT, Drive, LongSHAFT, Drive, Long
-
2731-8M0045676 BEARING, RollerBEARING, Roller
-
2843-8M0078259 GEAR SET, 13/24(1.85:1), Forward and Pinion
Standard RotationGEAR SET, 13/24(1.85:1), Forward and Pinion
Standard Rotation -
2843-8M0078258 GEAR SET, 12/21(1.75:1), Forward and Pinion
Standard RotationGEAR SET, 12/21(1.75:1), Forward and Pinion
Standard Rotation -
2843-8M0053119 GEAR SET, 13/24 (1.85:1), Forward and Pinion
Counter RotationGEAR SET, 13/24 (1.85:1), Forward and Pinion
Counter Rotation -
2843-8M0053120 GEAR SET, 12/21 (1.75:1), Forward and Pinion
Counter RotationGEAR SET, 12/21 (1.75:1), Forward and Pinion
Counter Rotation -
2912-8M0062703 WASHER, Pinon nutWASHER, Pinon nut
-
3011-8M0046636 NUT, PinionNUT, Pinion
-
3143585 COUPLINGCOUPLING
-
3210-1993720 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
338M0050809 GROMMET ASSEMBLYGROMMET ASSEMBLY
-
348M0047129 COVER ASSEMBLYCOVER ASSEMBLY
-
3525-896522 O-RING, (799 x .103)O-RING, (799 x .103)
-
3626-8164641 SEAL, OilSEAL, Oil
-
3753-8M0046563 RETAINING RINGRETAINING RING
-
3822-881866 FITTINGFITTING
-
3927-880729 GASKETGASKET
-
4053-29641 E RINGE RING
-
418M0050602 MAGNETMAGNET
-
428M0046104 SHIFT SHAFTSHIFT SHAFT
-
4322-859732 PLUG
1.75:1 RatioPLUG
1.75:1 Ratio -
-8M0065064 SEAL KIT, GearcaseSEAL KIT, Gearcase
-
-8M0078858 WATER PUMP REPAIR KIT, CompleteWATER PUMP REPAIR KIT, Complete
-
-25-8M0065072 WATER PUMP REPAIR KIT, UpperWATER PUMP REPAIR KIT, Upper
