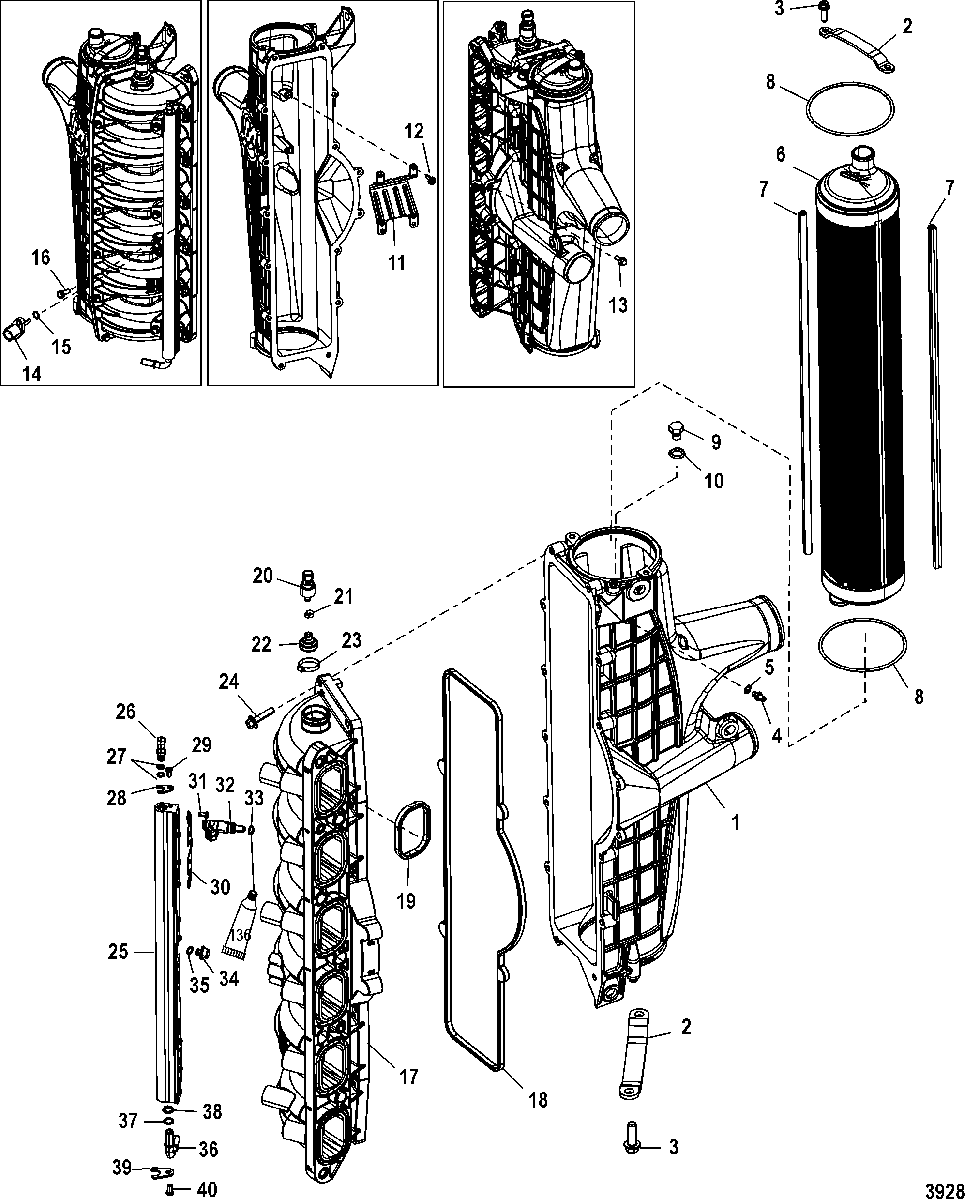

Charge Cooler/Intake Manfifold для Mercury - 250 VERADO (4-STROKE)(6 CYL.) 0T980000 THRU 1B226999

  • №
    Артикул
    Название
  • 0
    8M0131233 IAFM, Intergrated Air/Fuel Module
    SN# 1B056568 & Below
    IAFM, Intergrated Air/Fuel Module
    SN# 1B056568 & Below
  • 0
    8M0131233 IAFM, Intergrated Air/Fuel Module
    SN# 1B056569 & Up
    IAFM, Intergrated Air/Fuel Module
    SN# 1B056569 & Up
  • 1
    8M0132388 CAC ASSEMBLY
    CAC ASSEMBLY
  • 2
    895032 STRAP
    STRAP
  • 3
    10-8M0103805 SCREW, (M6 x 18)
    SCREW, (M6 x 18)
  • 4
    22-8M0039993 FITTING
    FITTING
  • 5
    NSS NOT SOLD SEPARATE, O RING (Part of 895031 Kit)
    NOT SOLD SEPARATE, O RING (Part of 895031 Kit)
  • 6
    895030A01 STACK ASSEMBLY
    STACK ASSEMBLY
  • 7
    895031 SEAL
    SEAL
  • 8
    NSS NOT SOLD SEPARATE, O RING (Part of 895031 Kit)
    NOT SOLD SEPARATE, O RING (Part of 895031 Kit)
  • 9
    19-8M0048079 FITTING
    FITTING
  • 10
    NSS NOT SOLD SEPARATE, O RING (Part of 895031 Kit)
    NOT SOLD SEPARATE, O RING (Part of 895031 Kit)
  • 11
    895035 PLATE
    PLATE
  • 12
    10-895337 SCREW, (M5 x 16)
    SCREW, (M5 x 16)
  • 13
    10-895053 SCREW, (M6 x 15)
    SCREW, (M6 x 15)
  • 14
    891663001 SENSOR ASSEMBLY, Temperature
    SENSOR ASSEMBLY, Temperature
  • 15
    25-892317001 O-RING
    O-RING
  • 16
    10-895054 SCREW, (M4 x 16 MM)
    SCREW, (M4 x 16 MM)
  • 17
    8M0083678 MANIFOLD ASSEMBLY, Intake
    MANIFOLD ASSEMBLY, Intake
  • 18
    895019 SEAL
    SEAL
  • 19
    895020 SEAL
    SEAL
  • 20
    8M6000639 SENSOR
    SENSOR
  • 21
    54-13791 CLAMP, (15.7 mm), Map Sensor to Boot
    CLAMP, (15.7 mm), Map Sensor to Boot
  • 22
    892952500 BOOT
    BOOT
  • 23
    54-888988001 CLAMP, (36.1 mm)
    CLAMP, (36.1 mm)
  • 24
    10-8M0103807 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • 25
    8M0129411 FUEL RAIL KIT
    FUEL RAIL KIT
  • 26
    895028A01 VALVE, Schrader
    VALVE, Schrader
  • 27
    25-895056 O-RING
    O-RING
  • 28
    895026 BRACKET
    BRACKET
  • 29
    10-895051 SCREW, (M5 x 10)
    SCREW, (M5 x 10)
  • 30
    895024 BRACKET
    BRACKET
  • 31
    10-895051 SCREW, (M5 x 10)
    SCREW, (M5 x 10)
  • 32
    8M0041571 INJECTOR, Fuel
    INJECTOR, Fuel
  • 33
    25-851889 O-RING
    O-RING
  • 34
    895025 DAMPER
    DAMPER
  • 35
    25-851889 O-RING
    O-RING
  • 36
    32-895029A01 TUBE KIT, Fuel Inlet
    TUBE KIT, Fuel Inlet
  • 37
    12-895055 WASHER
    WASHER
  • 38
    25-895057 O-RING
    O-RING
  • 39
    895027 BRACKET
    BRACKET
  • 40
    10-895051 SCREW, (M5 x 10)
    SCREW, (M5 x 10)
