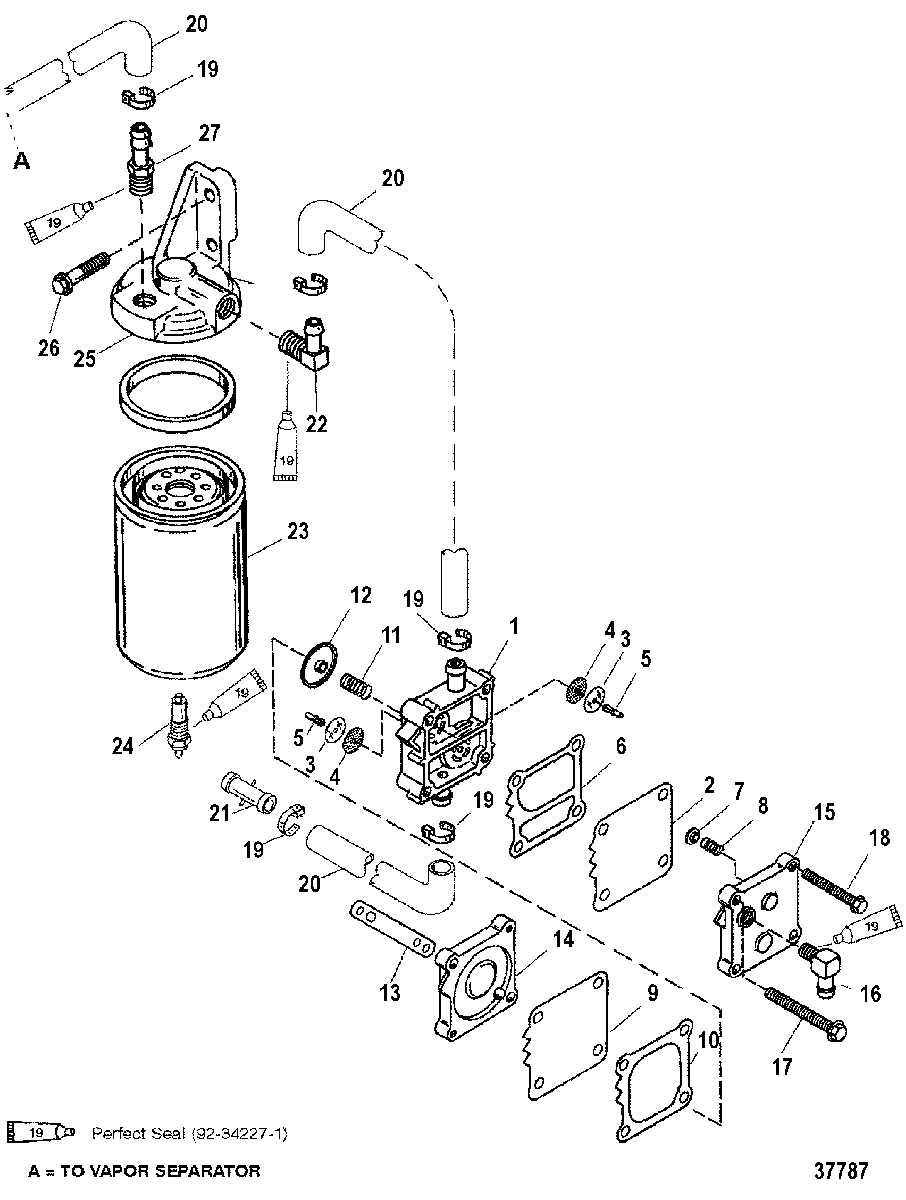

FUEL PUMP для Mercury - 250 (3.0L EFI) 0G129222 THRU 0G760299
-
№АртикулНазвание
-
114360A78 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
221-857005A1 DIAPHAGM KITDIAPHAGM KIT
-
3NSS NOT SOLD SEPARATE, Check Valve-RubberNOT SOLD SEPARATE, Check Valve-Rubber
-
4NSS NOT SOLD SEPARATE, Check ValveNOT SOLD SEPARATE, Check Valve
-
5NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
6NSS NOT SOLD SEPARATE, Gasket-BoostNOT SOLD SEPARATE, Gasket-Boost
-
7NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
8NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
9NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
10NSS NOT SOLD SEPARATE, Gasket-PulseNOT SOLD SEPARATE, Gasket-Pulse
-
11NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
12NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
1327-987691 GASKET, BaseGASKET, Base
-
14144303 BASEBASE
-
15987752 PLATEPLATE
-
1622-629101 ELBOW, (.125-27) (90 DEGREES)ELBOW, (.125-27) (90 DEGREES)
-
1710-82130050 SCREW, (M6 x 50)SCREW, (M6 x 50)
-
1810-82104540 SCREW, (M5 x 40)SCREW, (M5 x 40)
-
1954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2032-8M0108349 TUBING, (28.00 Inches Bulk) (17 IN.)TUBING, (28.00 Inches Bulk) (17 IN.)
-
2122-822769 CONNECTORCONNECTOR
-
2222-136071 ELBOW (INCLUDED WITH REF. #25)ELBOW (INCLUDED WITH REF. #25)
-
2335-18458Q3 FILTER ASSEMBLY, Fuel
SN# 0G303045 & BelowFILTER ASSEMBLY, Fuel
SN# 0G303045 & Below -
2335-18458Q4 FILTER KIT
SN# 0G303046 & UpFILTER KIT
SN# 0G303046 & Up -
2414570 PROBE
SN# 0G303045 & BelowPROBE
SN# 0G303045 & Below -
248285861 PROBE
SN# 0G303046 & UpPROBE
SN# 0G303046 & Up -
2513170A3 BASEBASE
-
2610-82130030 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
2722-89771Q2 CONNECTOR, (.250-18) (STRAIGHT)CONNECTOR, (.250-18) (STRAIGHT)
-
-27-814195A93 GASKET SETGASKET SET
-
-809794R97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
