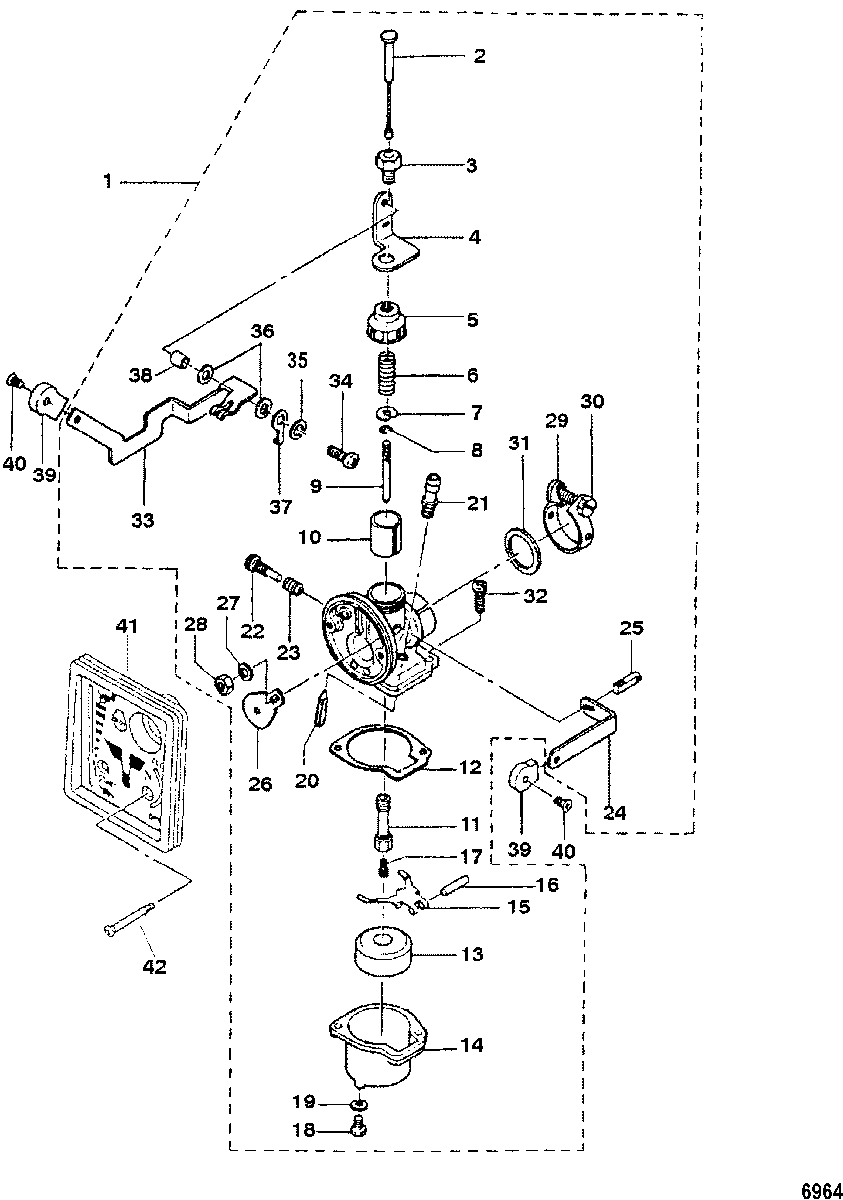

Carburetor для Mercury - 2.5 0P401000 & Up

  • №
    Артикул
    Название
  • 1
    3303-823040T06 CARBURETOR ASSEMBLY
    2 Horsepower
    CARBURETOR ASSEMBLY
    2 Horsepower
  • 1
    3303-823040A5 CARBURETOR ASSEMBLY
    2.5 Horsepower
    CARBURETOR ASSEMBLY
    2.5 Horsepower
  • 1
    3303-823040A4 CARBURETOR ASSEMBLY
    3.3 Horsepower
    CARBURETOR ASSEMBLY
    3.3 Horsepower
  • 2
    95252 WIRE, Throttle
    WIRE, Throttle
  • 3
    10-95321 BOLT
    BOLT
  • 4
    95253 BRACKET
    BRACKET
  • 5
    95254 CAP
    CAP
  • 6
    24-95322 SPRING
    SPRING
  • 7
    95255 PLATE
    PLATE
  • 8
    53-95323 E RING
    E RING
  • 9
    8151263 JET NEEDLE
    JET NEEDLE
  • 10
    95257004 VALVE, Throttle
    2 Horsepower
    VALVE, Throttle
    2 Horsepower
  • 10
    952573 VALVE, Throttle
    2.5 Horsepower
    VALVE, Throttle
    2.5 Horsepower
  • 10
    952572 VALVE, Throttle
    3.3 Horsepower
    VALVE, Throttle
    3.3 Horsepower
  • 11
    8151081 NEEDLE JET
    NEEDLE JET
  • 12
    27-95324 GASKET
    GASKET
  • 13
    95259 FLOAT
    FLOAT
  • 14
    95260 FLOAT BOWL
    FLOAT BOWL
  • 15
    952621 HINGE
    HINGE
  • 16
    17-95327 PIN, Hinge
    PIN, Hinge
  • 17
    8150293 MAIN JET (#86)
    MAIN JET (#86)
  • 18
    10-953251 SCREW, Drain
    SCREW, Drain
  • 19
    27-95326 GASKET
    GASKET
  • 20
    952631 NEEDLE VALVE
    NEEDLE VALVE
  • 21
    952641 SEAT, Needle Valve
    SEAT, Needle Valve
  • 22
    10-95328 SCREW
    SCREW
  • 23
    24-95329 SPRING
    SPRING
  • 24
    95266 LEVER, Shutter
    LEVER, Shutter
  • 25
    10-95331 SCREW
    SCREW
  • 26
    95265 PLATE, Choke
    PLATE, Choke
  • 27
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 28
    11-95330 NUT
    NUT
  • 29
    54-95332 CLAMP
    CLAMP
  • 30
    10-95333 SCREW
    SCREW
  • 31
    25-811601 O-RING
    O-RING
  • 32
    10-815071 SCREW
    SCREW
  • 33
    95268 LEVER, Throttle
    LEVER, Throttle
  • 34
    10-815072 SCREW
    SCREW
  • 35
    13-95238 LOCKWASHER
    LOCKWASHER
  • 36
    27-95336 GASKET
    GASKET
  • 37
    952672 BRACKET
    BRACKET
  • 38
    23-952867 COLLAR
    COLLAR
  • 39
    95269 KNOB
    KNOB
  • 40
    10-95338 SCREW
    SCREW
  • 41
    8150731 COVER
    2/2.5 Horsepower SN# 1B575522 & Below
    COVER
    2/2.5 Horsepower SN# 1B575522 & Below
  • 41
    8M0058606 COVER
    2/2.5 Horsepower SN# 1B575523 & Up
    COVER
    2/2.5 Horsepower SN# 1B575523 & Up
  • 41
    815073 COVER
    3.3 Horsepower SN# 1B575752 & Below
    COVER
    3.3 Horsepower SN# 1B575752 & Below
  • 41
    8M0058621 COVER
    3.3 Horsepower SN# 1B575753 & Up
    COVER
    3.3 Horsepower SN# 1B575753 & Up
  • 42
    10-95339 SCREW
    SCREW
  • -
    855546A4 REPAIR KIT, Carburetor
    REPAIR KIT, Carburetor
  • -
    8M0080062 MAIN JET, (#80)
    3.3, High altitude
    MAIN JET, (#80)
    3.3, High altitude
  • -
    8M0080063 MAIN JET, (#78)
    3.3, High altitude
    MAIN JET, (#78)
    3.3, High altitude
  • -
    8M0080064 MAIN JET, (#76)
    3.3, High altitude
    MAIN JET, (#76)
    3.3, High altitude
