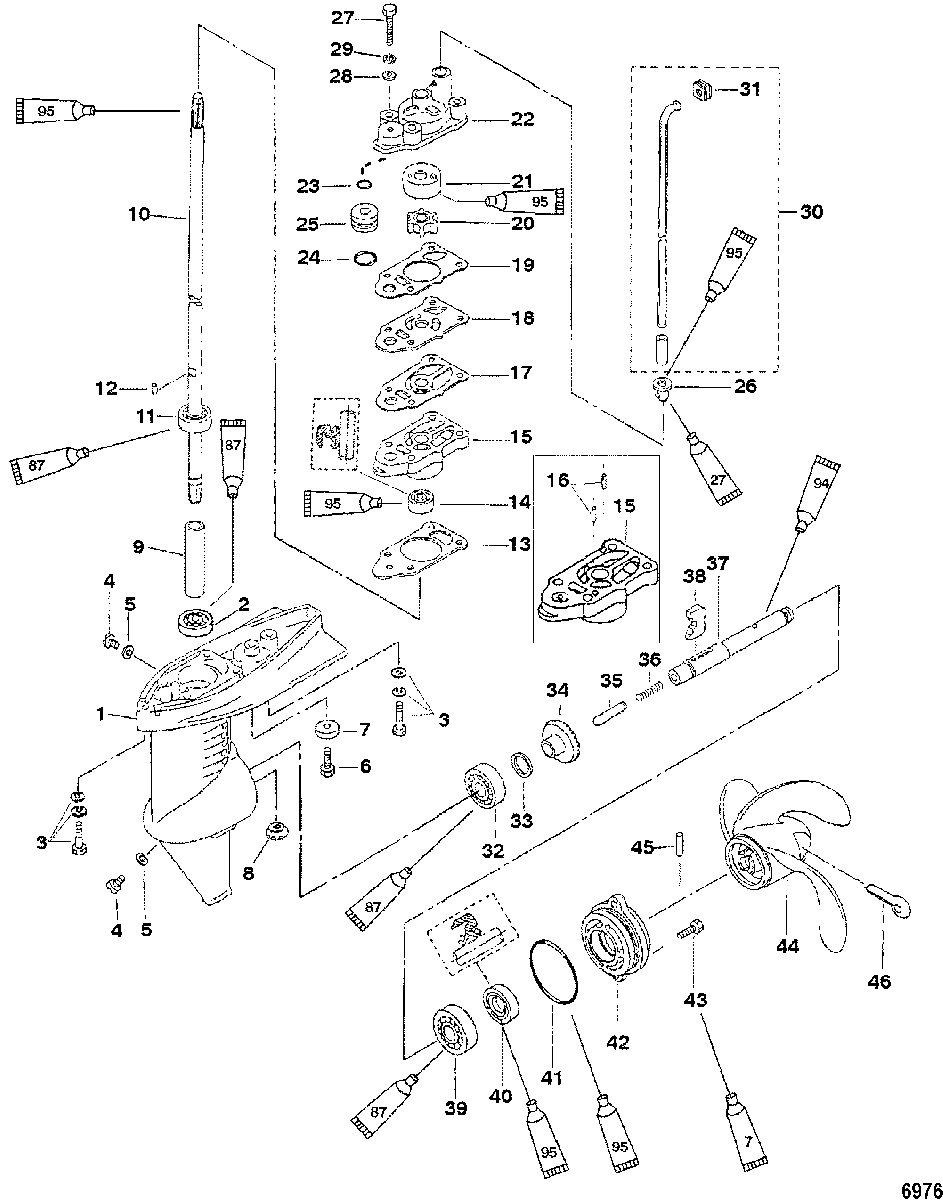

Gear Housing Assembly(3.3 HP) для Mercury - 2.5 0G710613 THRU 0T894576

№

Артикул

Название
-

1600-8M0122311 GEAR HOUSING, Complete
(Short)

GEAR HOUSING, Complete
(Short)

0 ₽
-

1600-8M0122312 GEAR HOUSING, Complete
(Long)

GEAR HOUSING, Complete
(Long)

0 ₽
1

1668-825126T06 GEAR HOUSING, Basic

GEAR HOUSING, Basic

19 690 ₽
2

30-95342 BALL BEARING (Lower)

BALL BEARING (Lower)

2 250 ₽
3

10-82304232 BOLT

BOLT

230 ₽
4

22-953683 OIL PLUG

OIL PLUG

570 ₽
5

8M0082880 GASKET

GASKET

470 ₽
6

10-16832 BOLT, (M6 x 16)

BOLT, (M6 x 16)

190 ₽
7

97-823913Q ANODE

ANODE

1 220 ₽
8

43-8M0122680 GEAR

GEAR

12 030 ₽
9

23-8104711 SPACER

SPACER

790 ₽
10

45-8M0116958 DRIVESHAFT
(Short)

DRIVESHAFT
(Short)

10 290 ₽
10

45-8M0116959 DRIVESHAFT
(Long)

DRIVESHAFT
(Long)

0 ₽
11

30-95342 BALL BEARING

BALL BEARING

2 250 ₽
12

28-16155 KEY

KEY

170 ₽
13

27-898101333 GASKET

GASKET

450 ₽
14

26-161621 SEAL, Oil

SEAL, Oil

440 ₽
15

46-815113T03 PUMP HOUSING

PUMP HOUSING

7 170 ₽
16

17-9521811 ROLL PIN

ROLL PIN

110 ₽
17

27-161603 GASKET

GASKET

350 ₽
18

161591 GUIDE PLATE

GUIDE PLATE

420 ₽
19

27-898101331 GASKET

GASKET

350 ₽
20

47-161543 IMPELLER

IMPELLER

1 800 ₽
21

161571 LINER

LINER

300 ₽
22

46-161561 HOUSING

HOUSING

1 570 ₽
23

25-161771 O-RING

O-RING

110 ₽
24

25-161781 O-RING

O-RING

110 ₽
25

23-161761 BUSHING

BUSHING

220 ₽
26

25-953611 GROMMET

GROMMET

220 ₽
27

10-8M0063198 BOLT

BOLT

130 ₽
28

12-16826 WASHER

WASHER

110 ₽
29

13-400256 LOCKWASHER, (M6)

LOCKWASHER, (M6)

270 ₽
30

32-953591 WATER TUBE
(Short)

WATER TUBE
(Short)

2 740 ₽
30

32-953592 WATER TUBE
(Long)

WATER TUBE
(Long)

0 ₽
31

25-953601 GROMMET

GROMMET

190 ₽
32

30-16128 BEARING, Ball

BEARING, Ball

2 570 ₽
33

15-16141 SHIM
(0.1)

SHIM
(0.1)

360 ₽
33

15-813277 SHIM
(0.15)

SHIM
(0.15)

460 ₽
34

43-8M0122680 GEAR

GEAR

12 030 ₽
35

823050 PUSH ROD

PUSH ROD

550 ₽
36

24-176671 SPRING

SPRING

200 ₽
37

44-952911 PROP SHAFT

PROP SHAFT

9 330 ₽
38

52-823049 CLUTCH

CLUTCH

1 100 ₽
39

30-95344 BALL BEARING

BALL BEARING

1 330 ₽
40

26-95348 OIL SEAL

OIL SEAL

670 ₽
41

25-16131 O-RING

O-RING

490 ₽
42

825116 HOUSING

HOUSING

2 440 ₽
43

10-167051 BOLT, (M6 x 20)

BOLT, (M6 x 20)

230 ₽
44

48-815083A02 PROPELLER
(Plastic)

PROPELLER
(Plastic)

5 540 ₽
44

48-815084A02 PROPELLER
(Aluminum)

PROPELLER
(Aluminum)

12 140 ₽
45

17-815111Q02 PIN
(Plastic Propeller)

PIN
(Plastic Propeller)

2 320 ₽
45

17-815111Q02 SHEAR PIN
(Aluminum Ppropeller)

SHEAR PIN
(Aluminum Ppropeller)

2 320 ₽
46

18-95295 COTTER PIN

COTTER PIN

120 ₽
-

27-8M0082881 GASKET SET, Lower Unit

GASKET SET, Lower Unit

4 020 ₽
-

8M0080264 REPAIR KIT, Water Pump

REPAIR KIT, Water Pump

7 660 ₽
