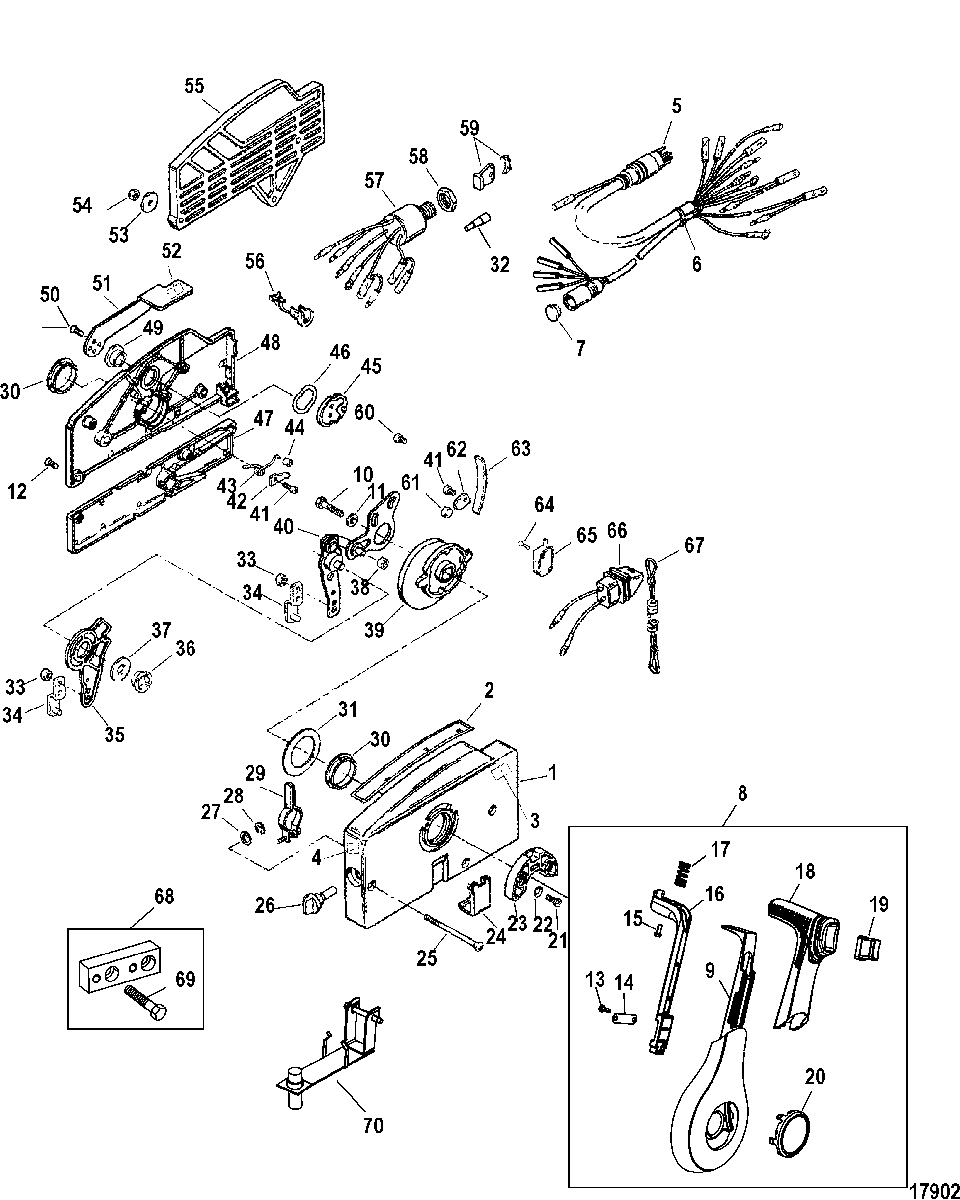

Remote Control-4000 Side Mount(Non Power Trim) для Mercury - 25 Jet (2 CYL.)(2-STROKE)(International) 0N088578 & Up

  • №
    Артикул
    Название
  • -
    881170A9 REMOTE CONTROL, Electric Start - Non Power Trim
    REMOTE CONTROL, Electric Start - Non Power Trim
  • 1
    NSS NOT SOLD SEPARATE, Housing, Front
    NOT SOLD SEPARATE, Housing, Front
  • 2
    37-170622 DECAL, (F-N-R)
    DECAL, (F-N-R)
  • 3
    NSS NOT SOLD SEPARATE, Decal, Throttle Friction
    NOT SOLD SEPARATE, Decal, Throttle Friction
  • 4
    NSS NOT SOLD SEPARATE, Decal, Run/Off
    NOT SOLD SEPARATE, Decal, Run/Off
  • 5
    84-850731A2 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 6
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 7
    19-11023 PLUG
    PLUG
  • 8
    881148T04 HANDLE KIT
    HANDLE KIT
  • 9
    NSS NOT SOLD SEPARATE, Hub, Handle
    NOT SOLD SEPARATE, Hub, Handle
  • 10
    10-4007154 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 11
    12-12038 WASHER
    WASHER
  • 12
    10-40118107 SCREW, (M5 x 18)
    SCREW, (M5 x 18)
  • 13
    10-4005685 SCREW, (M4 x 10)
    SCREW, (M4 x 10)
  • 14
    16921 BRACKET, Lock Bar Support
    BRACKET, Lock Bar Support
  • 15
    10-87775510 SCREW, (M4 x 10)
    SCREW, (M4 x 10)
  • 16
    881138 LOCK BAR, Red
    LOCK BAR, Red
  • 17
    24-16924 SPRING
    SPRING
  • 18
    8811411 GRIP
    GRIP
  • 19
    881146 PLUG
    PLUG
  • 20
    881137A1 CAP/DECAL ASSEMBLY
    CAP/DECAL ASSEMBLY
  • 21
    10-40118107 SCREW, (M5 x 18)
    SCREW, (M5 x 18)
  • 22
    13-16923 LOCKWASHER, External
    LOCKWASHER, External
  • 23
    16899T HOLDER, Neutral Lock
    HOLDER, Neutral Lock
  • 24
    16917 COVER
    COVER
  • 25
    10-40116110T SCREW, (M6 x 110)
    SCREW, (M6 x 110)
  • 26
    881145 KNOB, Throttle Friction
    KNOB, Throttle Friction
  • 27
    12-16896 WASHER
    WASHER
  • 28
    53-13194 RING, Retaining
    RING, Retaining
  • 29
    16895 ARM ASSEMBLY, Brake
    ARM ASSEMBLY, Brake
  • 30
    23-16875 BEARING, (1.750 Inside Diameter)
    BEARING, (1.750 Inside Diameter)
  • 31
    12-16874 WASHER
    WASHER
  • 32
    13541 PLUG, Male
    PLUG, Male
  • 32
    13540 CAP, Female
    CAP, Female
  • 33
    11-401385 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 34
    54-85899A1 CLIP ASSEMBLY
    CLIP ASSEMBLY
  • 35
    NSS NOT SOLD SEPARATE, Gear Shift Assembly
    NOT SOLD SEPARATE, Gear Shift Assembly
  • 36
    23-16868 BEARING, (.750 Inside Diameter)
    BEARING, (.750 Inside Diameter)
  • 37
    12-16870 WASHER
    WASHER
  • 38
    16873 ROLLER, Cam
    ROLLER, Cam
  • 39
    NSS NOT SOLD SEPARATE, Drive Gear
    NOT SOLD SEPARATE, Drive Gear
  • 40
    NSS NOT SOLD SEPARATE, Plate, Stud Assembly
    NOT SOLD SEPARATE, Plate, Stud Assembly
  • 41
    10-4005683 SCREW, (M4 x 6)
    SCREW, (M4 x 6)
  • 42
    16886 CLIP
    CLIP
  • 43
    24-16888 SPRING
    SPRING
  • 44
    16884 ROLLER
    ROLLER
  • 45
    16883 DRUM ASSEMBLY
    DRUM ASSEMBLY
  • 46
    13-16922 WAVE WASHER
    WAVE WASHER
  • 47
    NSS NOT SOLD SEPARATE, Cover, Bottom
    NOT SOLD SEPARATE, Cover, Bottom
  • 48
    NSS NOT SOLD SEPARATE, Cover, Top
    NOT SOLD SEPARATE, Cover, Top
  • 49
    23-16887 BEARING, (.810 Inside Diameter)
    BEARING, (.810 Inside Diameter)
  • 50
    10-40118106 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 51
    16919A1 LEVER ASSEMBLY, With Decal
    LEVER ASSEMBLY, With Decal
  • 52
    NSS NOT SOLD SEPARATE, Decal, Lift for Fast Idle
    NOT SOLD SEPARATE, Decal, Lift for Fast Idle
  • 53
    12-35280 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 54
    11-401196 NUT, (M6)
    NUT, (M6)
  • 55
    17063T SPACER
    SPACER
  • 56
    23-71942 BUSHING
    BUSHING
  • 57
    87-17009A5 SWITCH ASSEMBLY, Ignition
    SWITCH ASSEMBLY, Ignition
  • 58
    11-879755 NUT, Special - Black Nylon
    NUT, Special - Black Nylon
  • 59
    90468A1 COVER ASSEMBLY, Key
    COVER ASSEMBLY, Key
  • 60
    10-40056105 SCREW, (M5 x 10)
    SCREW, (M5 x 10)
  • 61
    16879 ROLLER, Detent
    ROLLER, Detent
  • 62
    16880 CLIP
    CLIP
  • 63
    24-16882 SPRING
    SPRING
  • 64
    10-4005647 SCREW, (M3 x 16)
    SCREW, (M3 x 16)
  • 65
    87-17277T SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 66
    87-91941A8 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 67
    8M0092850 LANYARD ASSEMBLY
    LANYARD ASSEMBLY
  • 68
    850753A1 SPACER KIT, Rigging
    SPACER KIT, Rigging
  • 69
    10-4008820 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 70
    91-892542A01 INDICATOR, Shift Load Tool
    INDICATOR, Shift Load Tool
