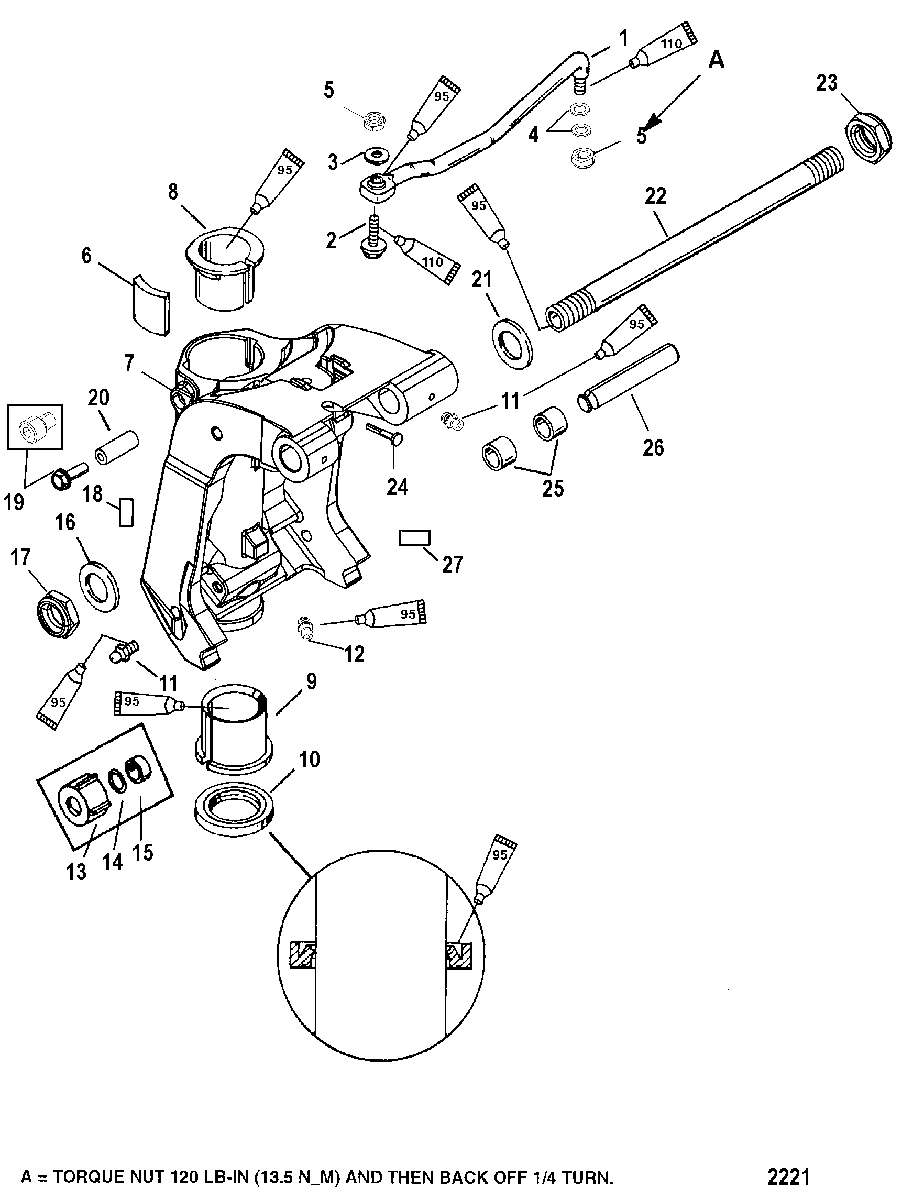

Swivel Bracket для Mercury - 25 (4-STROKE) 9973100 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    19608A14 LINK ROD
    NON HANDLE
    LINK ROD
    NON HANDLE
  • 2
    10-823919 SCREW, (.375-24 x 1.500)
    NON HANDLE
    SCREW, (.375-24 x 1.500)
    NON HANDLE
  • 3
    12-8M0109680 WASHER, (.390 x .546 x .12)
    NON HANDLE
    WASHER, (.390 x .546 x .12)
    NON HANDLE
  • 4
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    NON HANDLE
    WASHER, (.390 x .625 x .062) Stainless Steel
    NON HANDLE
  • 5
    11-8M0042636 NUT, (.375-24)
    NON HANDLE
    NUT, (.375-24)
    NON HANDLE
  • 6
    822397 PUCK
    (ELECTRIC)
    PUCK
    (ELECTRIC)
  • 7
    3410-827402T5 SWIVEL BRACKET ASSEMBLY
    (BLACK)
    SWIVEL BRACKET ASSEMBLY
    (BLACK)
  • 7
    3410-827402T5 SWIVEL BRACKET ASSEMBLY
    (GRAY)
    SWIVEL BRACKET ASSEMBLY
    (GRAY)
  • 8
    23-8217711 BUSHING
    BUSHING
  • 9
    23-821777 BUSHING (LOWER)
    BUSHING (LOWER)
  • 10
    26-822404 SEAL
    SEAL
  • 11
    22-74036 FITTING, Grease
    FITTING, Grease
  • 12
    22-74036 FITTING, Grease
    (HANDLE)
    FITTING, Grease
    (HANDLE)
  • 13
    19624A1 SEAL KIT
    NON HANDLE
    SEAL KIT
    NON HANDLE
  • 14
    25-29619 O-RING, (.583 x .103)
    NON HANDLE
    O-RING, (.583 x .103)
    NON HANDLE
  • 15
    23-78861 SPACER
    NON HANDLE
    SPACER
    NON HANDLE
  • 16
    12-19619 WASHER
    WASHER
  • 17
    11-826164 NUT, (.875-14)
    NUT, (.875-14)
  • 18
    NSS NOT SOLD SEPARATE, Decal-Serial Overlaminate
    NOT SOLD SEPARATE, Decal-Serial Overlaminate
  • 19
    10-4008910 SCREW, (M8 x 10) Stainless Steel
    MANUAL HANDLE
    SCREW, (M8 x 10) Stainless Steel
    MANUAL HANDLE
  • 19
    10-40011149 SCREW, (M8 x 25) Stainless Steel
    ELECTRIC
    SCREW, (M8 x 25) Stainless Steel
    ELECTRIC
  • 20
    8282451 SEAL
    ELECTRIC
    SEAL
    ELECTRIC
  • 21
    12-19619 WASHER
    WASHER
  • 22
    8M0041938 TILT TUBE
    TILT TUBE
  • 23
    11-826164 NUT, (.875-14)
    NUT, (.875-14)
  • 24
    17-821539 PIN, Trilobe
    PIN, Trilobe
  • 25
    23-823507 BUSHING
    BUSHING
  • 26
    17-822480 PIN, Pivot (UPPER)
    PIN, Pivot (UPPER)
  • 27
    37-8237011 DECAL, Co-Pilot
    DECAL, Co-Pilot
