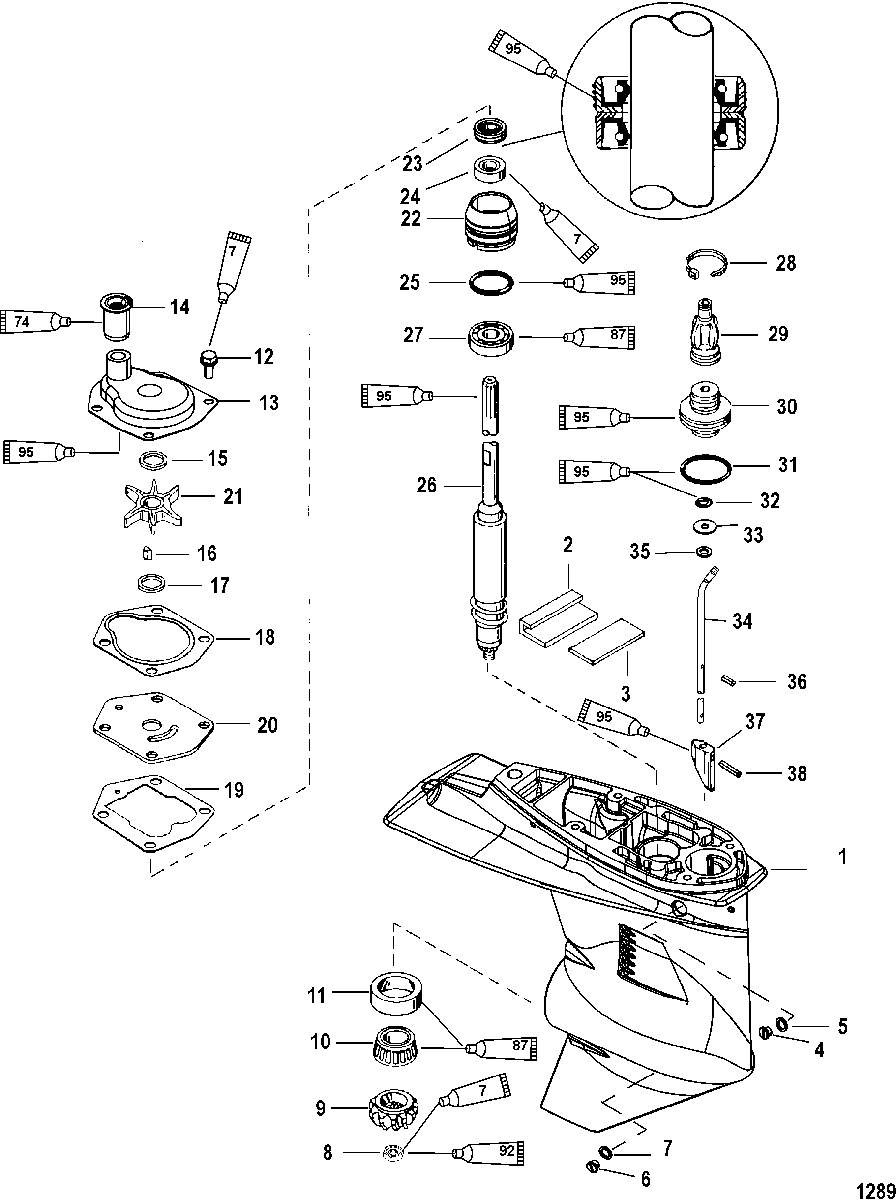

Gear Housing, Driveshaft - 2.41:1 Gear Ratio для Mercury - 25 (4-STROKE) 0G590000 THRU 0G760299

  • №
    Артикул
    Название
  • -
    1682-821306T30 GEAR HOUSING ASSEMBLY
    (BLACK) SHORT
    GEAR HOUSING ASSEMBLY
    (BLACK) SHORT
  • -
    1682-821306T31 GEAR HOUSING ASSEMBLY
    (GRAY) SHORT
    GEAR HOUSING ASSEMBLY
    (GRAY) SHORT
  • -
    1682-821306T32 GEAR HOUSING ASSEMBLY
    (BLACK) LONG
    GEAR HOUSING ASSEMBLY
    (BLACK) LONG
  • -
    1682-821306T32 GEAR HOUSING ASSEMBLY
    (GRAY) LONG
    GEAR HOUSING ASSEMBLY
    (GRAY) LONG
  • 1
    1682-821306T12 GEAR HOUSING ASSEMBLY
    (BLACK) BASIC
    GEAR HOUSING ASSEMBLY
    (BLACK) BASIC
  • 1
    1682-821306T12 GEAR HOUSING ASSEMBLY
    (GRAY) BASIC
    GEAR HOUSING ASSEMBLY
    (GRAY) BASIC
  • 2
    818226A1 SEAL/PLATE KIT
    SEAL/PLATE KIT
  • 3
    NSS NOT SOLD SEPARATE, Plate
    NOT SOLD SEPARATE, Plate
  • 4
    10-79953Q04 SCREW KIT, (.375-16 x .250)
    SCREW KIT, (.375-16 x .250)
  • 5
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 6
    22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
    FITTING KIT, Magnetic, Plug Fill/Drain
  • 7
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 8
    11-828490 NUT
    NUT
  • 9
    NSS NOT SOLD SEPARATE, Pinion Gear (Part of 43-833000A2)(12 Teeth)
    NOT SOLD SEPARATE, Pinion Gear (Part of 43-833000A2)(12 Teeth)
  • 10
    31-821321A2 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 11
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 12
    10-8248324 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 13
    46-821351A3 HOUSING ASSEMBLY, Water Pump Upper
    HOUSING ASSEMBLY, Water Pump Upper
  • 14
    43023 SEAL
    (SHORT - 1-3/4)
    SEAL
    (SHORT - 1-3/4)
  • 14
    8235471 SEAL
    (LONG - 2-1/4)
    SEAL
    (LONG - 2-1/4)
  • 15
    12-866451 WASHER
    WASHER
  • 16
    28-8M0032838 KEY
    KEY
  • 17
    12-866451 WASHER
    WASHER
  • 18
    27-822189 GASKET, Upper Water Pump
    GASKET, Upper Water Pump
  • 19
    27-822217 GASKET, Lower Water Pump
    GASKET, Lower Water Pump
  • 20
    8213542 FACE PLATE
    FACE PLATE
  • 21
    47-8508910 IMPELLER
    IMPELLER
  • 22
    46-821307A2 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • 23
    26-821309 SEAL
    SEAL
  • 24
    26-821310 SEAL
    SEAL
  • 25
    25-821308 O-RING, (1.421 x .139)
    O-RING, (1.421 x .139)
  • 26
    45-850177A1 DRIVESHAFT
    (SHORT)
    DRIVESHAFT
    (SHORT)
  • 26
    45-832987A1 DRIVESHAFT
    (LONG)
    DRIVESHAFT
    (LONG)
  • 27
    30-821311 BEARING, Ball
    BEARING, Ball
  • 28
    54-8M0064024 TIE STRAP
    TIE STRAP
  • 29
    822158 BOOT
    BOOT
  • 30
    821827 RETAINER
    RETAINER
  • 31
    25-26855 O-RING, (1.609 x .139)
    O-RING, (1.609 x .139)
  • 32
    25-85594 O-RING, (.239 x .174)
    O-RING, (.239 x .174)
  • 33
    12-814803 WASHER
    WASHER
  • 34
    827865A2 SHIFT SHAFT
    (SHORT)
    SHIFT SHAFT
    (SHORT)
  • 34
    827865A1 SHIFT SHAFT
    (LONG)
    SHIFT SHAFT
    (LONG)
  • 35
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 36
    17-85593 PIN, (.078 x .437)
    PIN, (.078 x .437)
  • 37
    8213161 CAM, Shift
    CAM, Shift
  • 38
    17-822369 PIN, (.125 x .625)
    PIN, (.125 x .625)
  • -
    821354A2 REPAIR KIT, Water Pump
    REPAIR KIT, Water Pump
  • -
    823547A2 SEAL KIT
    SEAL KIT
