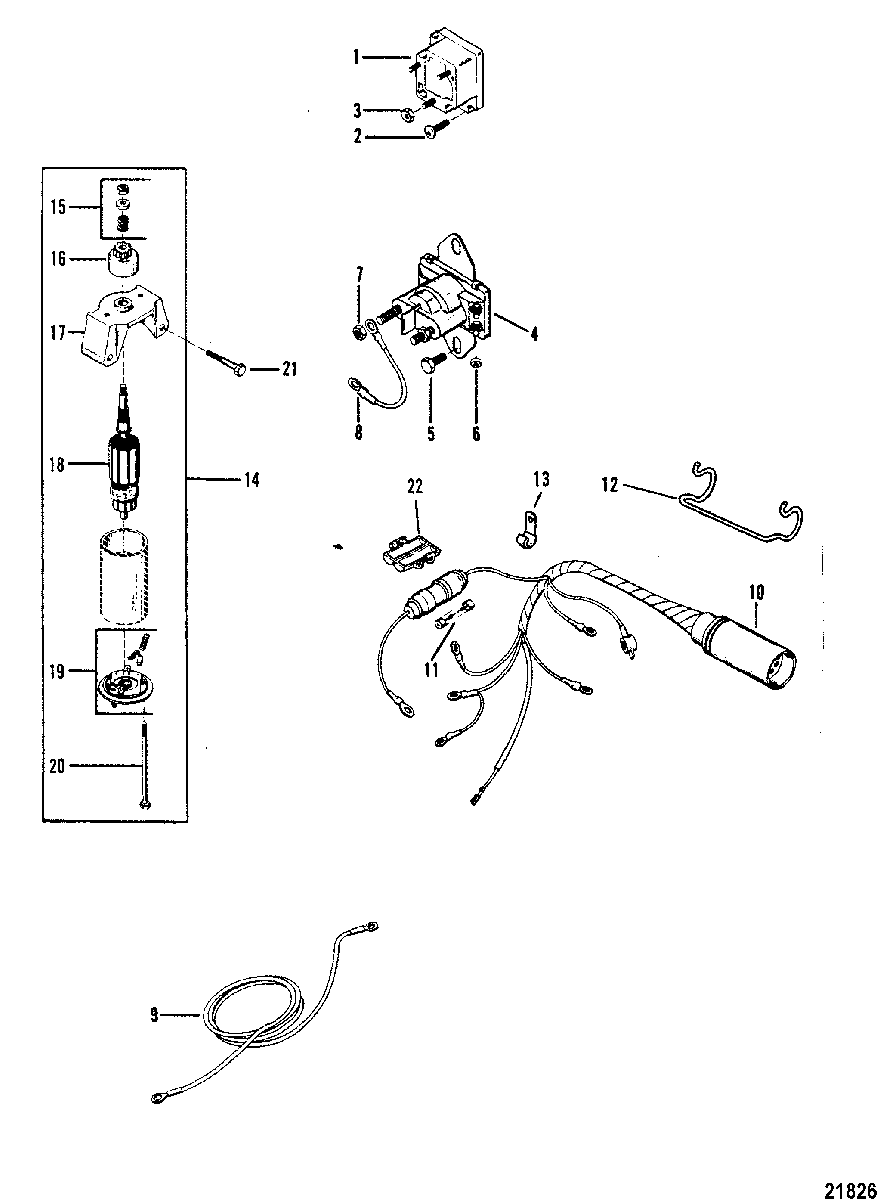

Electric Start Components для Mercury - 25, 25 SEA PRO, SUPER 15 (2 CYL.) 9507381 THRU 9807908

  • №
    Артикул
    Название
  • 1
    8M0058226 RECTIFIER
    RECTIFIER
  • 2
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, RECTIFIER TO CYLINDER BLOCK
    SCREW, (#10-16 x .625) Stainless Steel, RECTIFIER TO CYLINDER BLOCK
  • 3
    11-45076 NUT, (#10-32) Brass, RECTIFIER TERMINALS
    NUT, (#10-32) Brass, RECTIFIER TERMINALS
  • 4
    89-96054T SOLENOID ASSEMBLY, Starter
    SOLENOID ASSEMBLY, Starter
  • 5
    10-4000327 SCREW, (M6 x 14), STARTER SOLENOID TO CRANKCASE
    SCREW, (M6 x 14), STARTER SOLENOID TO CRANKCASE
  • 6
    11-26419 NUT, (#8-32) Brass, STARTER SOLENOID TERMINAL
    NUT, (#8-32) Brass, STARTER SOLENOID TERMINAL
  • 7
    11-64015 NUT, (.250-20), STARTER SOLENOID TERMINAL
    NUT, (.250-20), STARTER SOLENOID TERMINAL
  • 8
    84-88809A5 WIRE ASSEMBLY (YELLOW)
    WIRE ASSEMBLY (YELLOW)
  • 9
    84-88439A27 CABLE ASSEMBLY, Battery (RED)
    CABLE ASSEMBLY, Battery (RED)
  • 9
    84-88439A28 CABLE ASSEMBLY, Battery (BLACK)
    CABLE ASSEMBLY, Battery (BLACK)
  • 10
    84-92436A5 HARNESS ASSEMBLY, ENGINE
    HARNESS ASSEMBLY, ENGINE
  • 11
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 12
    92753 RETAINER
    RETAINER
  • 13
    54-55098 J CLIP
    J CLIP
  • 14
    50-8M0033984 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 15
    96561 DRIVE KIT
    DRIVE KIT
  • 16
    96562 DRIVE
    DRIVE
  • 17
    96563T END CAP
    END CAP
  • 18
    96565 ARMATURE
    ARMATURE
  • 19
    96564T END CAP
    END CAP
  • 20
    10-96566 THRU BOLT
    THRU BOLT
  • 21
    10-421251 SCREW, (M8 x 55), STARTER MOTOR ATTACHING
    SCREW, (M8 x 55), STARTER MOTOR ATTACHING
  • 22
    134731 HOLDER, Fuse (OLD DESIGN)
    HOLDER, Fuse (OLD DESIGN)
