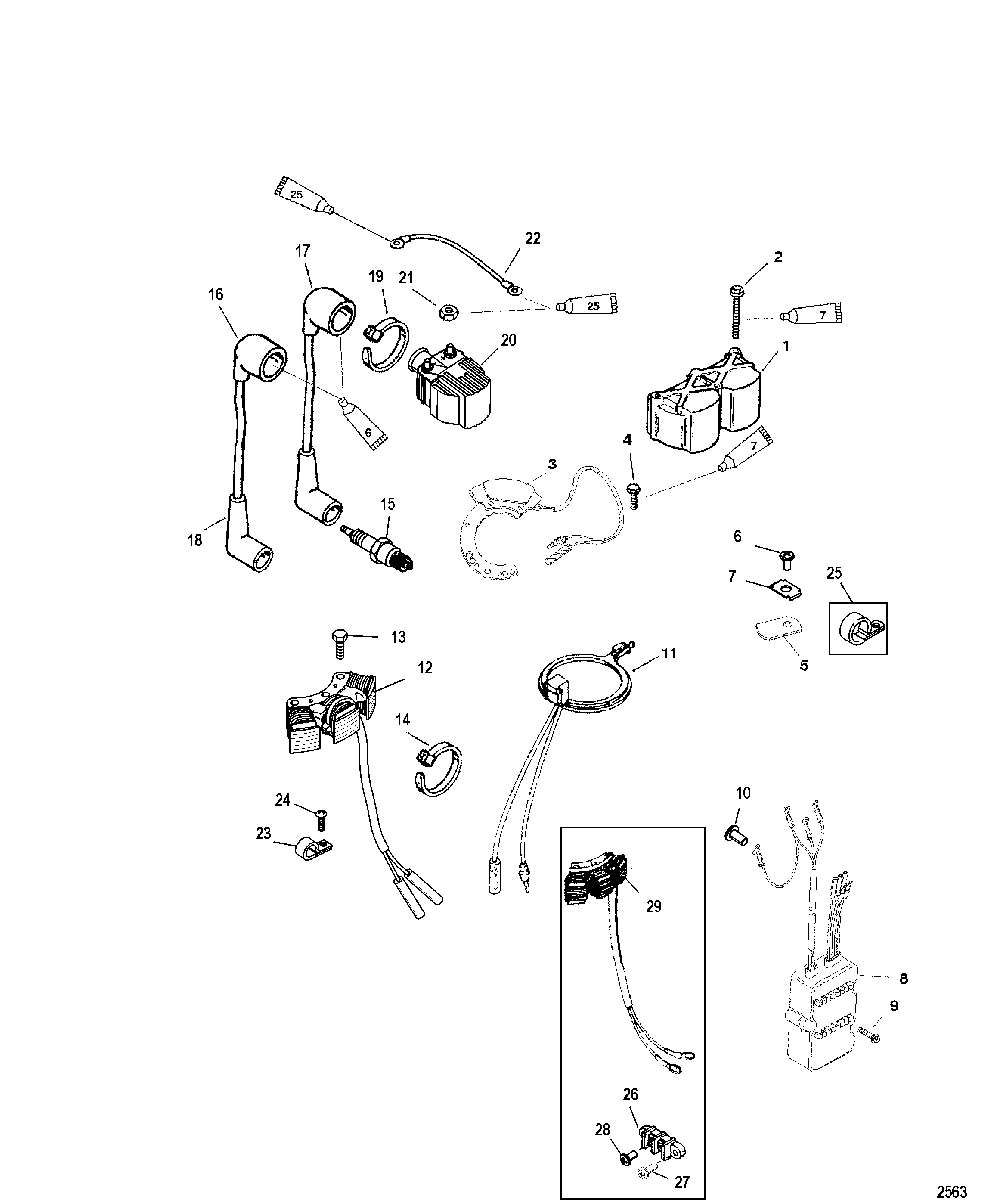

Ignition/Electrical Components для Mercury - 25, 25 SEA PRO, SUPER 15 (2 CYL.) 0G760300 THRU 0T979999

  • №
    Артикул
    Название
  • 1
    997621 COVER, Ignition Coil
    COVER, Ignition Coil
  • 2
    10-1994155 SCREW, (M5 x 55)
    SCREW, (M5 x 55)
  • 3
    855721T8 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 4
    10-4013930 SCREW, (M5 x 30)
    SCREW, (M5 x 30)
  • 4
    10-4013910 SCREW, (M5 x 10)
    SCREW, (M5 x 10)
  • 5
    54-856999 STRAP
    (Design II)
    STRAP
    (Design II)
  • 6
    10-62568 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
  • 7
    8M0084613 C WASHER
    C WASHER
  • 8
    855713A4 SWITCHBOX ASSEMBLY
    (Non-Commercial)
    SWITCHBOX ASSEMBLY
    (Non-Commercial)
  • 8
    855713A3 SWITCHBOX ASSEMBLY
    (Commercial/Jet 20)
    SWITCHBOX ASSEMBLY
    (Commercial/Jet 20)
  • 9
    10-40019111 SCREW, (M5 x 35)
    SCREW, (M5 x 35)
  • 10
    10-62568 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
  • 11
    98450A10 TRIGGER ASSEMBLY
    TRIGGER ASSEMBLY
  • 12
    86704T11 STATOR AUXILIARY
    SN# 0T409000/0P153500 & Up
    STATOR AUXILIARY
    SN# 0T409000/0P153500 & Up
  • 13
    10-4013930 SCREW, (M5 x 30)
    SCREW, (M5 x 30)
  • 14
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 15
    33-816737Q SPARK PLUG
    (NGK #BP8H-N-10)
    SPARK PLUG
    (NGK #BP8H-N-10)
  • 15
    33-816837Q SPARK PLUG
    (NGK #BPZ8H-N-10) (CAN/BELG.)
    SPARK PLUG
    (NGK #BPZ8H-N-10) (CAN/BELG.)
  • 16
    84-813715A2 CABLE SET, High Tension (5 and 8.25 Inch)
    CABLE SET, High Tension (5 and 8.25 Inch)
  • 17
    NSS NOT SOLD SEPARATE, Hi-Tension Cable
    NOT SOLD SEPARATE, Hi-Tension Cable
  • 17
    NSS NOT SOLD SEPARATE, Hi-Tension Cable
    NOT SOLD SEPARATE, Hi-Tension Cable
  • 18
    85-63709A1 BOOT/TERMINAL KIT
    BOOT/TERMINAL KIT
  • 19
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 20
    339-832757A4 COIL KIT
    COIL KIT
  • 21
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 22
    84-88807A10 CABLE ASSEMBLY, Black
    CABLE ASSEMBLY, Black
  • 23
    54-24836 CLIP
    CLIP
  • 24
    10-48408 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 25
    54-22740 CLIP
    (Design I)
    CLIP
    (Design I)
  • 26
    86-638131 TERMINAL BLOCK
    SN# 0T408999/0P153499 & Below
    TERMINAL BLOCK
    SN# 0T408999/0P153499 & Below
  • 27
    10-48409 SCREW, (#10-16 x .625) Stainless Steel
    SN# 0T408999/0P153499 & Below
    SCREW, (#10-16 x .625) Stainless Steel
    SN# 0T408999/0P153499 & Below
  • 28
    10-62568 SCREW, (#10-16 x .375)
    SN# 0T408999/0P153499 & Below
    SCREW, (#10-16 x .375)
    SN# 0T408999/0P153499 & Below
  • 29
    86704A10 STATOR, Auxiliary
    SN# 0T408999/0P153499 & Below
    STATOR, Auxiliary
    SN# 0T408999/0P153499 & Below
  • NS
    13541 PLUG, Male
    PLUG, Male
  • NS
    13540 CAP, Female
    CAP, Female
