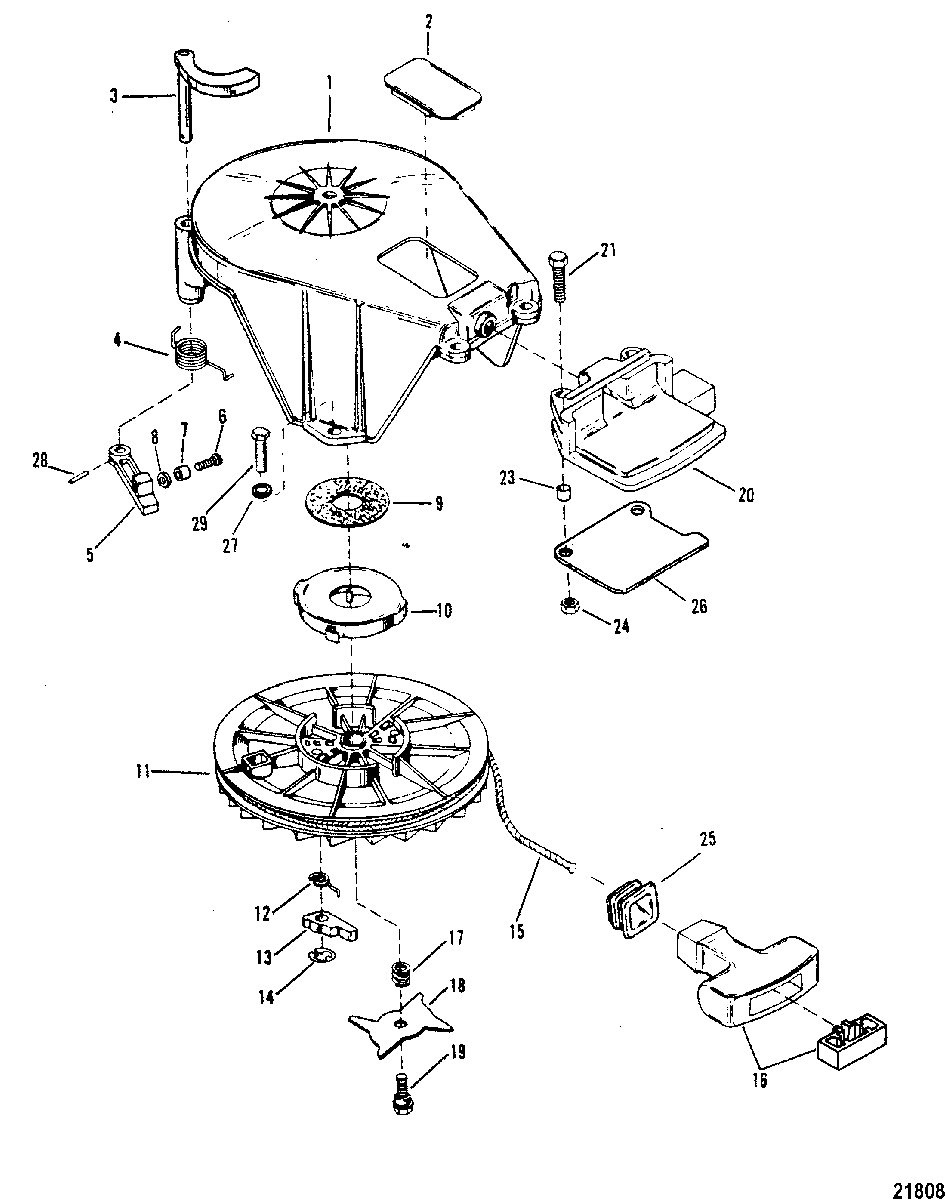

Recoil Starter Assembly(MANUAL) для Mercury - 25, 25 SEA PRO, SUPER 15 (2 CYL.) 0B238464 THRU 0G044026

  • №
    Артикул
    Название
  • 1
    86689A5 HOUSING ASSEMBLY, Starter, STARTER
    HOUSING ASSEMBLY, Starter, STARTER
  • 2
    86971 COVER, STARTER HOUSING (EARLY MODELS)
    COVER, STARTER HOUSING (EARLY MODELS)
  • 3
    858925 LEVER, LOCK (UPPER)
    LEVER, LOCK (UPPER)
  • 4
    24-12734 SPRING, UPPER LOCK LEVER
    SPRING, UPPER LOCK LEVER
  • 5
    93876T02 LEVER, LOCK (LOWER)
    LEVER, LOCK (LOWER)
  • 6
    10-92799 SCREW, (#10-16 x 1.12), LOWER LOCK LEVER
    (20/25)
    SCREW, (#10-16 x 1.12), LOWER LOCK LEVER
    (20/25)
  • 6
    10-92051 SCREW, (10-16 x .75)
    (SeaPro/Marathon 25/Super 15)
    SCREW, (10-16 x .75)
    (SeaPro/Marathon 25/Super 15)
  • 7
    23-818142 BUSHING
    (SeaPro/Marathon 25/Super 15)
    BUSHING
    (SeaPro/Marathon 25/Super 15)
  • 8
    12-89302 WASHER, (.203 x .406 x .040)
    (SeaPro/Marathon 25/Super 15)
    WASHER, (.203 x .406 x .040)
    (SeaPro/Marathon 25/Super 15)
  • 9
    833161T PAD, FELT
    PAD, FELT
  • 10
    24-86857T01 SPRING, STARTER
    SPRING, STARTER
  • 11
    50-825269T01 SHEAVE, STARTER
    SHEAVE, STARTER
  • 12
    24-86851T02 SPRING, CAM
    SPRING, CAM
  • 13
    868501 CAM
    CAM
  • 14
    53-86849T01 RING, Retaining, CAM
    RING, Retaining, CAM
  • 15
    50-12066Q10 ROPE, STARTER
    ROPE, STARTER
  • 16
    85174A1 HANDLE ASSEMBLY, STARTER ROPE
    HANDLE ASSEMBLY, STARTER ROPE
  • 17
    24-868523 SPRING, CAM
    SPRING, CAM
  • 18
    86853T01 CAM
    CAM
  • 19
    10-826253 SCREW, CAM TO STARTER SHEAVE
    SCREW, CAM TO STARTER SHEAVE
  • 20
    426264 SUPPORT, STARTER HANDLE
    SUPPORT, STARTER HANDLE
  • 21
    10-40019111 SCREW, (M5 x 35), SUPPORT TO STARTER HOUSING
    SCREW, (M5 x 35), SUPPORT TO STARTER HOUSING
  • 23
    23-309772 SPACER, SUPPORT SCREW
    SPACER, SUPPORT SCREW
  • 24
    11-401385 NUT, (M5), SUPPORT SCREW
    NUT, (M5), SUPPORT SCREW
  • 25
    44180 BUSHING, Rope
    BUSHING, Rope
  • 26
    856154T01 SUPPORT
    SUPPORT
  • 27
    12-23538 WASHER
    WASHER
  • 28
    17-38489 PIN, Roll, LOCK LEVER
    PIN, Roll, LOCK LEVER
  • 29
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel, STARTER HOUSING ATTACHING
    SCREW, (M6 x 20) Stainless Steel, STARTER HOUSING ATTACHING
  • 29
    10-40011131 SCREW, (M6 x 35) Stainless Steel, STARTER HOUSING ATTACHING
    SCREW, (M6 x 35) Stainless Steel, STARTER HOUSING ATTACHING
