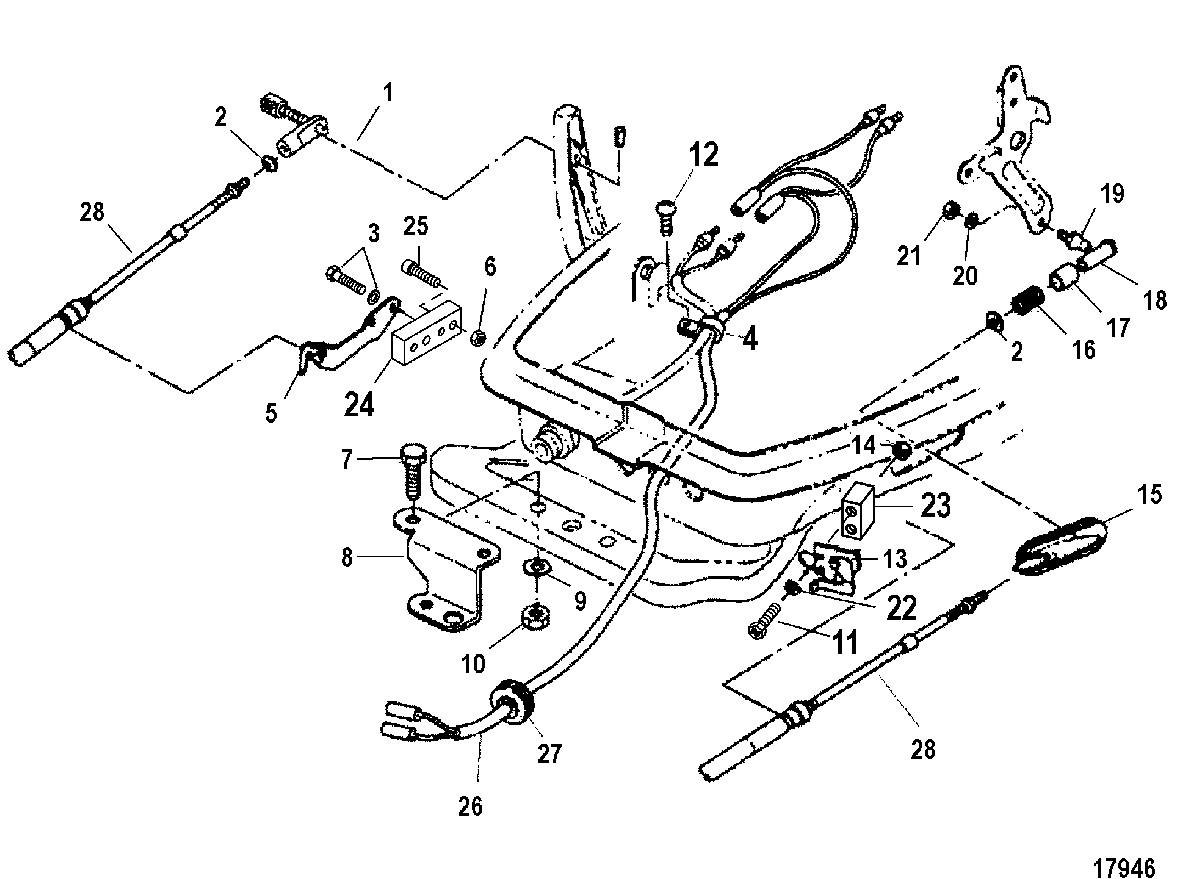

Remote Control Attaching Kit для Mercury - 25 (2 CYL.)(2-STROKE)(International) 0N055505 & Up

  • №
    Артикул
    Название
  • -
    853800A02 ATTACHING KIT, Remote Control
    SN# 0N114998 & Below
    ATTACHING KIT, Remote Control
    SN# 0N114998 & Below
  • -
    853800A02 ATTACHING KIT, Remote Control
    SN# 0N114999 & Up
    ATTACHING KIT, Remote Control
    SN# 0N114999 & Up
  • 1
    853804 CONNECTOR SHIFT KIT
    CONNECTOR SHIFT KIT
  • 2
    12-17029 WASHER
    WASHER
  • 3
    10-167051 BOLT
    BOLT
  • 4
    54-17169 CLAMP
    CLAMP
  • 5
    8538021 RETAINER, Shift Cable
    RETAINER, Shift Cable
  • 6
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 7
    10-8230428 BOLT
    BOLT
  • 8
    8538022 PLATE, Steering Hook
    PLATE, Steering Hook
  • 9
    12-16192 WASHER
    WASHER
  • 10
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 11
    10-898103A79 SCREW/WASHER KIT, Includes Reference 22
    SN# 0N114998 & Below
    SCREW/WASHER KIT, Includes Reference 22
    SN# 0N114998 & Below
  • 11
    10-898103206 SCREW
    SN# 0N114999 & Up
    SCREW
    SN# 0N114999 & Up
  • 12
    10-16827 SCREW
    SCREW
  • 13
    853802 RETAINER, Throttle Cable
    RETAINER, Throttle Cable
  • 14
    11-16081 NUT, Stainless Steel
    NUT, Stainless Steel
  • 15
    25-853803 GROMMET
    GROMMET
  • 16
    24-17028 SPRING
    SPRING
  • 17
    17027 CAP
    CAP
  • 18
    17026 BRACKET
    BRACKET
  • 19
    853801 BALL JOINT
    BALL JOINT
  • 20
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 21
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 22
    13-16079 LOCKWASHER
    LOCKWASHER
  • 23
    23-898103207 SPACER
    SN# 0N114999 & Up
    SPACER
    SN# 0N114999 & Up
  • 24
    23-898103209 SPACER
    SN# 0N114999 & Up
    SPACER
    SN# 0N114999 & Up
  • 25
    10-898103208 SCREW
    SN# 0N114999 & Up
    SCREW
    SN# 0N114999 & Up
  • 26
    84-853799A1 CABLE ASSEMBLY
    (3.9M)
    CABLE ASSEMBLY
    (3.9M)
  • 26
    84-853799A2 CABLE ASSEMBLY
    (5.9M)
    CABLE ASSEMBLY
    (5.9M)
  • 27
    25-162262 GROMMET
    GROMMET
  • 28
    NSS NOT SOLD SEPARATE, Throttle/Shift Cable
    (See Accessory Guide)
    NOT SOLD SEPARATE, Throttle/Shift Cable
    (See Accessory Guide)
