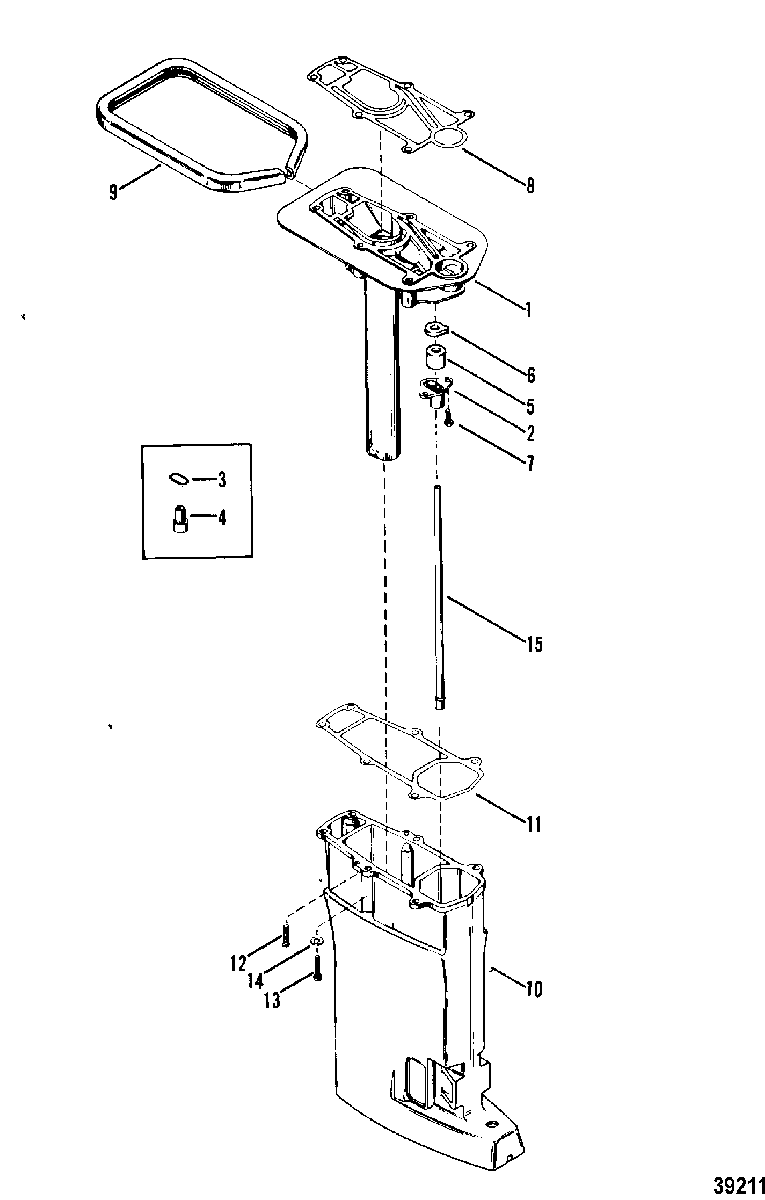

DRIVESHAFT HOUSING ASSEMBLY для Mercury - 25 (2 CYL.) 9315316 THRU 9378115

  • №
    Артикул
    Название
  • 1
    99702A7 ADAPTOR PLATE ASSEMBLY
    ADAPTOR PLATE ASSEMBLY
  • 2
    96248A1 HOUSING, WATER TUBE
    USED WITH REF. #3
    HOUSING, WATER TUBE
    USED WITH REF. #3
  • 3
    25-36390 O-RING, WATER TUBE HOUSING
    O-RING, WATER TUBE HOUSING
  • 4
    85164 SEAL, WATER TUBE
    USED WITH REF. #3
    SEAL, WATER TUBE
    USED WITH REF. #3
  • 2
    96248A1 HOUSING ASSEMBLY, WATER TUBE
    NOT USED WITH REF. #3
    HOUSING ASSEMBLY, WATER TUBE
    NOT USED WITH REF. #3
  • 5
    26-25329 SEAL, WATER TUBE
    NOT USED WITH REF. #3
    SEAL, WATER TUBE
    NOT USED WITH REF. #3
  • 6
    23-889715 SPACER, WATER TUBE
    NOT USED WITH REF. #3
    SPACER, WATER TUBE
    NOT USED WITH REF. #3
  • 7
    10-400035 SCREW, (M5 x 16), HOUSING TO ADAPTOR PLATE
    SCREW, (M5 x 16), HOUSING TO ADAPTOR PLATE
  • 8
    27-41670006 GASKET, ADAPTOR PLATE
    GASKET, ADAPTOR PLATE
  • 9
    158662 SEAL, Adaptor Plate
    SEAL, Adaptor Plate
  • 10
    1588-8747A1 HOUSING ASSEMBLY, Driveshaft
    SHORT SHAFT SN# USA-6055407/AUS-8074217/BEL-9340565/CAN-7186767 & Below
    HOUSING ASSEMBLY, Driveshaft
    SHORT SHAFT SN# USA-6055407/AUS-8074217/BEL-9340565/CAN-7186767 & Below
  • 10
    1591-8749A1 HOUSING ASSEMBLY, Driveshaft
    LONG SHAFT SN# USA-6055407/AUS-8074217/BEL-9340565/CAN-7186767 & Below
    HOUSING ASSEMBLY, Driveshaft
    LONG SHAFT SN# USA-6055407/AUS-8074217/BEL-9340565/CAN-7186767 & Below
  • 10
    1588-8747A1 HOUSING ASSEMBLY
    SHORT SHAFT SN# USA-6055408/BEL-9340566/CAN-7186768 & Up
    HOUSING ASSEMBLY
    SHORT SHAFT SN# USA-6055408/BEL-9340566/CAN-7186768 & Up
  • 10
    1591-8749A1 HOUSING ASSEMBLY
    LONG SHAFT SN# USA-6055408/BEL-9340566/CAN-7186768 & Up
    HOUSING ASSEMBLY
    LONG SHAFT SN# USA-6055408/BEL-9340566/CAN-7186768 & Up
  • 11
    27-85109 GASKET, DRIVESHAFT HOUSING
    SN# USA-6055407/AUS-8074217/BEL-9340565/CAN-7186767 & Below
    GASKET, DRIVESHAFT HOUSING
    SN# USA-6055407/AUS-8074217/BEL-9340565/CAN-7186767 & Below
  • 11
    27-433374 GASKET, DRIVESHAFT HOUSING
    SN# USA-6055408/BEL-9340566/CAN-7186768 & Up
    GASKET, DRIVESHAFT HOUSING
    SN# USA-6055408/BEL-9340566/CAN-7186768 & Up
  • 12
    10-400035 SCREW, (M5 x 16)
    SCREW, (M5 x 16)
  • 13
    10-1993870 SCREW (60MM)
    SCREW (60MM)
  • 14
    12-4002317 WASHER, DRIVESHAFT HOUSING SCREW
    WASHER, DRIVESHAFT HOUSING SCREW
  • 15
    32-85116 TUBE, Water
    SHORT SHAFT
    TUBE, Water
    SHORT SHAFT
  • 15
    32-86292 TUBE, Water
    LONG SHAFT
    TUBE, Water
    LONG SHAFT
  • -
    27-85168A80 GASKET SET
    GASKET SET
