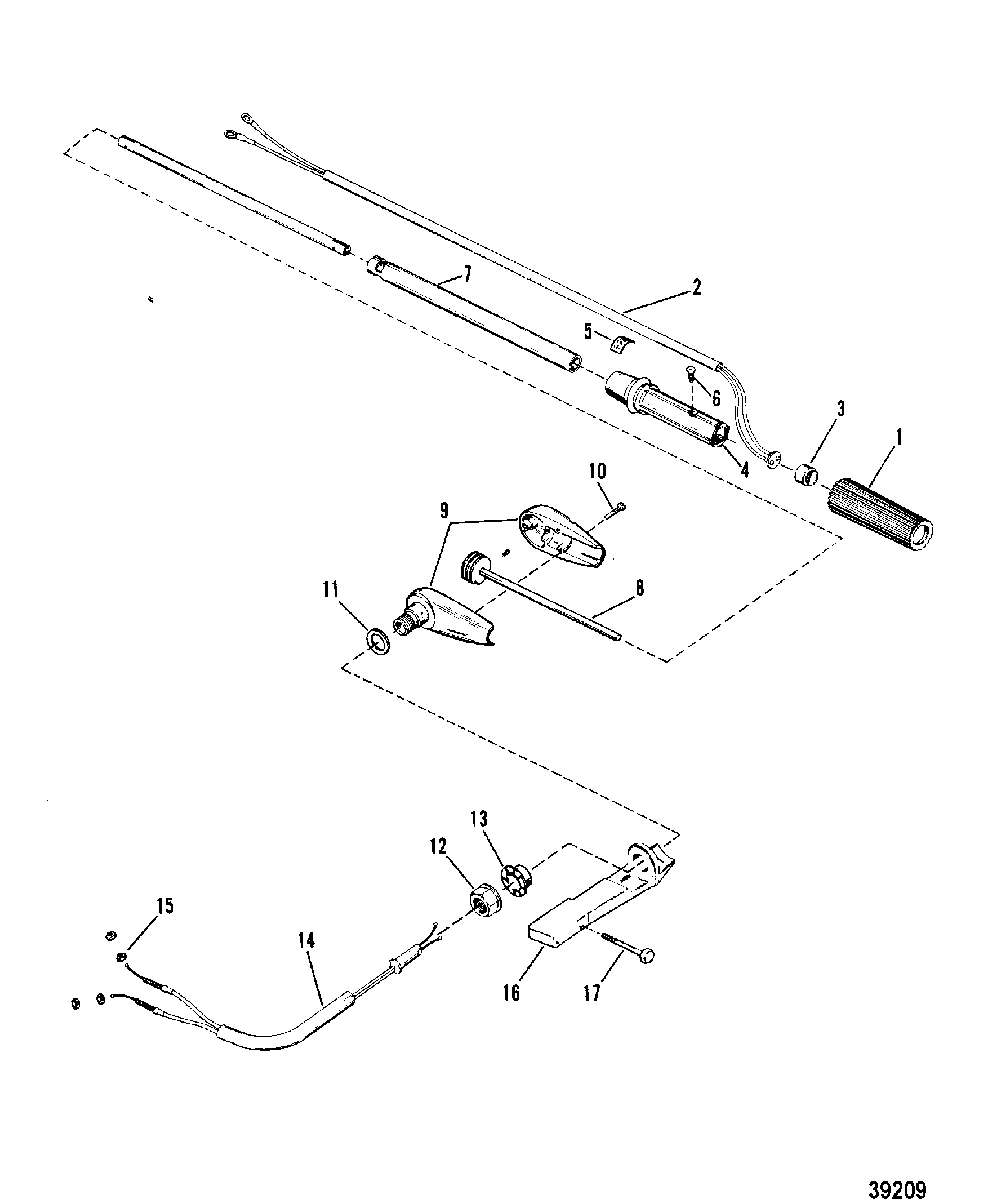

STEERING HANDLE ASSEMBLY(MANUAL) для Mercury - 25 (2 CYL.) 7166928 THRU 7207857

  • №
    Артикул
    Название
  • -
    94185A16 HANDLE ASSEMBLY, Steering
    HANDLE ASSEMBLY, Steering
  • 1
    99589003 GRIP, RUBBER
    GRIP, RUBBER
  • 2
    84-89591A5 HARNESS ASSEMBLY, STOP SWITCH
    HARNESS ASSEMBLY, STOP SWITCH
  • 3
    11099A1 BOOT ASSEMBLY, STOP SWITCH
    BOOT ASSEMBLY, STOP SWITCH
  • 4
    87-823609A10 HANDLE ASSEMBLY, THROTTLE
    HANDLE ASSEMBLY, THROTTLE
  • 5
    37-13239 DECAL, THROTTLE HANDLE
    DECAL, THROTTLE HANDLE
  • 6
    10-62568 SCREW, (#10-16 x .375), THROTTLE HANDLE
    SCREW, (#10-16 x .375), THROTTLE HANDLE
  • 7
    99333A2 TUBE ASSEMBLY, STEERING
    TUBE ASSEMBLY, STEERING
  • 8
    975501 TUBE ASSEMBLY
    SN# USA-6055407/AUS-8074217/BEL-9340565/CAN-7186767 & Below
    TUBE ASSEMBLY
    SN# USA-6055407/AUS-8074217/BEL-9340565/CAN-7186767 & Below
  • 8
    975501 TUBE ASSEMBLY
    SN# USA-6055408/BEL-9340566/CAN-7186768 & Up
    TUBE ASSEMBLY
    SN# USA-6055408/BEL-9340566/CAN-7186768 & Up
  • 9
    43447A3 BRACKEY ASSEMBLY
    BRACKEY ASSEMBLY
  • 10
    10-4005688 SCREW, (M4 x 20), BRACKET CLAMPING
    SCREW, (M4 x 20), BRACKET CLAMPING
  • 11
    12-57860 WASHER, NYLON - BRACKET
    WASHER, NYLON - BRACKET
  • 12
    11-82671327 NUT, BRACKET
    NUT, BRACKET
  • 13
    23-85973 BUSHING, BRACKET
    BUSHING, BRACKET
  • 14
    43242 CABLE, THROTTLE
    CABLE, THROTTLE
  • 15
    11-400212 NUT, (M6) Stainless Steel, THROTTLE CABLE
    NUT, (M6) Stainless Steel, THROTTLE CABLE
  • 16
    43447A3 BRACKET ASSEMBLY, STEERING
    BRACKET ASSEMBLY, STEERING
  • 17
    10-4000384 SCREW, (M10 x 80), BRACKET TO SWIVEL TUBE
    SCREW, (M10 x 80), BRACKET TO SWIVEL TUBE
