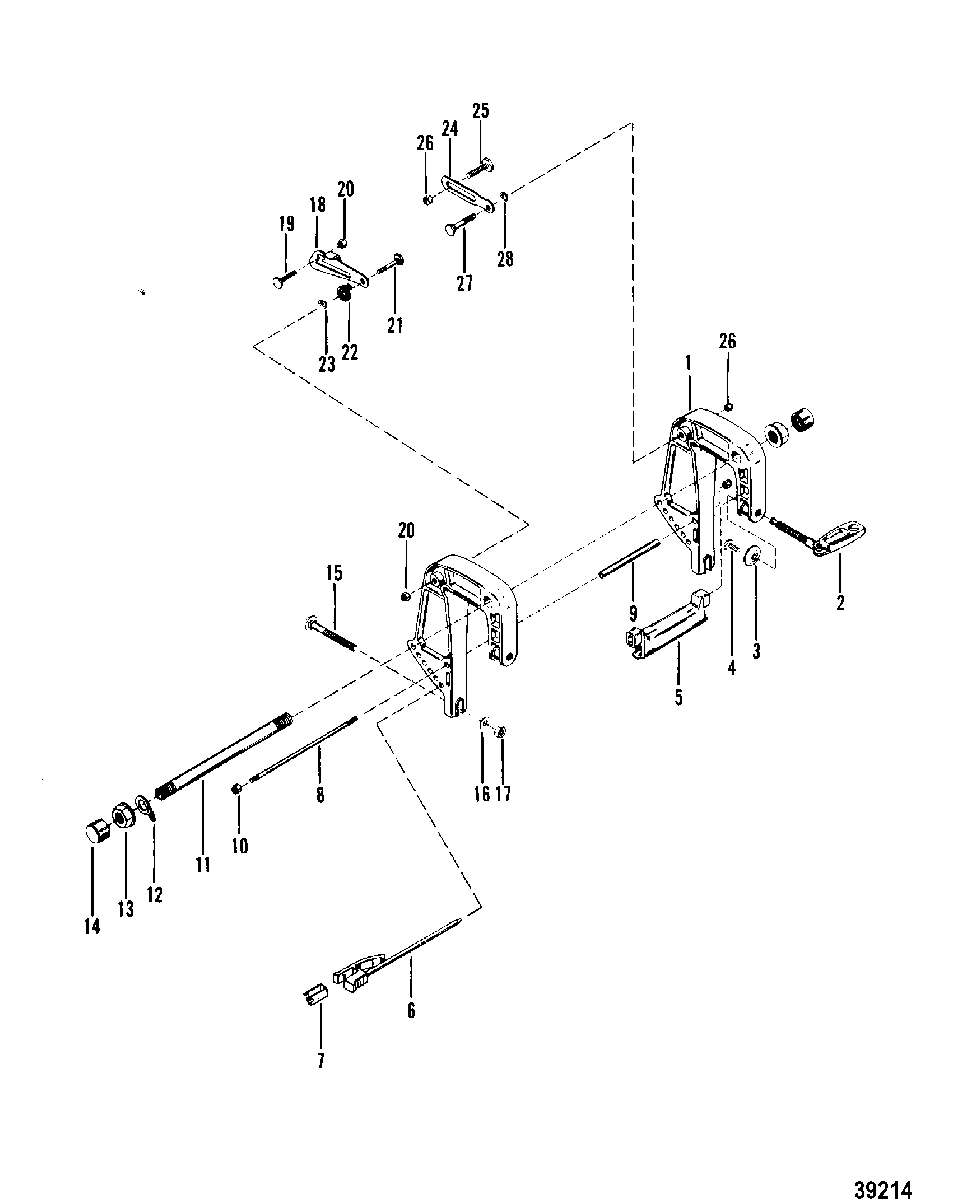

CLAMP BRACKET ASSEMBLY для Mercury - 25 (2 CYL.) 5705532 THRU 6416712
-
№АртикулНазвание
-
11497-8863A1 CLAMP BRACKET ASSEMBLYCLAMP BRACKET ASSEMBLY
-
210-92767A1 THUMB SCREW ASSEMBLY, (14 mm)THUMB SCREW ASSEMBLY, (14 mm)
-
312-818884 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
410-768042 SCREW, WASHER ATTACHINGSCREW, WASHER ATTACHING
-
585155 HANDLE, CARRYINGHANDLE, CARRYING
-
617-99929A1 PIN ASSEMBLY, Tilt
USE WITHOUT REF. #7PIN ASSEMBLY, Tilt
USE WITHOUT REF. #7 -
617-99929A1 PIN ASSEMBLY, Tilt
USED WITH REF. #7PIN ASSEMBLY, Tilt
USED WITH REF. #7 -
790884 CLIP, Spring, TILT PINCLIP, Spring, TILT PIN
-
816-85099 STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
923-85100 SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
1011-400213 NUT, (M8) Stainless Steel, CLAMP BRACKET STUDNUT, (M8) Stainless Steel, CLAMP BRACKET STUD
-
1185151 TILT TUBETILT TUBE
-
1254-8M0085928 CLIP, SAFETYCLIP, SAFETY
-
1311-93164 NUT, (.875), TILT TUBENUT, (.875), TILT TUBE
-
1453078 CAP, TILT TUBECAP, TILT TUBE
-
1510-69064 BOLT, (.312-18 x 2.750), CLAMP BRACKET TO TRANSOMBOLT, (.312-18 x 2.750), CLAMP BRACKET TO TRANSOM
-
1612-67981 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
1711-82670910 NUT, (.312-18), CLAMP BRACKET BOLTNUT, (.312-18), CLAMP BRACKET BOLT
-
1896965 LEVER, TILT STOP - PORT SIDELEVER, TILT STOP - PORT SIDE
-
1910-41433 SCREW, (.250-28 x 1.00), LEVER TO SWIVEL BRACKETSCREW, (.250-28 x 1.00), LEVER TO SWIVEL BRACKET
-
2011-826709109 NUT, (.250-28), TILT STOP LEVER SCREWNUT, (.250-28), TILT STOP LEVER SCREW
-
2110-41524 SCREW, (.250-28 x 1.75), LEVER TO CLAMP BRACKETSCREW, (.250-28 x 1.75), LEVER TO CLAMP BRACKET
-
2224-44581 SPRING, TILT STOP LEVER SCREWSPRING, TILT STOP LEVER SCREW
-
2313-31030 WAVE WASHER, TILT STOP LEVER SCREWWAVE WASHER, TILT STOP LEVER SCREW
-
2490901 STRAP, TILT STOP - STARBOARD SIDESTRAP, TILT STOP - STARBOARD SIDE
-
2510-41433 SCREW, (.250-28 x 1.00), LEVER TO SWIVEL BRACKETSCREW, (.250-28 x 1.00), LEVER TO SWIVEL BRACKET
-
2611-826709109 NUT, (.250-28), TILT STOP LEVER SCREWNUT, (.250-28), TILT STOP LEVER SCREW
-
2710-41524 SCREW, (.250-28 x 1.75), LEVER TO CLAMP BRACKETSCREW, (.250-28 x 1.75), LEVER TO CLAMP BRACKET
-
2813-31030 WAVE WASHER, TILT STOP LEVER SCREWWAVE WASHER, TILT STOP LEVER SCREW
