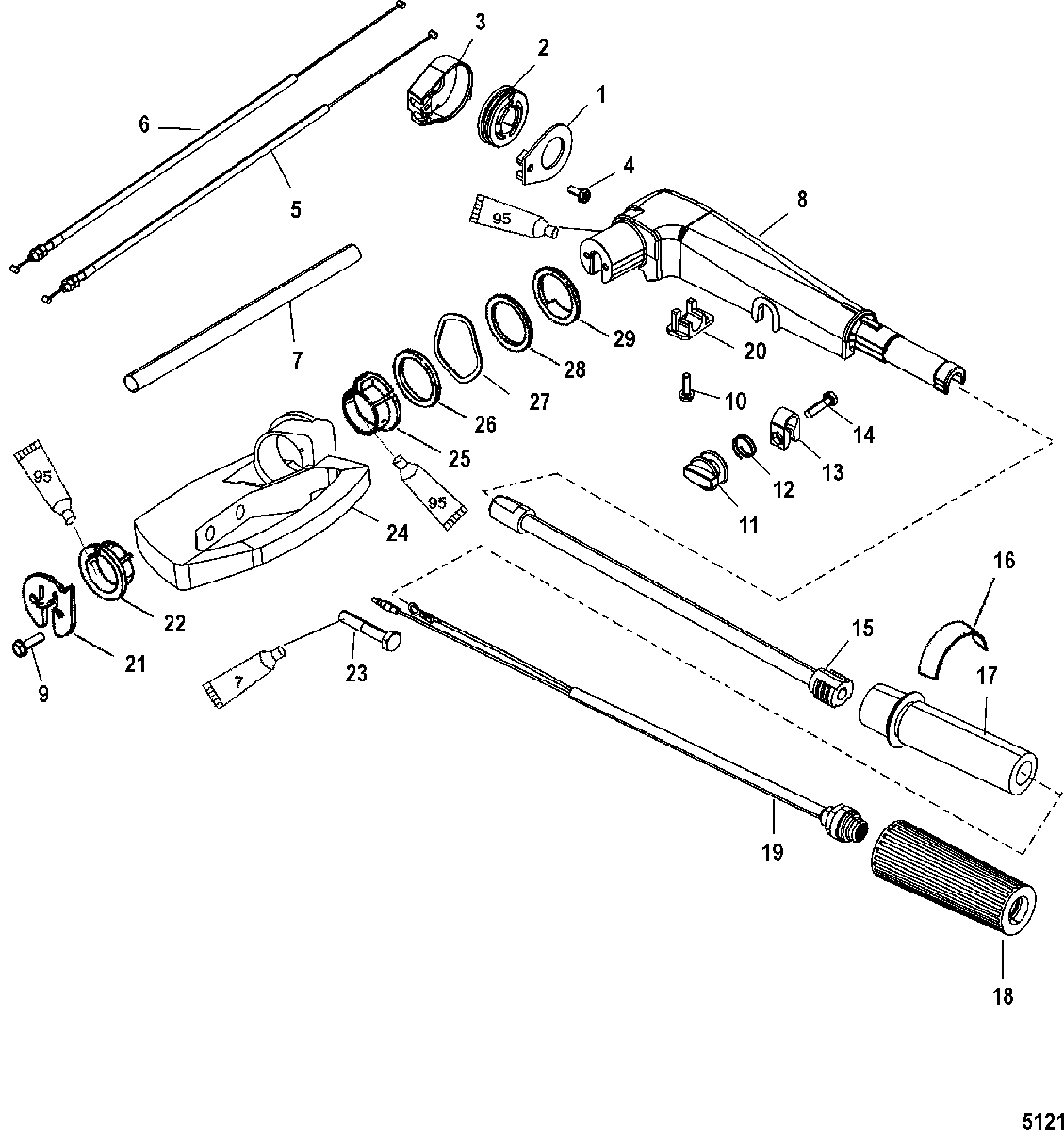

Tiller Handle Assembly для Mercury - 25 (2 CYL.) 1B000001 & Up

  • №
    Артикул
    Название
  • -
    821468T4 TILLER HANDLE
    (Black) (Tiller Handle Shift)
    TILLER HANDLE
    (Black) (Tiller Handle Shift)
  • -
    821468T2 TILLER HANDLE
    (Black) (Side Shift)
    TILLER HANDLE
    (Black) (Side Shift)
  • 1
    822148A4 COVER KIT
    (Tiller Handle Shift)
    COVER KIT
    (Tiller Handle Shift)
  • 1
    822148A2 COVER KIT
    (Side Shift)
    COVER KIT
    (Side Shift)
  • 2
    822150 PULLEY
    PULLEY
  • 3
    NSS NOT SOLD SEPARATE, Case
    NOT SOLD SEPARATE, Case
  • 4
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 5
    43242T03 CABLE, Throttle
    (Tiller Handle Shift)
    CABLE, Throttle
    (Tiller Handle Shift)
  • 5
    432426 CABLE, Throttle
    (Side Shift)
    CABLE, Throttle
    (Side Shift)
  • 6
    43242T03 CABLE, Throttle
    (Tiller Handle Shift)
    CABLE, Throttle
    (Tiller Handle Shift)
  • 6
    432426 CABLE, Throttle
    (Side Shift)
    CABLE, Throttle
    (Side Shift)
  • 7
    85-960099 SLEEVE, (12.00 Inches)
    SLEEVE, (12.00 Inches)
  • 8
    821468A66 ARM ASSEMBLY, Steering Handle
    (Black)
    ARM ASSEMBLY, Steering Handle
    (Black)
  • 9
    10-4010516 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 10
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 11
    821972T KNOB, Throttle
    KNOB, Throttle
  • 12
    24-96203 SPRING
    SPRING
  • 13
    892995 LOCK, Throttle
    LOCK, Throttle
  • 14
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 15
    821463T01 TILLER TUBE
    TILLER TUBE
  • 16
    37-8242002 DECAL
    (Tiller Handle Shift)
    DECAL
    (Tiller Handle Shift)
  • 16
    37-8242004 DECAL
    (Side Shift)
    DECAL
    (Side Shift)
  • 17
    822429 HANDLE, Throttle
    (Tiller Handle Shift)
    HANDLE, Throttle
    (Tiller Handle Shift)
  • 17
    821465 HANDLE, Throttle
    (Side Shift)
    HANDLE, Throttle
    (Side Shift)
  • 18
    99589003 GRIP
    GRIP
  • 19
    87-8M0104615 SWITCH ASSEMBLY, Stop
    (Red)
    SWITCH ASSEMBLY, Stop
    (Red)
  • 19
    87-823609A18 SWITCH ASSEMBLY, Start/Stop
    (Black)
    SWITCH ASSEMBLY, Start/Stop
    (Black)
  • 20
    822441 RETAINER
    RETAINER
  • 21
    8221471 PLATE
    PLATE
  • 22
    23-823939 BUSHING
    BUSHING
  • 23
    10-4000384 SCREW, (M10 x 80)
    SCREW, (M10 x 80)
  • 24
    822841F1 BRACKET
    (Black)
    BRACKET
    (Black)
  • 25
    23-823939 BUSHING
    BUSHING
  • 26
    12-822145 WASHER
    WASHER
  • 27
    13-826792 WAVE WASHER
    WAVE WASHER
  • 28
    12-822145 WASHER
    WASHER
  • 29
    12-822146 WASHER
    WASHER
